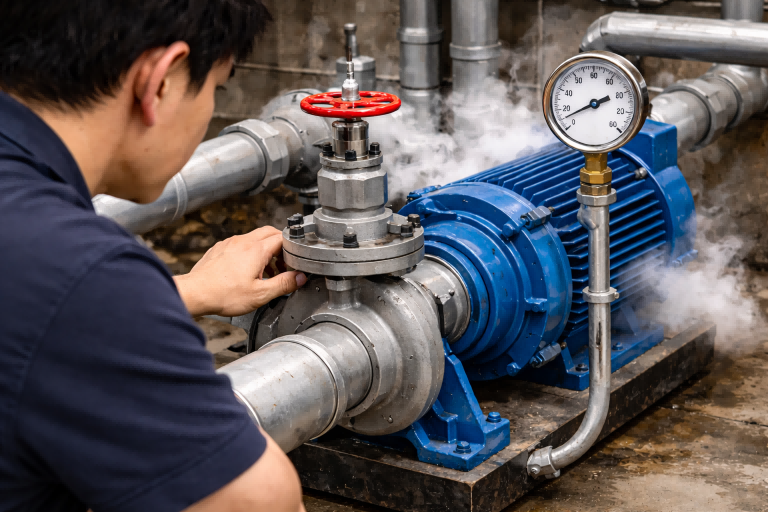

Why does a centrifugal pump reverse its direction? And what harm does this reverse rotation cause to the centrifugal pump equipment?

Centrifugal pump reversal refers to the situation where, after a centrifugal pump loses its prime mover driving force, the medium in the pipeline flows in the opposite direction due to the static pressure difference between the discharge pipeline and the suction pipeline, which in turn drives the pump rotor to rotate in the opposite direction. Essentially, the rotation is caused by the reverse driving force generated by the backflow of the medium on the pump rotor, which is an abnormal operating condition of the centrifugal pump.





• Why does the centrifugal pump reverse?



Reversed Power Phase Sequence

Just like an electric fan suddenly spinning backwards, a centrifugal pump can also reverse due to an incorrect power phase sequence. When the wiring sequence of the three-phase power supply does not match the pump's design requirements, the motor's rotation direction will be reversed. This often occurs:

During initial commissioning of a new pump

During rewiring after maintenance

During modifications to temporary power lines

Simple testing method: Briefly start the pump and immediately stop it, observing whether the impeller rotation direction matches the direction marked on the pump body.



Liquid Backflow During Shutdown

Under certain special operating conditions, pump shutdown can trigger a "water hammer effect":

High-level liquid backflow: When there is high-level liquid storage in the outlet pipeline

No check valve installed: Or the check valve is faulty and not replaced in time

Sudden system pressure change: Pressure fluctuations caused by sudden shutdown of adjacent equipment

This reversal is often accompanied by obvious water hammer noise and vibration, which will accelerate the wear of the mechanical seal over time.



Installation Design Defects
Some easily overlooked installation details can also lead to potential reverse rotation problems:

Inlet/outlet pipes reversed: A typical mistake made by beginners.

Coupling misalignment: A deviation exceeding 0.1mm can affect rotation direction.

Insecure foundation: Vibration can cause terminals to loosen.

Control system defects: Improper inverter parameter settings.

It is recommended to mark the correct rotation direction on the pump casing with a marker after each maintenance for easy daily inspection.



• The core hazards of centrifugal pump reversal to equipment

Centrifugal pumps are designed, structured, and their components are selected based on the core principle of "unidirectional rotation and forward flow." Reverse rotation will cause irreversible damage to the equipment from multiple dimensions, including mechanical structure, sealing system, and operational performance. Specific hazards include:



Mechanical structural damage, shortening equipment lifespan

1. Rotor system damage: The impeller, bushing, coupling, and other rotor components of a centrifugal pump are designed for unidirectional force application. When rotating in reverse, the direction of the fluid impact force on the impeller is completely opposite to that under normal operating conditions. This leads to rotor imbalance, generating severe vibration and impact loads, which in turn causes impeller wear, blade cracking, and bushing loosening. In severe cases, it can lead to pump shaft bending and breakage. Simultaneously, reverse rotation disrupts the rotor's dynamic balance accuracy, exacerbates vibration amplitude, further amplifies mechanical wear, and causes premature failure of important rotating components such as bearings and bushings.
2. Wear and jamming of stationary components: The flow channels of stationary components in a centrifugal pump, such as the pump casing, guide vanes, and wear rings, are designed for forward media flow. When flowing backward, the media flow direction contradicts the design direction of the flow channels, generating strong eddies and turbulence. This leads to increased erosion of the inner walls of the flow channels and a significant increase in wear. Simultaneously, the reverse-flowing media carries impurities from the pipeline, causing sedimentation within the flow channels. This results in friction and jamming between the stationary components and the rotor components, potentially leading to pump seizure and inability to start normally. Furthermore, the clearance between the impeller and the pump casing is designed for forward rotation; in reverse rotation, the clearance becomes abnormally large, exacerbating media leakage and further accelerating component wear.



Sealing system failure, causing safety and environmental hazards

The mechanical seals and packing seals of centrifugal pumps are designed for forward rotor rotation. The lubrication and cooling of the sealing surfaces rely on the forward-flowing media. When reverse rotation occurs, the reverse flow of the medium disrupts the lubrication environment of the sealing surface, causing a sharp rise in the temperature of the sealing surface, resulting in dry friction and burning. Simultaneously, the vibration generated by reverse rotation can cause the seals to loosen and deform, significantly reducing sealing performance and ultimately leading to media leakage. If the medium being transported is flammable, explosive, toxic, harmful, or corrosive, leakage can cause serious safety and environmental accidents such as fires, explosions, personnel poisoning, or environmental pollution. Even with clean water, leakage will cause a drop in system pressure, affecting the normal operation of the entire fluid transport system, while increasing water waste and equipment maintenance costs. Furthermore, some unidirectional mechanical seals and sliding bearings cannot adapt to reverse rotation conditions, directly resulting in structural damage and loss of sealing and support functions.



Deteriorating Operational Performance, Leading to a Chain Reaction of System Failures

1. Sudden Drop in Pump Efficiency: At reverse rotation speed, the centrifugal pump is completely unable to perform forward transport. The reverse flow of the medium causes the pump's head and flow rate to completely fail, preventing the system from supplying liquid normally and causing interruptions in subsequent production processes. Simultaneously, reverse rotation significantly increases internal energy loss and abnormally raises shaft power, leading to energy waste. Furthermore, the pump body temperature rises rapidly, potentially causing medium vaporization and cavitation, further damaging the pump's flow components.
2. System pressure turbulence: Backflow of the medium can cause a sudden drop in discharge pipeline pressure and an abnormal rise in suction pipeline pressure, disrupting the pressure balance of the entire fluid transport system and triggering a chain reaction of failures such as pipeline vibration, flange leakage, and valve damage. If other centrifugal pumps operate in parallel in the system, the reverse pressure generated by the backflow can affect the normal operation of these other pumps, causing multiple devices to experience abnormal operating conditions simultaneously, thus expanding the scope of the failure.



Extremely High Risk of Restarting, Potentially Damaging the Drive Unit

When a centrifugal pump is running at reverse speed, if the operator fails to notice and blindly starts the prime mover (such as the motor), the motor will be forced to start while the pump rotor is rotating in the opposite direction. At this time, the motor needs to overcome the reverse inertial torque and fluid resistance, causing the starting current to rise sharply, far exceeding the motor's rated current. This can easily lead to motor burnout and inverter tripping. Simultaneously, forced starting generates a huge impact load, transmitted to components such as the coupling and pump shaft, causing coupling breakage, pump shaft twisting, and even damage to the motor bearings, resulting in secondary damage to the equipment, increasing maintenance costs and downtime. Furthermore, starting an asynchronous motor in reverse pump mode will result in prolonged start-up time and abnormally high motor temperature, further exacerbating the risk of motor damage.



Additional Risks Under Special Operating Conditions

When the backflowing medium approaches its boiling point, it may vaporize within the pump body or the discharge-side throttling device, leading to cavitation within the pump body and exacerbating component damage. If the conveyed medium is a gas-liquid mixture, the density ratio of the medium will change significantly at the backflow speed, and the ratio of the backflow speed to the normal speed may rise to a dangerous level (proportional to the square root of the liquid-vapor density ratio), further amplifying the risk of equipment damage.



• Measures to prevent reversal



Equipment Selection: Configuring Dedicated Anti-Reverse Rotation Components

1. Installing a Mechanical Backstop: Installing a mechanical backstop on the pump shaft or coupling of the centrifugal pump is the most direct and effective anti-reverse rotation measure. The mechanical backstop uses a one-way locking structure, allowing only forward rotation of the pump shaft. When the medium flows backward, causing the pump shaft to rotate in the opposite direction, the backstop will immediately lock, preventing the pump shaft from reversing, thus completely avoiding the generation of backflow speed. When selecting a backstop, the appropriate model should be chosen based on the pump's rated speed, shaft power, and operating conditions to ensure sufficient locking torque and adaptability to the pump's operating temperature and medium characteristics. This is especially suitable for high-pressure, high-flow, and parallel-operated centrifugal pump systems.
2. Selecting a Drive Unit with Anti-Reverse Rotation Function: When selecting a motor, choose a motor with anti-reverse rotation function (such as adding a reverse braking device), or set an anti-reverse rotation protection program in the frequency converter. When reverse rotation of the pump shaft is detected, the motor power is immediately cut off or the braking device is activated to quickly prevent the pump shaft from continuing to reverse, avoiding the increase in backflow speed.



Piping Design: Install Reliable Backflow Prevention Valves

1. Install Automatic Backflow Prevention Valves: Install swing-type or slow-closing automatic backflow prevention valves near the pump body on the discharge pipeline. This is the most widely used backflow prevention measure in engineering. During normal operation, the medium pushes the valve disc open in the forward direction; when the pump stops or loses its driving force, the medium flows in the reverse direction, pushing the valve disc to close quickly, cutting off the backflow channel and preventing the pump shaft from reversing. Selection should focus on closing speed and sealing performance. Slow-closing check valves can slow down the valve disc closing speed to avoid water hammer impact; high-pressure, high-flow systems require check valves with high pressure resistance and reliable closing to prevent valve failure.
2. Optimize pipeline layout and valve configuration: Avoid layouts where the discharge pipeline is directly connected to the high-level liquid storage equipment. If this is unavoidable, a shut-off valve (such as a gate valve or ball valve) must be added to the discharge pipeline for use in conjunction with a check valve. After the centrifugal pump stops, close the shut-off valve first, then turn off the motor for double protection against backflow. In parallel operation systems, each pump's discharge pipeline must have a separate check valve and shut-off valve to prevent backflow and reverse rotation of other pumps after one pump stops. Do not use slow-closing shut-off elements to replace check valves to prevent backflow of media through the pump body.



Operation procedures: Standardize operating procedures and mitigate human error risks.

1. Strictly adhere to shutdown operating procedures: When stopping a centrifugal pump, close the discharge shut-off valve first, then stop the motor to completely cut off the backflow channel and prevent backflow from causing the pump shaft to reverse. For centrifugal pumps operating in parallel, close the discharge shut-off valve and motor of each pump in sequence when stopping to prevent backflow of media from other pumps into the stopped pump body and causing reverse rotation.
2. Blindly restarting the equipment is strictly prohibited: Before starting the centrifugal pump, check the pump shaft rotation direction to ensure there is no reverse rotation before starting the motor. If reverse rotation is detected, investigate the cause of backflow, completely cut off the backflow path, and stop the pump shaft from reversing before starting the pump. Forced starting could damage the equipment.
3. Strengthen operational inspections: During daily operation, focus on monitoring parameters such as pump rotation direction, vibration, pressure, and temperature. Promptly detect any abnormal signs of backflow or pump shaft reversal, and take preventative measures to prevent the malfunction from escalating.



Maintenance and Management: Regular inspection and maintenance to ensure equipment reliability.

1. Regularly inspect anti-reverse components: Regularly inspect and maintain anti-reverse components such as mechanical backflow preventers and check valves. Check the locking performance of the backflow preventer, the tightness and flexibility of the check valve disc closure, promptly clean impurities from the check valve disc, and replace worn or aged seals and parts to prevent component failure leading to backflow.
2. Regularly calibrate protection devices: Regularly calibrate the inverter's anti-reverse rotation protection program and the motor's reverse braking device to ensure their sensitivity and reliability, enabling timely detection and prevention of pump shaft reverse rotation; regularly check the sealing performance and switching flexibility of pipeline valves, and promptly repair or replace damaged valves.
3. Establish equipment operation records: Record the centrifugal pump's operating parameters, fault conditions, and maintenance records, with a focus on recording the maintenance status of the anti-reverse rotation components. By analyzing operating data, predict the aging trend of the anti-reverse rotation components and carry out maintenance in advance to avoid the risk of reverse rotation speed from the source.
