Back pressure in centrifugal pump systems and its impact on pump performance

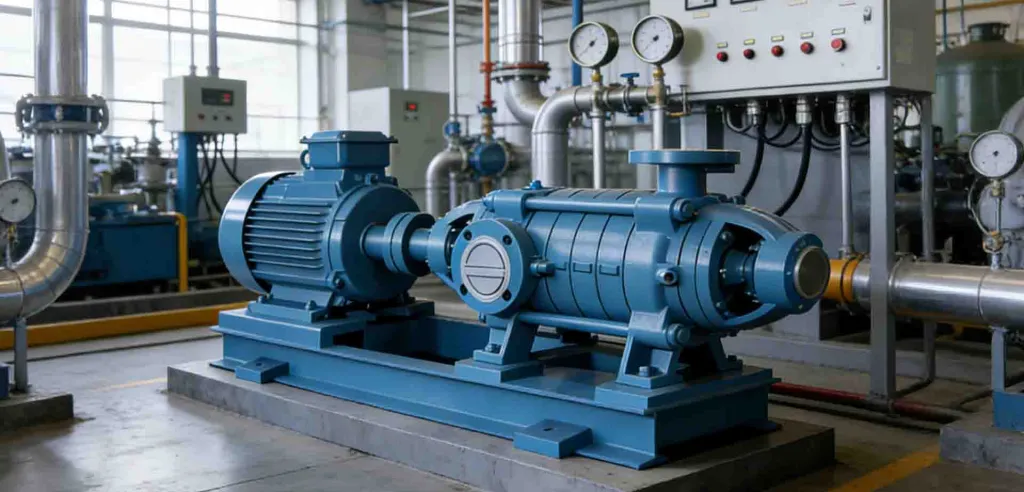

Centrifugal pumps, as core equipment for industrial fluid transportation, are widely used in petroleum, chemical, power, and water supply industries. In actual operation, the pump's outlet pressure (back pressure) is one of the key parameters affecting its performance and lifespan. Excessively high or low back pressure can lead to decreased pump efficiency, increased vibration, and even equipment damage. Therefore, understanding the concept of back pressure and its impact on centrifugal pumps is crucial for optimizing system design and improving operational reliability.





• Definition of back pressure in centrifugal pump system

Back pressure refers to the reverse pressure generated by fluid at the pump outlet or in the downstream pipeline due to flow resistance. Essentially, it is the reaction force of the system on the pump discharge end. The magnitude of back pressure depends on factors such as system flow resistance, liquid level, and valve opening. Its mathematical expression can be given as:



Where:

Psystem is the system static pressure (e.g., the pressure of a closed container);

ρgh is the static pressure caused by the liquid level;

ΔPfriction is the pipe friction loss.



• Causes of Back Pressure in Centrifugal Pumps

There are many causes of back pressure in centrifugal pumps, the main factors including:

1. Pipeline or valve resistance: Due to factors such as pipe length, diameter, and bends, the flow of fluid is impeded to varying degrees, thus causing back pressure. Simultaneously, when a valve is not fully open, it also creates resistance to fluid flow, leading to back pressure.

2. Liquid level changes: When the liquid level changes, the pump's outlet pressure also changes accordingly, resulting in back pressure. For example, when a water pump is pumping water, changes in the liquid level affect the pump's outlet pressure, generating back pressure.

3. Pump operating parameters: If the pump's outlet pressure and back pressure reach equilibrium, the pump's flow rate will decrease, thus affecting the pump's stability.



• The effect of back pressure on centrifugal pumps



Impact on Flow Rate and Head

Increased Back Pressure: The pump's outlet pressure increases, the flow rate decreases, and the pump's operating point shifts to the left along the performance curve. If the back pressure is too high, the pump may operate in the low flow range, even approaching the shut-off point (zero flow), at which point internal backflow intensifies, leading to decreased efficiency.

Decreased Back Pressure: The pump's outlet pressure decreases, the flow rate increases, and the operating point shifts to the right. If the back pressure is too low (e.g., insufficient inlet pressure or fully open outlet valve), the pump may operate beyond its design flow rate, increasing the risk of cavitation.



Impact on Power and Efficiency

Power Consumption: At constant speed, an increase in back pressure typically leads to a slight increase in shaft power (especially in the low flow range), but if the flow rate decreases significantly, power may decrease (depending on the pump's characteristic curve).

Efficiency Variation: Centrifugal pumps are most efficient near their rated operating point. Back pressure deviating from the design value (too high or too low) will cause the pump to deviate from its optimal efficiency point (BEP), resulting in increased energy consumption.



Impact on Mechanical Reliability

High Back Pressure Risks:

a. Increased load on bearings and mechanical seals, shortening their service life;

b. Potential for excessive stress on the pump casing and piping, leading to leaks or structural damage.

Low Back Pressure Risks:

a. Cavitation: When the outlet pressure is too low, the local pressure inside the pump drops below the saturated vapor pressure, forming and collapsing bubbles, causing erosion damage to the impeller and pump casing;

b. Axial Force Imbalance: In some centrifugal pumps (such as single-stage single-suction pumps), the axial thrust increases under low back pressure, affecting bearing life.



Back pressure optimization and control methods

To ensure efficient and stable operation of centrifugal pumps, back pressure must be properly controlled:

1. Valve regulation: Adjusting the outlet valve opening changes the system resistance, but prolonged throttling operation should be avoided (increasing energy consumption).
2. Variable frequency control: Using a frequency converter to adjust the pump speed matches the back pressure to the flow rate, improving energy efficiency.
3. Bypass design: Installing a bypass (return line) in the high-pressure system prevents the pump from operating at low flow rates.
4. Cavitation protection: Ensuring sufficient inlet pressure (e.g., increasing NPSHA) prevents cavitation under low back pressure conditions.

5. Properly configure piping: Optimize pipe length, diameter, and angle to minimize obstruction of fluid flow by pipes and valves, thereby reducing back pressure.

6. Select appropriate valves: To reduce back pressure, select suitable valves and pipe fittings to ensure smooth fluid flow.

7. Adjust operating parameters: In actual operation, appropriately adjust pump operating parameters to ensure the pump operates under suitable conditions, thus reducing back pressure.

8. Regular inspection and cleaning: Regularly inspect and clean the pump body and piping to reduce the impact of impurities on fluid flow, thereby reducing back pressure.



Back pressure in a centrifugal pump system directly affects its flow rate, head, efficiency, and mechanical reliability. Proper back pressure management can extend pump life and reduce energy consumption. In practical engineering, operating parameters should be optimized based on the pump's performance curve and system characteristics to ensure stable pump operation within its high-efficiency range. For high or low back pressure conditions, appropriate measures (such as frequency converter regulation and cavitation protection) are necessary to improve system reliability.
