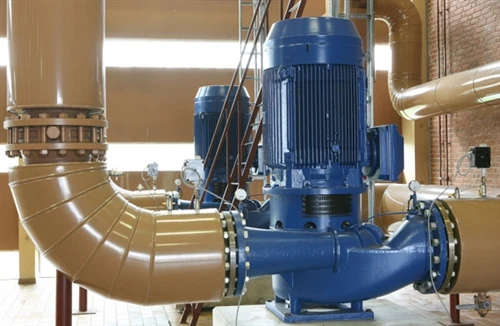

How Pipe Strain Affects Centrifugal Pump Performance, Alignment and Seal Life

Proper piping installation is an essential part of reliable centrifugal pump operation. In many industrial systems, excessive pump vibration, coupling damage, bearing wear, and mechanical seal failure are not caused by the pump itself, but by forces transferred from incorrectly installed or supported piping.

This condition is commonly known as pipe strain or piping stress.

Pipe strain occurs when connected piping exerts excessive forces or moments on the pump nozzles or casing. It can distort the pump casing, change shaft alignment, increase vibration, and significantly shorten mechanical seal life.

Understanding the relationship between piping and pump performance is therefore essential when installing and maintaining industrial centrifugal pumps.





1. What Is Pipe Strain?

Pipe strain is the force or stress transferred from the piping system to the pump because the pipe is incorrectly aligned, supported, or allowed to move.

Normally, the piping system should support its own weight and accommodate thermal movement independently of the pump.

Problems occur when the pipe:

• Is forced into position during installation
• Is inadequately supported
• Expands because of temperature changes
• Sags under its own weight
• Is incorrectly anchored or guided
• Uses flange bolts to pull misaligned pipes together

The pump should not be used to compensate for incorrectly positioned piping.

A simple rule is:

The piping should fit the pump-not the pump be forced to fit the piping.

Improper piping installation can introduce constant external loads into the pump casing and nozzles.



2. What Causes Pipe Strain?

Several common installation and operating conditions can create excessive pipe stress.

Improper Installation

During installation, workers may use flange bolts to force two misaligned flanges together. Although the connection may appear acceptable, significant residual stress can remain in the piping and pump.

Inadequate Pipe Support

Long pipe runs require suitable hangers, supports, guides, or anchors. Without adequate support, the weight of the pipe and fluid can be transferred to the pump.

Thermal Expansion

Pipelines carrying hot water, boiler feedwater, hydrocarbons, or other hot process fluids expand and contract with temperature changes.

If this movement is not properly accommodated, thermal forces can be transmitted to the pump.

Incorrect Piping Alignment

A pipe that does not naturally align with the pump flange may exert continuous pulling, pushing, or twisting forces after connection.



3. How Pipe Strain Affects Pump Alignment

One of the most serious consequences of pipe strain is loss of pump and motor alignment.

A pump and motor may be precisely aligned before the piping is connected. However, tightening the pipe flanges can move the pump casing or baseplate and change the shaft centerline.

This can create:

Parallel misalignment

Angular misalignment

Coupling overload

Bearing loading

Increased vibration

In severe cases, pipe strain can even distort the baseplate, making stable alignment difficult to maintain.

This is why final shaft alignment should be verified after the connected piping has been installed and properly supported.



4. Pipe Strain and Pump Vibration

Misalignment caused by piping stress often leads to increased vibration.

The typical chain of failure is:

Pipe strain → Casing deformation → Shaft misalignment → Vibration → Bearing and seal damage

However, vibration is not always caused by mechanical alignment problems alone. Cavitation, hydraulic instability, rotor imbalance, bearing defects, and operation outside the recommended range should also be considered.

Therefore, excessive vibration should be diagnosed systematically rather than assuming that pipe strain is always the only cause.



5. How Pipe Strain Shortens Mechanical Seal Life

Mechanical seals depend on controlled contact between highly finished sealing faces and a very thin fluid film.

When the pump shaft experiences excessive movement, deflection, or vibration, the seal faces may no longer operate under stable conditions.

Possible results include:

Uneven seal-face wear

Increased friction and heat

O-ring movement or wear

Seal leakage

Damage to the shaft or sleeve

Premature seal replacement

Pipe strain can therefore create a failure chain in which a piping problem eventually appears as a mechanical seal problem.

It is important to remember that repeatedly replacing a mechanical seal without correcting the underlying vibration, alignment, or piping problem may only provide a temporary solution.



6. How to Identify Possible Pipe Strain

Several field symptoms may indicate excessive piping stress.

Difficult Flange Connection

If the pipe flanges do not naturally line up and significant force is required to install the bolts, the piping should be checked before final assembly.

Alignment Changes After Piping

If pump-motor alignment changes significantly after tightening the pipe connections, external piping forces may be present.

High Vibration After Startup

Unexpected vibration immediately after commissioning can indicate alignment problems, pipe strain, cavitation, or other installation issues.

Repeated Seal or Bearing Failure

If the same pump repeatedly experiences mechanical seal or bearing failures, the entire installation should be inspected rather than replacing components repeatedly.

Visible Pipe Movement or Sagging

Pipe deformation, excessive support spacing, or thermal movement can also indicate problems in the piping system.



7. Best Practices for Preventing Pipe Strain

Preventing pipe strain during installation is much more effective than correcting it after pump failure.

7.1 Align the Pump and Piping Separately

First establish the correct pump and motor position. Then install the piping so that it naturally aligns with the pump nozzles.

Do not move the pump by forcing the piping into position.

7.2 Provide Independent Pipe Support

The suction and discharge pipelines should have adequate independent support.

The pipe support system should carry the weight of:

Pipe

Valves

Fittings

Fluid

without transferring excessive load to the pump.

7.3 Allow for Thermal Movement

For hot-fluid applications, thermal expansion should be considered during piping design.

Suitable expansion loops, guides, anchors, or flexible connections may be required depending on the system.

7.4 Use Flexible Connections Correctly

Flexible connectors can help accommodate limited movement and reduce vibration transmission where properly specified.

However, they should not be used to compensate for poor pipe support or forced alignment.

7.5 Recheck Alignment After Piping Installation

Final alignment should be checked after piping installation and support adjustment.

This simple step can identify piping-induced movement before the pump enters long-term service.



8. Pipe Strain Check During Commissioning

A practical installation check is to compare shaft alignment before and after connecting the piping.

The general procedure is:

1. Align the pump and motor.

2. Record the initial alignment readings.

3. Connect the suction and discharge piping without forcing the flanges.

4. Tighten the piping connections according to the applicable procedure.

5. Verify that all pipe supports are correctly installed.

6. Recheck pump-motor alignment.

If the alignment changes noticeably after the piping is connected, investigate the piping system for excessive external loads.

This approach is particularly useful during commissioning of large industrial centrifugal pumps.



9. How to Reduce Pump Vibration and Extend Seal Life

A reliable centrifugal pump installation should address several factors together:

Correct Pump Selection

The pump should be selected according to actual flow, head, fluid properties, temperature, and operating conditions.

Stable Foundation

The foundation and baseplate should provide sufficient rigidity and support.

Accurate Alignment

Pump and motor alignment should meet the manufacturer's requirements.

Stress-Free Piping

Connected piping should be correctly aligned, adequately supported, and designed for thermal movement.

Suitable Operating Conditions

Avoid prolonged operation outside the pump's recommended operating range.

Regular Monitoring

Monitor vibration, bearing temperature, seal leakage, pressure, flow, and other key parameters to identify abnormal trends early.



Pipe strain is an often-overlooked cause of centrifugal pump problems. Excessive forces from poorly aligned, unsupported, or thermally constrained piping can affect pump alignment, increase vibration, and shorten the service life of mechanical seals and bearings.

The most effective prevention strategy is simple:

Proper Foundation + Accurate Alignment + Independent Pipe Support + Controlled Thermal Expansion + Stress-Free Piping

A pump should never be forced into position by the connected pipeline.

Correct installation protects the pump, reduces vibration, extends mechanical seal life, and helps ensure reliable long-term operation.
