Vertical Stainless Steel Pump
Head(H): 10~160m
Pressure: 0.1MPa~1.6MPa(1Bar~16Bar)
Power: 1.1~132kw
Liquid Temperature: -20°C~150°C(-4°F-302°F)
Material: Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, Etc
Description
Technical Parameters

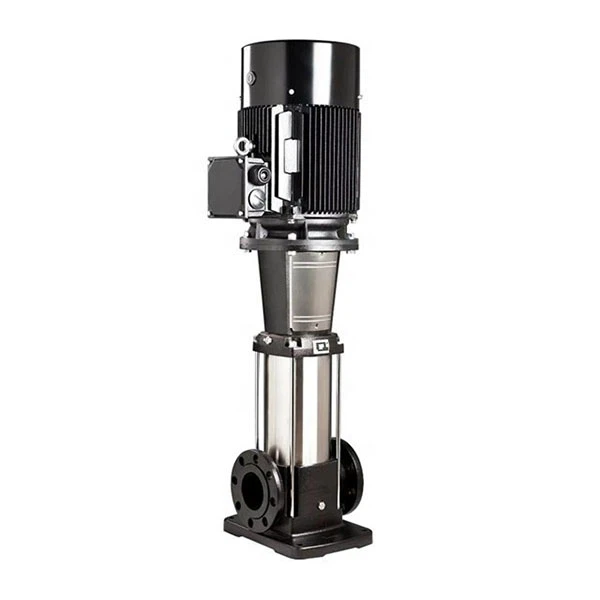

Vertical Stainless Steel Pump
A vertical stainless steel pump is a type of centrifugal pump that is designed for use in various industrial applications. It features a vertical configuration, meaning its motor is located on the top of the pump and connected to the impeller via a long shaft. The pump housing, impellers, and other wetted components are made of high-quality stainless steel. They can handle high temperatures and pressures, making them ideal for use in chemical processing, petrochemical, and pharmaceutical industries. These pumps are also commonly used in water supply systems, wastewater treatment plants, and industrial cooling towers.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Multistage Pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 1.1~132kw |
| Caliber: | ≤150mm |
| Flow | 1.4~160m³/h |
| Head | 10~160m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Structure diagram
Product Features
The vertical stainless steel pump's impeller, guide vanes, and stages are all made of stamped stainless steel, resulting in a smooth flow path, high head, high efficiency, corrosion resistance, long operating time, and prevention of secondary pollution.
The inlet and outlet of the vertical stainless steel pump are located on the same side. It can be installed in pipelines, is compact, and occupies little space.
The impeller rotates at higher speeds, resulting in lower energy consumption and generating greater pressure at every point.
These pumps have lower operating costs than other pumps, thus achieving maximum industrial efficiency.
They are aesthetically pleasing, compact, highly efficient, easy to maintain, and equipped with periodically replaceable sacrificial wear-resistant parts.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: vertical stainless steel pump, China vertical stainless steel pump manufacturers
Product parameters
| Flow Rate(Q): | 1.4~160m³/h |
| Head(H): | 10~160m |
| Pressure: | 0.1MPa~1.6MPa(1Bar~16Bar) |
| Power: | 1.1~132kw |
| Liquid Temperature: | -20°C~150°C(-4°F-302°F) |
| Material: | Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, Etc |
| Application: | Suitable for the pressurization or circulation of cold and hot water in high-rise buildings, deep mines, fire fighting facilities or liquid similar to them. |
