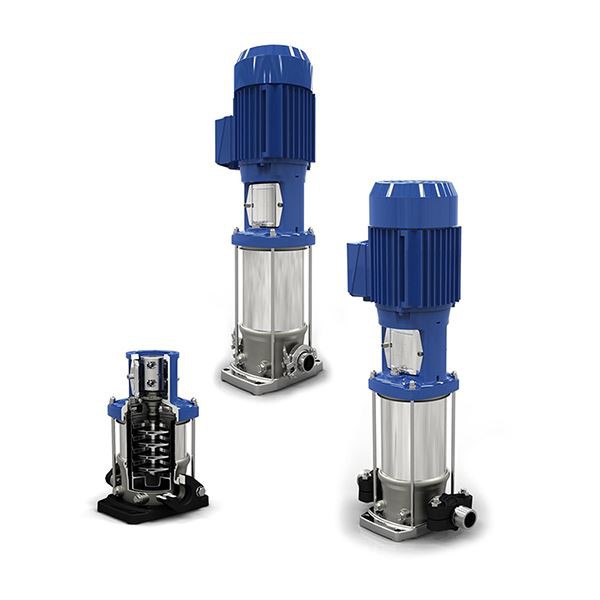

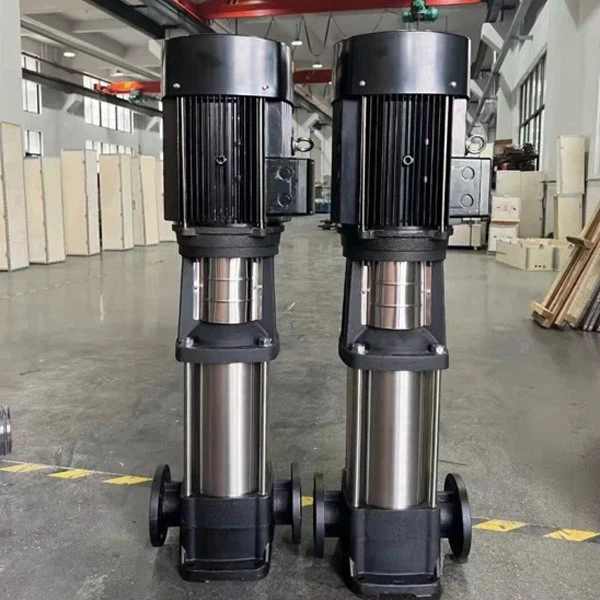

Stainless Steel Vertical Multistage Pump
Head(H): 1~160m
Outlet Size: ≤150mm
Power: 1.1~132kw
Medium temperature: -20°C~120C (explanation required when above 80°C)
Material: cast iron/ductile iron/cast steel/stainless steel, etc.
Description
Technical Parameters
Stainless Steel Vertical Multistage Pump
The stainless steel vertical multistage pump is a vertical single-suction multistage segmented centrifugal pump. It can be used to transport clean water without solid particles below 80℃ or liquids with physical and chemical properties similar to clean water. It is mainly used for domestic water supply and municipal engineering in high-rise buildings, water supply and drainage in industrial and mining enterprises, and boiler water supply.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Multistage Pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 1.1-132kw |
| Outlet Size | ≤150mm |
| Flow | 1.4-160m³/ h |
| Head | 10-160m |
| Material | cast iron/ductile iron/cast steel/stainless steel, etc. |
Products Video
Application Scenario:
WATER SUPPLY AND PRESSURE BOOSTING
- Pressure boosting in buildings, hotels, and residential complexes
- Pressure booster stations, supply of water networks
- Pressure boosting for industrial water supply
IRRIGATION AND AGRICULTURE
- Greenhouses
- Sprinkler irrigation
- Field irrigation (flooding)
WATER TREATMENT
- Water softeners and de-mineralization Reverse Osmosis systems
- Distillation systems
- Filtration
- Ultra-filtration systems
Product Features
This series of pumps features an attractive appearance, compact structure, high efficiency, and ease of maintenance.
Main components such as the impeller, guide vanes, and stages are made of stainless steel through stamping, resulting in smooth flow channels, high head, high efficiency, corrosion resistance, long operating time, and prevention of secondary pollution.
Bearings and mechanical seals are from well-known brands, ensuring high reliability.
Inlet and outlet connections can be made via threaded connections, flange connections, or pre-installed compression fittings, facilitating easy connection.
Inlet and outlet are located on the same side. It can be installed in pipelines, offering advantages such as high pressure and a small footprint.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: stainless steel vertical multistage pump, China stainless steel vertical multistage pump manufacturers
Product parameters
|
Flow Rate(Q): |
1.4~160m³/h |
|
Head(H): |
1~160m |
|
Outlet Size: |
≤150mm |
| Power: | 1.1~132kw |
| Medium temperature: | -20°C~120C (explanation required when above 80°C) |
| Material: | cast iron/ductile iron/cast steel/stainless steel, etc. |
| Application: | Suitable for pressurization or circulation of hot and cold water or similar liquids in high-rise buildings, deep mines, fire-fighting facilities, etc. |
