Vertical Inline Multistage Centrifugal Pump
Head(H): 10~160m
Pressure: 0.1MPa~1.6MPa(1Bar~16Bar)
Power: 1.1~132kw
Liquid Temperature: -20°C~150°C(-4°F-302°F)
Material: Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, Etc
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of vertical inline multistage centrifugal pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable vertical inline multistage centrifugal pump at competitive price from our factory.

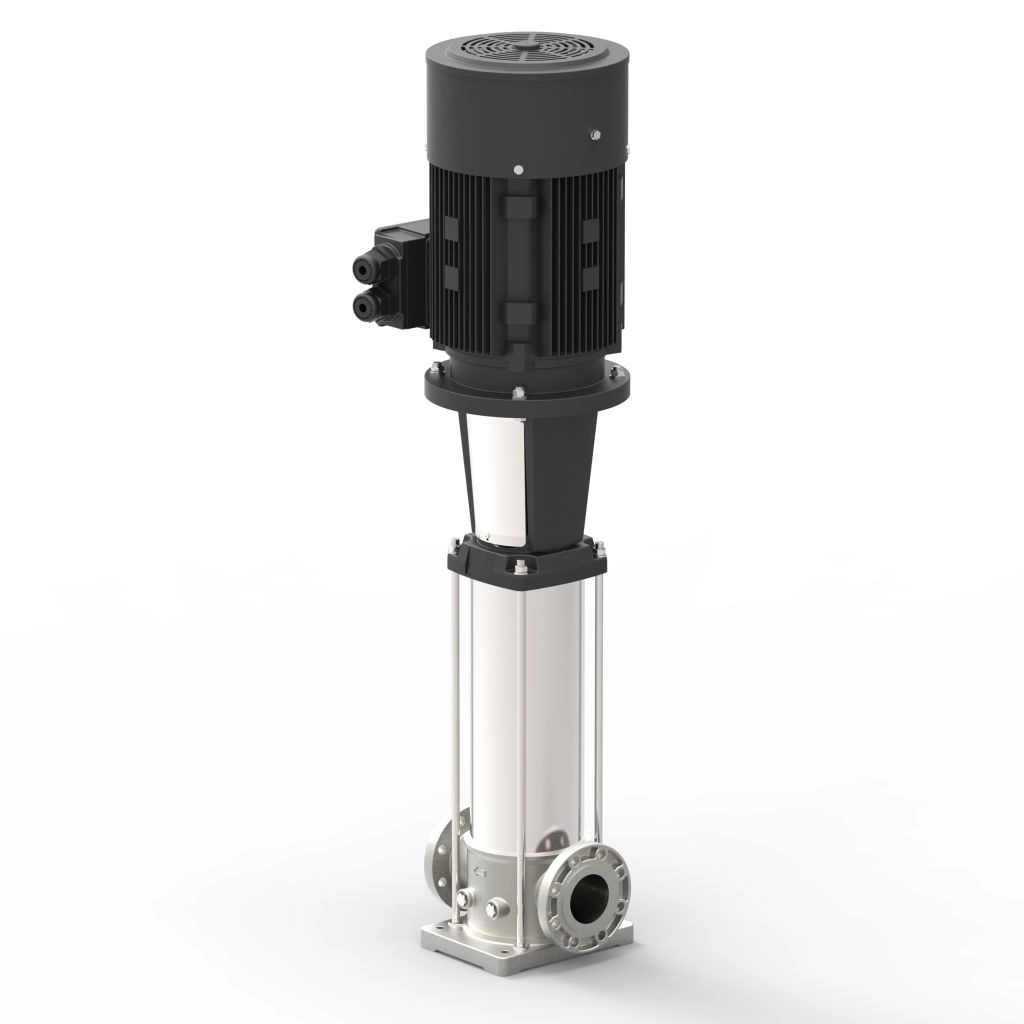

Vertical Inline Multistage Centrifugal Pump
The HNYB vertical inline multistage centrifugal pump is designed for applications requiring high pressure, stable flow, and compact installation. It features a vertical, multi-impeller configuration that delivers staged pressure boosting while maintaining superior hydraulic efficiency.
Its in-line design aligns the suction and discharge ports on the same pipeline, saving installation space and simplifying system integration. Compared to traditional horizontal pumps, this vertical in-line multistage pump offers a space-saving solution for pressure boosting, water supply, industrial circulation, and process applications.
The HNYB pump is widely used in water treatment plants, industrial utilities, HVAC systems, boiler feed applications, building water supply, and irrigation systems.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Multistage Pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 1.1~132kw |
| Caliber: | ≤150mm |
| Flow | 1.4~160m³/h |
| Head | 10~160m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Structure diagram
Application Scenario:
Water Supply: Water filtration, liquid delivery to water plants, main pipeline pressurization, and high-rise building pressurization.
Industrial Applications: Pressurization, process water systems, cleaning systems, high-pressure cleaning systems, fire protection systems, industrial liquid transportation, HVAC, boiler feedwater applications, condensate systems.
Water Treatment: Ultrafiltration systems, reverse osmosis systems, distillation systems, separators, and swimming pools.
Irrigation Methods: Farmland irrigation, sprinkler irrigation, and drip irrigation.
Product Features
Vertical Inline Design: The suction and discharge ports are arranged in the same line, allowing direct installation into pipeline systems.
Compact structure: The compact design features a very small footprint, saving significant floor space, while the in-line connection simplifies installation.
High Efficiency Hydraulic Design: Optimized impeller and guide vane design improves hydraulic efficiency and reduces energy consumption.
It employs a high-quality mechanical seal, which is wear-resistant, leak-free, has a long service life, and a low failure rate, thereby reducing operating and maintenance costs.
This pump features a unique hydraulic component design that provides excellent flow performance and reduces operating noise.
The impeller, guide vanes, and other major components are made of stainless steel through stamping, resulting in a smooth flow channel, high head, high efficiency, corrosion resistance, long operating time, and prevention of secondary pollution.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: vertical inline multistage centrifugal pump, China vertical inline multistage centrifugal pump manufacturers
Product parameters
| Flow Rate(Q): | 1.4~160m³/h |
| Head(H): | 10~160m |
| Pressure: | 0.1MPa~1.6MPa(1Bar~16Bar) |
| Power: | 1.1~132kw |
| Liquid Temperature: | -20°C~150°C(-4°F-302°F) |
| Material: | Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, Etc |
| Application: | Suitable for the pressurization or circulation of cold and hot water in high-rise buildings, deep mines, fire fighting facilities or liquid similar to them. |
