Cummins Diesel Engine Horizontal Multistage Pump
provide reliable high-pressure water transfer for mining, firefighting, emergency drainage, irrigation and industrial water supply applications.
Custom solutions available.
Description
Technical Parameters
Cummins Diesel Engine Horizontal Multistage Pump
The HNYB Cummins diesel engine horizontal multistage centrifugal pump is a complete high-pressure pumping solution engineered for applications where electrical power is unavailable or unreliable.
Driven by an original Cummins diesel engine and coupled with a high-efficiency horizontal multistage centrifugal pump, the unit delivers stable flow rates and exceptional discharge pressure for demanding industrial environments.
The system is mounted on a heavy-duty steel skid or trailer and can be customized according to project requirements, ensuring reliable operation in remote locations and emergency situations.
Compared with conventional electric pumps, diesel-driven multistage pumps offer superior mobility, independent power supply and rapid deployment capabilities.
Product Parameter
| Flow Rate | 10 – 1200 m³/h |
|---|---|
| Head | 100 – 1800 m |
| Pump Speed | 1450 – 2980 rpm |
| Power Range | 50 – 1200 HP |
| Liquid Type | Clean Water / Slightly Contaminated Water |
| Temperature | 0°C – 80°C |
| Starting Method | Electric Start |
| Installation | Skid Mounted / Trailer Mounted |
Products Video
Key Features:
- Powered by genuine Cummins diesel engine
- High head multistage centrifugal pump design
- Suitable for continuous operation
- Independent power source
- Rapid start-up capability
- Excellent fuel efficiency
- Heavy-duty industrial construction
- Automatic control system available
- Trailer-mounted options available
- Global spare parts support
Why Choose Cummins Diesel Power?
Global Reliability
Cummins engines are trusted worldwide for industrial, mining and infrastructure projects.
Fuel Efficiency
Optimized fuel consumption reduces operating costs during continuous operation.
Easy Maintenance
Global spare parts availability ensures convenient maintenance and service support.
Excellent Starting Performance
Reliable operation under high temperature, low temperature and remote site conditions.
Structural features
Application scenarios
Emergency Flood Control
Emergency drainage during flooding and natural disasters
Mine Dewatering
Underground and open-pit mine water removal
Fire Fighting Systems
High-pressure water supply for firefighting projects
Industrial Water Transfer
Long-distance high-pressure water transportation
Agricultural Irrigation
Large-scale irrigation and water distribution systems
Municipal Water Supply
Backup water supply for cities and communities
Main Components
- Cummins Diesel Engine
- Horizontal Multistage Centrifugal Pump
- Heavy-Duty Steel Base Frame
- Flexible Coupling System
- Control Panel
- Fuel Tank
- Battery Starting System
- Cooling System
- Inlet and Outlet Piping
Our latest projects
Mining Water Transfer Project
Diesel driven multistage pump delivering high-pressure water for mine drainage operations.
Agricultural Irrigation System
Trailer-mounted diesel multistage pump supplying irrigation water in remote farming areas.
Emergency Flood Control
Rapid deployment diesel pump units for flood drainage and emergency water removal.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FQA
Q: What is the maximum head?
A: Up to 1800 meters depending on configuration.
Q: Can the pump run continuously?
A: Yes. It is designed for continuous industrial operation.
Q: Is a trailer-mounted version available?
A: Yes. Mobile trailer-mounted pump packages are available.
Q: Can you customize the flow and head?
A: Yes. Each pump unit can be customized according to project requirements.
Q: Can the unit work without electricity?
A: Yes. The diesel engine provides independent power, making it ideal for remote locations.
Q: Do you provide spare parts?
A: Yes. We provide spare parts and technical support worldwide.
Hot Tags: cummins diesel engine horizontal multistage pump, China cummins diesel engine horizontal multistage pump manufacturers

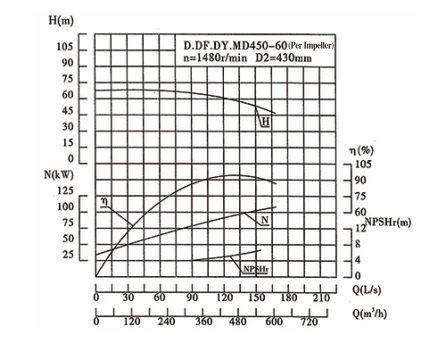

| Series | Flow(Q) | Head H (m) |
Rotating Speed n (r/min) |
Efficiency η (%) |
Shaft Power N (kW) |
Equipped With Motor | NPSHr (m) |
Diameter Of Impeller D (mm) |
Pump Weight (kg) |
Motor Weight (kg) |
||
| m³/h | L/s | Power (kW) |
Model | |||||||||
| 2 | 335 | 93.1 | 130 | 72 | 164.7 | 250 | Y3554-4 (IP23/6KV) |
4.1 | 1500 | 1820 | ||
| 450 | 125 | 120 | 79 | 186.1 | 5.2 | |||||||
| 500 | 138.9 | 113 | 78 | 197.3 | 6.3 | |||||||
| 3 | 335 | 93.1 | 195 | 72 | 247.1 | 355 | Y4001-4 (IP23/6KV) |
4.1 | 1750 | 2480 | ||
| 450 | 125 | 180 | 79 | 279.2 | 5.2 | |||||||
| 500 | 138.9 | 171 | 78 | 296.0 | 6.3 | |||||||
| 4 | 335 | 93.1 | 260 | 72 | 329.5 | 500 | Y4004-4 (IP23/6KV) |
4.1 | 2000 | 2730 | ||
| 450 | 125 | 240 | 79 | 372.2 | 5.2 | |||||||
| 500 | 138.9 | 228 | 78 | 394.7 | 6.3 | |||||||
| 5 | 335 | 93.1 | 325 | 72 | 411.8 | 630 | Y4501-4 (IP23/6KV) |
4.1 | 2250 | 3550 | ||
| 450 | 125 | 300 | 79 | 465.4 | 5.2 | |||||||
| 500 | 138.9 | 285 | 78 | 493.4 | 6.3 | |||||||
| 6 | 335 | 93.1 | 390 | 1480 | 72 | 494.2 | 710 | Y4502-4 (IP23/6KV) |
4.1 | φ430 | 2500 | 3670 |
| 450 | 125 | 360 | 79 | 558.3 | 5.2 | |||||||
| 500 | 138.9 | 342 | 78 | 592.0 | 6.3 | |||||||
| 7 | 335 | 93.1 | 455 | 72 | 576.5 | 800 | Y4503-4 (IP23/6KV |
4.1 | 2750 | 3930 | ||
| 450 | 125 | 420 | 79 | 651.5 | 5.2 | |||||||
| 500 | 138.9 | 399 | 78 | 690.7 | 6.3 | |||||||
| 8 | 335 | 93.1 | 520 | 72 | 658.9 | 900 | Y4504-4 (IP23/6KV) |
4.1 | 3000 | 3960 | ||
| 450 | 125 | 480 | 79 | 744.4 | 5.2 | |||||||
| 500 | 138.9 | 456 | 78 | 789.4 | 6.3 | |||||||
| 9 | 335 | 93.1 | 585 | 72 | 741.2 | 1000 | Y5001-4 (IP23/6KV) |
4.1 | 3250 | 4660 | ||
| 450 | 125 | 540 | 79 | 837.5 | 5.2 | |||||||
| 500 | 138.9 | 513 | 78 | 888.0 | 6.3 | |||||||
| 10 | 335 | 93.1 | 650 | 72 | 823.6 | 1120 | Y5002-4 (IP23/6KV) |
4.1 | 3500 | 4830 | ||
| 450 | 125 | 600 | 79 | 930.8 | 5.2 | |||||||
| 500 | 138.9 | 570 | 78 | 995.1 | 6.3 | |||||||
