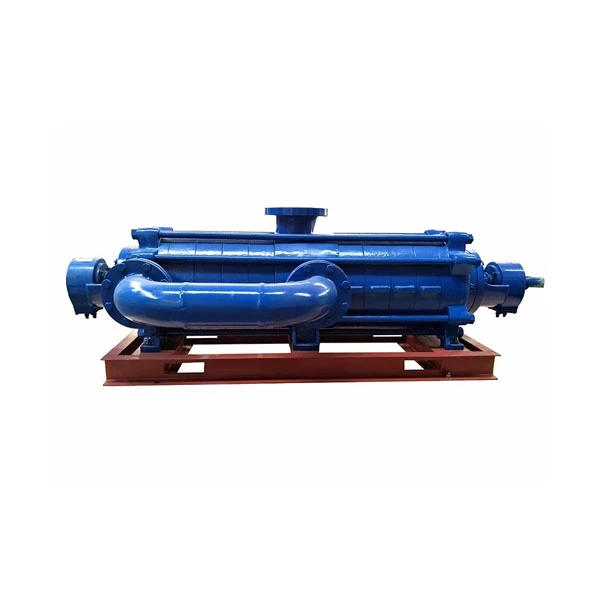

Opposed Impeller Pump
requiring excellent axial force balance and long-term reliability.
Featuring back-to-back impeller arrangement, high efficiency and stable operation for boiler feed,
mining and industrial water systems.
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of opposed impeller pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable opposed impeller pump at competitive price from our factory.
opposed impeller pump
The HNYB opposed impeller pump is an advanced multistage centrifugal pump featuring an opposed (back-to-back) impeller design. The impellers are mounted symmetrically or in opposite directions on the same or different shafts, working together to pressurize and transport fluids. This design reduces axial thrust and improves operational reliability.
Unlike traditional multistage pumps that require a balancing disc or drum to compensate for axial forces, the opposed-flow impeller design naturally balances hydraulic forces through the reverse arrangement of the impellers. This eliminates the need for traditional balancing discs or drums, thereby improving efficiency, reducing wear, and extending service life.
This structure reduces internal losses, increases efficiency, and extends maintenance intervals, making it suitable for demanding applications such as boiler feedwater systems, industrial facilities, mine water supply, and high-pressure water transmission projects.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Diesel engine or electric motor |
| Brand Name | HNYB |
| Structure | Multistage pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 3-1600kw |
| Outlet Size | ≤300mm |
| Flow | 3.7-1350m³/ h |
| Head | 50-1800m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Application Scenario:
- Power plants
- Agricultural irrigation and drainage
- Petroleum industry
- Building systems
- Water treatment and pressurization
- Mining
- Chemicals
- Heating, ventilation and air conditioning
- Marine
- Firefighting
- Food and beverage industry
- Steel industry
Products Description
Opposed Impeller Design for Axial Force Balance: The back-to-back opposed impeller configuration balances axial hydraulic forces, reducing stress on bearings and improving pump reliability during continuous operation.
Balance disc-less structure: Compared to ordinary multistage pumps, eliminating the balance disc reduces energy loss caused by the balancing device. This reduces maintenance, improves efficiency, and extends operating cycles.
High hydraulic performance: Optimized impeller design reduces hydraulic losses, resulting in a stable efficiency curve and energy-saving operation.
why choose us
Sound production process
The company has strong strength,advanced production equipment,perfect detection means and agroup of high-quality talents. Weproduce a wide range of products with complete specifications.
Widely serve users
lt is widely used in coal, mining,petroleum, chemical industry.textile, urban construction, papermaking, metallurgy, farmlandirrigation and other industries
Complete quality management system
The company keeps forging ahead.innovating and developing, hasformed a complete set of qualitymanagement system in long-termpractice, and is equipped with atechnically competent installation commissioning and after-sales service team to relieve your worries.
Strong manufacturing capacity
At present, the company produces 26 series, 280 varieties and more than 900 specifications of pump products.
Certifications
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTORY OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: opposed impeller pump, China opposed impeller pump manufacturers
| Flow range: | 3.7~1350m³/h |
| Head: | 50~1800m |
| Caliber: | ≤300mm |
| Power: | 3~1600kw |
| Medium temperature: | -20℃~150℃ (need to explain if it is higher than 80℃) |
| Material: | Cast iron/ductile iron/cast steel/stainless steel, etc. |
| Scope of application: | Transporting clean water or special liquids that do not contain or contain a small amount of solid particles, mainly used for industrial, mining and urban water supply and drainage, pressurized water supply for high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance water delivery, heating, bathrooms and other hot and cold water circulation pressurization and equipment supporting etc. |
