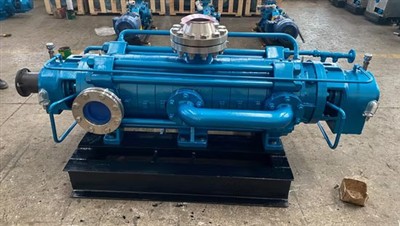

Self-balancing multistage centrifugal pump water pressure adjustment operation plan and professional optimization suggestions

As a core conveying equipment in industrial settings (such as mining, chemical, and municipal applications), the stability of water pressure directly affects the operating efficiency and service life of self-balancing multistage centrifugal pumps. Excessive pressure can lead to seal leaks and excessive pump body pressure, while insufficient pressure will fail to meet the conveying requirements of the operating conditions. For purchasing, technical personnel, and design institutes, mastering scientific water pressure adjustment methods can effectively reduce downtime and lower maintenance costs, which is crucial for the efficient operation of the equipment.

Before making any adjustments, two core prerequisites must be clear: First, familiarize yourself with the structure of the pump you are operating, paying particular attention to the pressure monitoring interface, inlet and outlet valves, return pipelines, and other adjustment-related components. In particular, note that the pressure balancing device (such as the self-balancing structure or balance disc) of a multi-stage pump is a core component pre-installed at the factory and should not be disassembled or modified without authorization, otherwise it may cause serious problems such as axial force imbalance and pump vibration. Second, ensure that the pump is in a fault-free operating state, check that the impeller, seals, bearings, and other key components are free from wear, and ensure that the power supply voltage is stable to avoid safety accidents caused by debugging with faults.

• Practical solution for water pressure adjustment of self-balancing multistage centrifugal pumps

Valve Adjustment Method (Most Common):

First, fully close the outlet valve, then slowly open the inlet valve to full open. Start the pump unit and wait for it to run smoothly. Gradually increase the outlet valve opening while observing the pressure gauge reading until the required pressure is reached.

Speed ​​Adjustment Method (Suitable for Variable Frequency Pumps):

Adjust the motor speed through the variable frequency control cabinet. The speed is proportional to the water pressure (conforming to the similarity law of centrifugal pumps). Small adjustments are required to avoid sudden speed changes that could cause pressure fluctuations.

Backflow Adjustment Method (Special Conditions):

If the pump body is equipped with a backflow pipeline, the outlet pressure can be indirectly adjusted by adjusting the backflow valve opening to divert a portion of the medium back to the inlet end. This method is suitable for scenarios requiring stable low pressure.

• Precautions during debugging

1. Observe the pump unit's operating status throughout the entire process. If excessive vibration (>4.5mm/s), abnormal noise, or seal leakage occurs, immediately stop the machine and investigate.
2. Pressure adjustments should be made gradually, with each adjustment not exceeding 0.05MPa. Further adjustments should only be made after the value stabilizes.
3. The pressure value must conform to the design requirements of the operating conditions. It is recommended to reserve a 5% to 10% safety margin to avoid overloading and to cope with fluctuations in operating conditions.
4. Wear protective equipment during commissioning. It is strictly forbidden to disassemble any parts while the pump body is under pressure.

To ensure long-term stable water pressure, regular maintenance is essential: It is recommended to check the pressure gauge reading weekly and calibrate the pressure sensor accuracy monthly; clean and lubricate the inlet and outlet valves and return pipelines quarterly to prevent scaling or blockage that could affect regulation; and, based on the pump's operating time, regularly replace seals and check impeller wear-these details can extend the pump's lifespan by at least 50%.

Finally, water pressure commissioning of a self-balancing multistage centrifugal pump requires basic fluid mechanics knowledge and equipment operation experience. In complex operating conditions (such as high temperature and pressure, or highly corrosive media), it is recommended to contact the manufacturer's technical personnel for on-site guidance to avoid equipment damage or safety risks due to improper operation.
