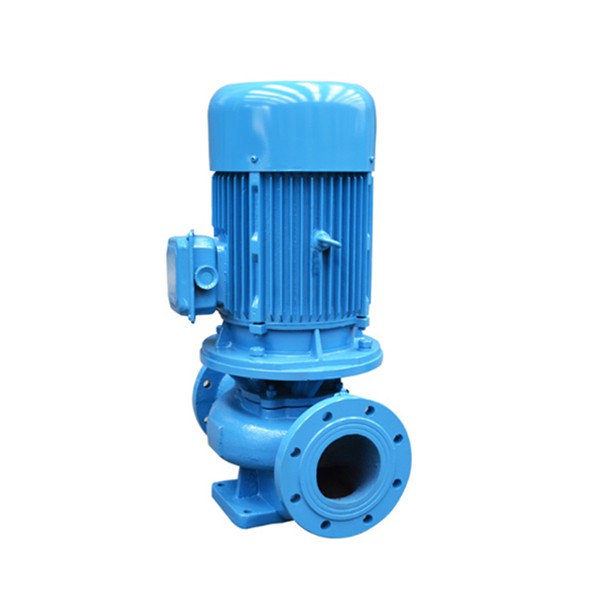

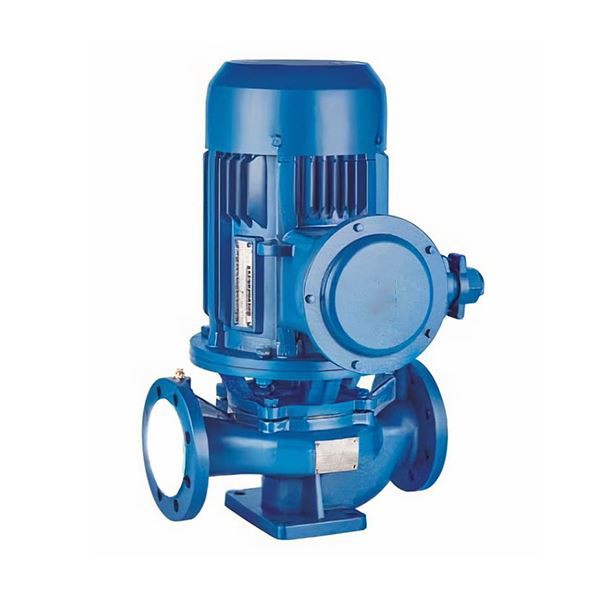

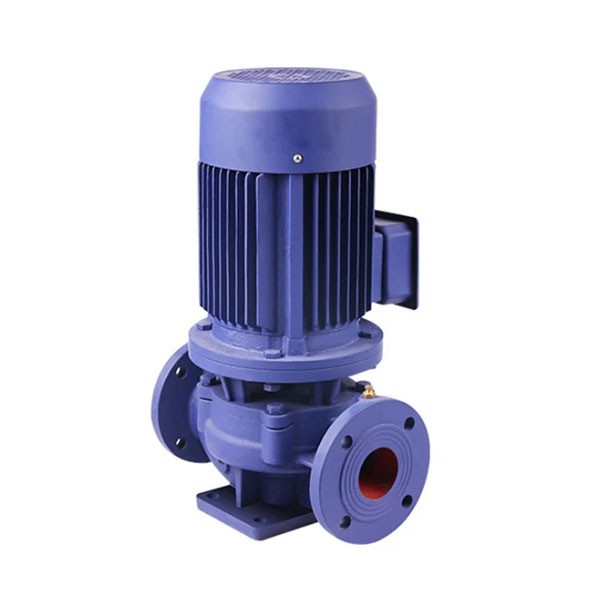

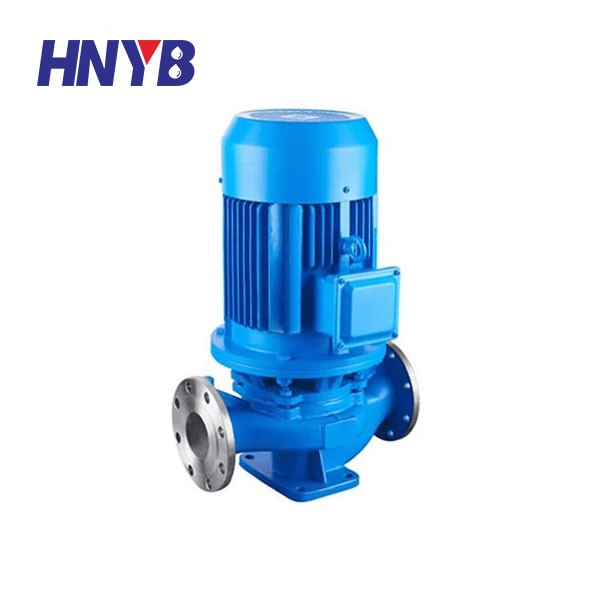

Vertical Inline Centrifugal Pump

Vertical inline centrifugal pump is a centrifugal pump designed in the vertical direction, this pump configuration saves space and is easy to install, suitable for applications with limited ground space. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire fighting pressurization, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water circulation pressurization, and equipment matching. It is used for conveying clean water with temperature T<80℃ and other liquids with physical and chemical properties similar to clean water.

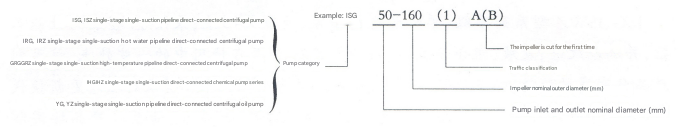

• For example: ISG50-160(1)A(B)

• 50-Pump inlet and outlet diameters are both 50mm
• 160-Impeller nominal outer diameter is 160mm
• 1-Flow classification
• A-Impeller outer diameter cutting code
• B- Impeller passes through the second cut



Application Scenario:



• Cold and Hot Water Circulation Pump
• Municipal water supply
• HVAC and Cooling Tower
• Booster pump
• Pool and fountain water transfer



1. The pump is a vertical structure with the same inlet and outlet diameters, located on the same center line. It can be installed in the pipeline like a valve. It has a compact and beautiful appearance, a small footprint, and low construction investment. If a protective cover is added, it can be placed outdoors.
2. The impeller is directly installed on the extended shaft of the motor, with a short axial dimension and compact structure. The bearings of the pump and the motor are reasonably configured, which can effectively balance the radial and axial loads generated when the pump is running, thereby ensuring the smooth operation of the pump. Small vibration and low noise.
3. The shaft seal adopts a mechanical seal or mechanical seal combination, imported titanium alloy sealing ring, medium-sized high-temperature resistant mechanical seal, and hard alloy material, wear-resistant seal, which can effectively extend the service life of the mechanical seal.
4. Easy installation and maintenance, no need to disassemble the pipeline system, just unscrew the pump joint seat nut to pull out all the rotor components.
5. According to the use requirements, that is, different flow and head, the pump can be operated in series or parallel.
6. According to the requirements of pipeline layout, the pump can be installed vertically or horizontally.
