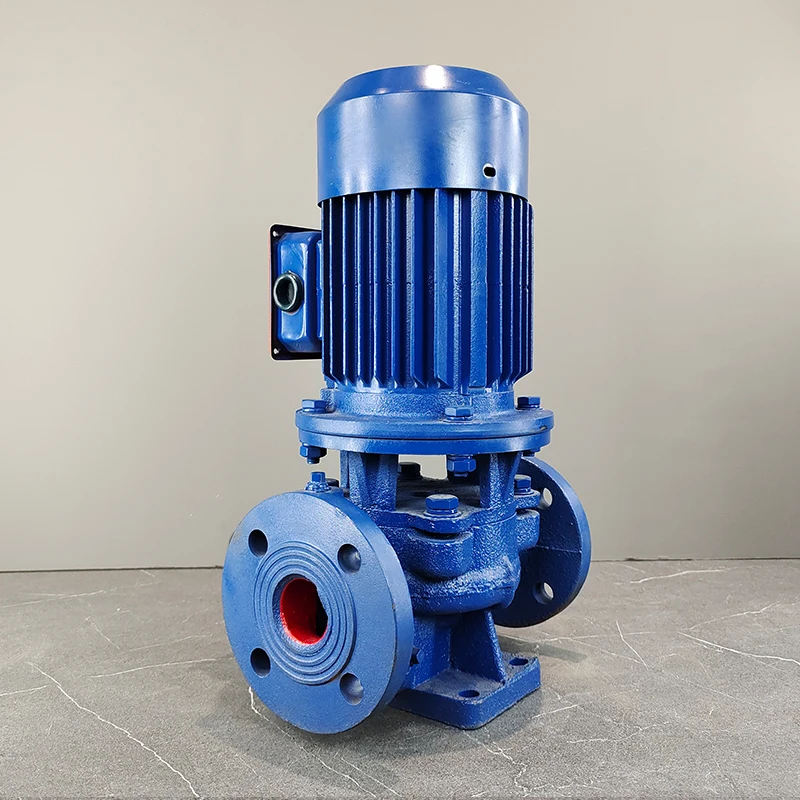

Vertical pipeline booster pump
Head: 9-80m
Caliber: ≤500mm
Power: selected based on the viscosity and specific gravity of the liquid
Medium temperature: -20 ℃~260 ℃ (temperature to be specified)
Material: Cast iron/ductile iron/cast steel/stainless steel, etc.
Description
Technical Parameters
Vertical pipeline booster pump
Vertical inline booster pumps are a reliable and efficient solution designed to meet the diverse application needs of water supply, HVAC, and industrial systems. As a vertical centrifugal pump, it offers a wide range of models to meet various flow rate and head requirements, suitable for conveying pure water and other liquids with similar physical properties. It is primarily used in industrial and urban water supply and drainage, high-rise building booster water supply, garden irrigation, fire fighting booster, long-distance water supply, heating systems, bathroom hot and cold water circulation booster, and equipment integration applications.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Electric water pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 3-160kw |
| Outlet Size | ≤500mm |
| Flow | 1.1-1450m³/ h |
| Head | 9-80m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Application Scenario:
- Building water supply
- Chemical industry
- Chemical and petrochemical industry
- Pharmaceutical industry
- Food and beverage industry
- Cooling systems
Product Features
Compact structure, small size, and aesthetically pleasing appearance: The lower center of the vertical structure coincides with the center of the pump foot, enhancing operational stability and duration.
Easy installation: With the inlet and outlet on the same centerline and having identical openings, this pump can be installed directly in any location on the pipeline, just like a valve. The motor is equipped with a rain cover, allowing for outdoor operation. The pump is equipped with mounting feet for stable installation.
Leak-free: The shaft uses a carbide alloy wear-resistant material for the mechanical seal, solving the problem of severe leakage in centrifugal pump filling seals, extending service life, and ensuring a clean and tidy operating environment.
Easy maintenance: Inspection and maintenance do not require disassembling the pipeline; simply remove the pump.The pump cover contains nuts, the motor, and drive components.
Multiple installation options: Depending on the operating conditions at the work site, the pump can be installed vertically, horizontally, or in other ways. Furthermore, depending on flow rate and stroke requirements, it can be installed in parallel and/or in series to increase the required flow rate and stroke.
01
High efficiency and energy saving
Adhering to specialized production, we have uniquemethods for product model selection, mold making, and the casting process of hydraulic components.
02
Advanced process equipment
In order to ensure the assembly performance ofthe productsour company imported advanced parts cleaning equipment from abroad, and each part wascarefully deaned before the final assembly.
03
Unique structure
Install an O-shaped seayears ofg on the mating surface ofthe balance ringand the pump to prevent high-pressure water from entering the balance chamber, reduce balanceplate wear, and extend product service life.
04
Reasonable selection of materials
The material of the balance plate and balance ring can bemade of surfacing carbide, alloy steel or QT600Mn, alloy ductile cast iron according to different userneeds.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: Vertical pipeline booster pump, China Vertical pipeline booster pump manufacturers
Product parameters
Flow rate: 1.1-1450m³/ h
Lift: 9-80m
Caliber: ≤ 500mm
Power: 3-160kw
Medium temperature: -20 ℃~120 ℃ (above 80 ℃, please specify)
Material: cast iron/ductile iron/cast steel/stainless steel, etc
