Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of end suction pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable end suction pump at competitive price from our factory.
Products Description

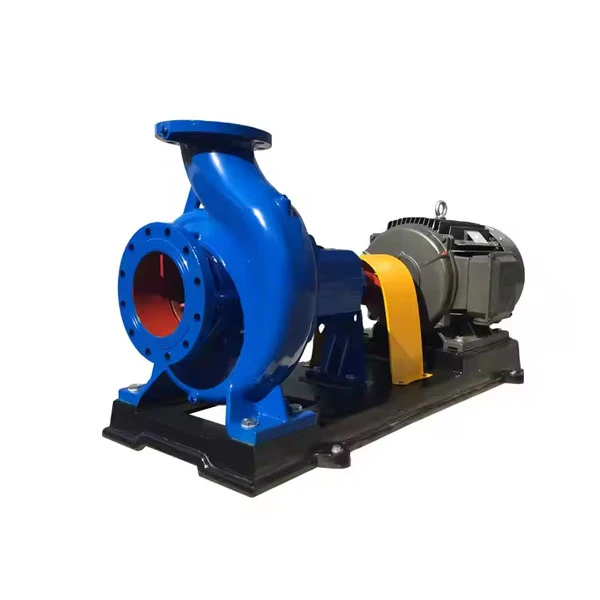

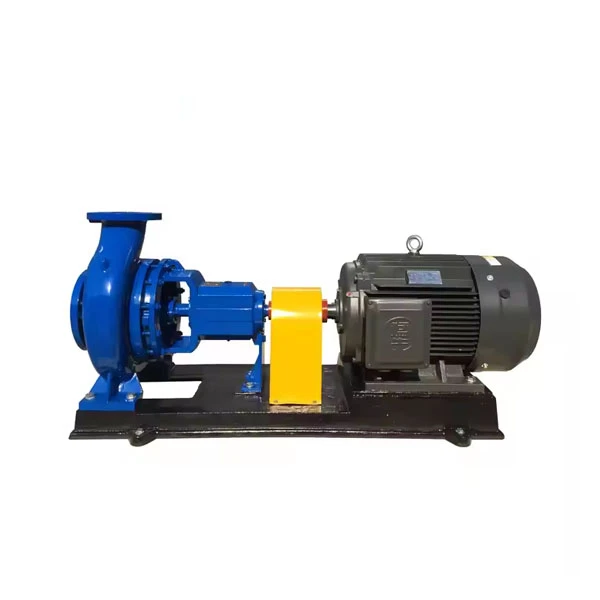

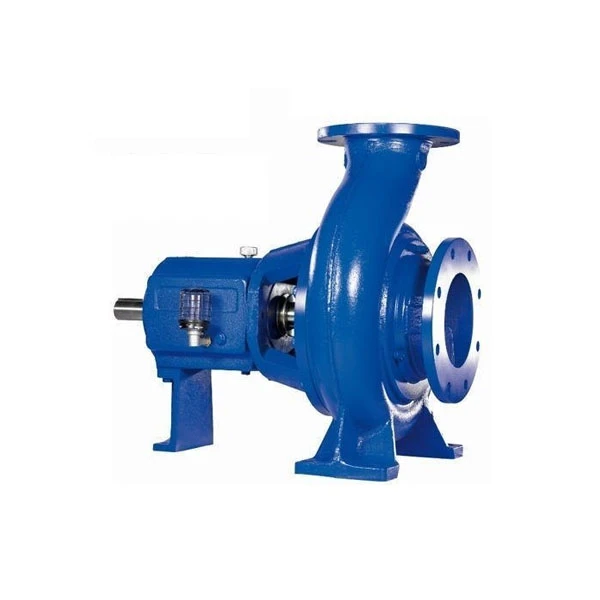

The HNYB end suction pump is designed for a wide range of applications, including the transport of general-purpose liquids, industrial water supply, circulation, and drainage. By utilizing a single impeller to transfer energy to the fluid, this pump provides a practical solution for various types of systems.
Featuring a horizontal end-suction configuration, the pump draws fluid in through an intake port and discharges it through an outlet. Its relatively simple design facilitates routine inspection and maintenance. Furthermore, the optimal pump model can be flexibly selected based on specific requirements such as flow rate, total head, fluid characteristics, and installation conditions.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Single-stage Pump |
| Application | Drinking water treatment, Water pipe network boosting, industrial and urban water supply and drainage |
| Place of Origin | Henan, China |
| Power | 3-160kw |
| Outlet Size | ≤500mm |
| Flow | 1.1-1450m³/ h |
| Head | 9-80m |
| Material | Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, etc |
Products Video
Structural features
Products application
Municipal Water Supply and Drainage: Fire protection systems, water treatment systems, water supply for high-rise buildings, and circulating water for commercial air conditioning systems
Industrial Drainage: Industrial wastewater, tailings transport, and river dredging
Agriculture: Farmland irrigation and the handling of animal waste
Transport of Corrosive Fluids: Corrosive slurries in chemical plants and mineral processing
Transport of Abrasive Fluids: Silt, mortar, mud/slurry, and sediments
Product Features
Single-Impeller Hydraulic Design
The pump uses one impeller to transfer energy to the liquid. This design is suitable for applications where the required flow and head can be achieved within the operating range of a single-stage pump.
Practical Pump Construction
A typical centrifugal pump consists of a casing, impeller, shaft, bearings and shaft-sealing components. The exact arrangement depends on the selected model. Accessible components and a suitable installation layout help simplify inspection and routine maintenance.
Stable Liquid Transfer
When correctly sized and operated near its intended duty point, the pump can provide the flow and head required by the system. Reviewing the pump performance curve helps ensure that the selected model matches actual operating conditions.
Material Options for Different Applications
Pump casing, impeller and other wetted components can be specified according to available configurations and liquid compatibility requirements. Material selection should consider liquid composition, concentration, temperature, and potential corrosion or abrasion.
Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
How To Cooperate With Us?
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: end suction pump, China end suction pump manufacturers, End Suction Centrifugal Water Pump, End Suction Water Pump, Single Stage End Suction Centrifugal Pump, Single Stage Inline Pump, Single Stage Pump, Vertical Chemical Centrifugal Pump
Product parameters
|
Flow rate: |
1.1-1450m³/ h |
|
Lift: |
9-80m |
|
Caliber: |
≤ 500mm |
|
Power: |
3-160kw |
|
Pressure: |
0.09MPa~0.8MPa(0.9Bar~0.8Bar) |
| Medium temperature: | -20 ℃~120 ℃ (above 80 ℃, please specify) |
|
Material: |
Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, etc |
| Scope of application: | Widely used for transporting clean water and other liquids with physical and chemical properties similar to clean water, building domestic water supply, pressurized tap water pipeline network, industrial and urban water supply and drainage; Petroleum products such as gasoline, diesel, and gasoline, or liquids with corrosive or special chemical properties. |
