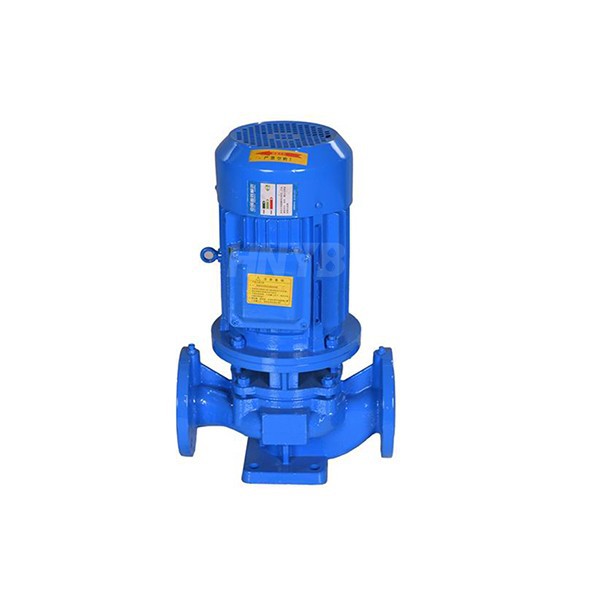

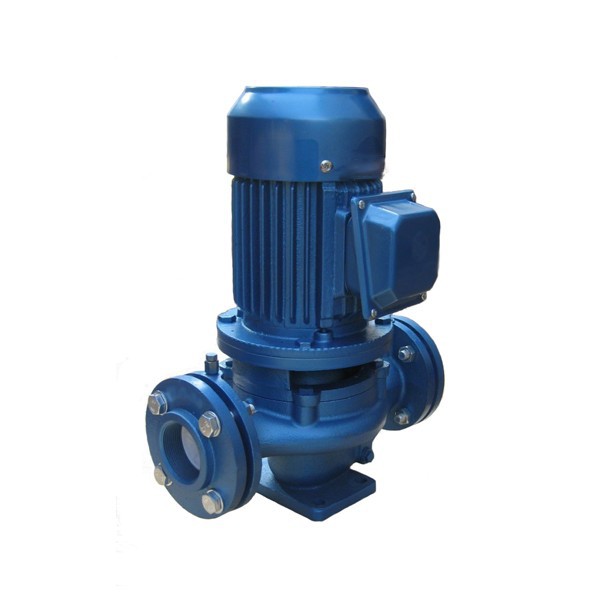

vertical inline booster centrifugal pump
Lift: 9-80m
Caliber: ≤ 500mm
Power: 3-160kw
Medium temperature: -20 ℃~120 ℃ (above 80 ℃, please specify)
Material: Cast iron/ductile iron/cast steel/stainless steel, etc
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of vertical inline booster centrifugal pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable vertical inline booster centrifugal pump at competitive price from our factory.

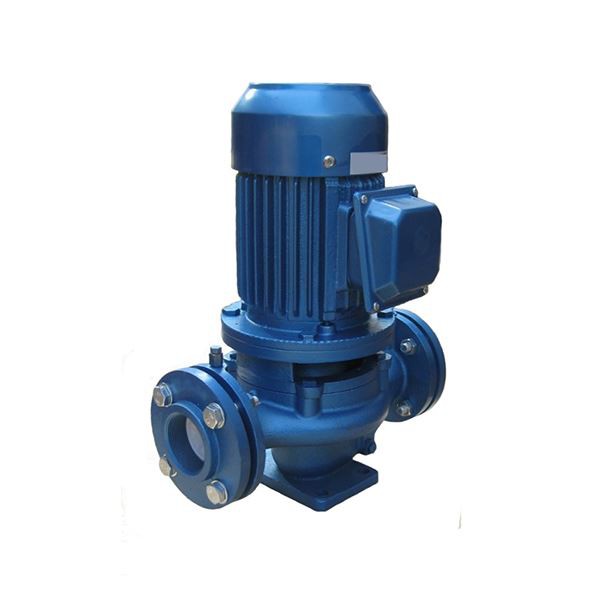

vertical inline booster centrifugal pump
The HNYB Vertical Inline Booster Centrifugal Pump is designed for water pressure boosting, circulation and liquid transfer in building, municipal and industrial piping systems.
Featuring a compact vertical inline configuration, the pump integrates directly into the pipeline, with the suction and discharge connections arranged on the same axis. This configuration reduces installation space and simplifies piping layout compared with conventional base-mounted horizontal pumps. The direct motor-to-pump configuration minimizes the number of intermediate transmission components, providing reliable power transmission and stable operation.
With multiple material and motor configurations available, the HNYB vertical inline booster pump can be customized for clean water, industrial utility water, irrigation, HVAC circulation and other compatible liquids.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Electric water pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 0.75-550kw |
| Outlet Size | ≤600mm |
| Flow | 9-5500m³/ H |
| Head | 5-110m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Product Features
- Compact Structure: The lower center of the vertical structure coincides with the center of the pump foot, enhancing operational stability and duration.
- Easy Installation: With the inlet and outlet on the same centerline and having identical openings, this pump can be installed directly in any location on the pipeline, just like a valve. The motor is equipped with a rain cover, allowing for outdoor operation. The pump is equipped with mounting feet for stable installation.
- Stable Operation: The motor uses low-noise bearings, and the impeller has optimal dynamic and static balance, resulting in vibration-free operation and improved environmental protection.
- Leak-Free: The shaft uses a carbide alloy wear-resistant material for the mechanical seal, solving the problem of severe leakage in centrifugal pump filling seals, extending service life, and ensuring a clean and tidy operating environment.
- Easy Maintenance: Inspection and maintenance do not require disassembling the pipeline; simply remove the pump cover, motor, and drive components.
- Wide range of applications: It can be used for industrial and urban water supply and drainage, high-rise building booster water supply, garden irrigation, fire booster, etc., and can meet various liquid transportation needs. Different materials and specifications can be selected according to different usage occasions and need to meet different needs.
Typical Applications:
Chemical Industry: Vertical in-line booster centrifugal pumps can be used to transport various chemical raw materials, such as liquid chemicals, solvents, and coatings.
Petroleum Industry: They can be used to transport petroleum products, such as gasoline, diesel, and lubricating oil.
Food Industry: They can be used to transfer food ingredients such as fruit juice, beverages, and cheese from one container to another.
Field Irrigation: They can be used to transport water from low-lying water sources to high-altitude fields for irrigation. In arid regions, pipeline pumps can also be used to extract water from underground for irrigation.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
Hot Tags: vertical inline booster centrifugal pump, China vertical inline booster centrifugal pump manufacturers
Product parameters
Flow rate: 1.1-1450m³/ h
Lift: 9-80m
Caliber: ≤ 500mm
Power: 3-160kw
Medium temperature: -20 ℃~120 ℃ (above 80 ℃, please specify)
Material: cast iron/ductile iron/cast steel/stainless steel, etc
Maximum working pressure: 1.6MPa (200 and below caliber), 1.0MPa (above 200 caliber)
Inlet pressure ≤ 0.3MPa (specify when ordering over 0.3MPa)
Scope of application: Widely used for transporting clean water and other liquids with physical and chemical properties similar to clean water, building domestic water supply, pressurized tap water pipeline network, industrial and urban water supply and drainage; Petroleum products such as gasoline, diesel, and gasoline, or liquids with corrosive or special chemical properties.
