Centrifugal Pump Water Pump
Lift:9-80m
Caliber:≤ 500mm
Power:3-160kw
Medium temperature: -20 ℃~120 ℃ (above 80 ℃, please specify)
Material: Cast Iron/Ductile Iron/Cast Steel/Stainless Steel,etc
Description
Technical Parameters

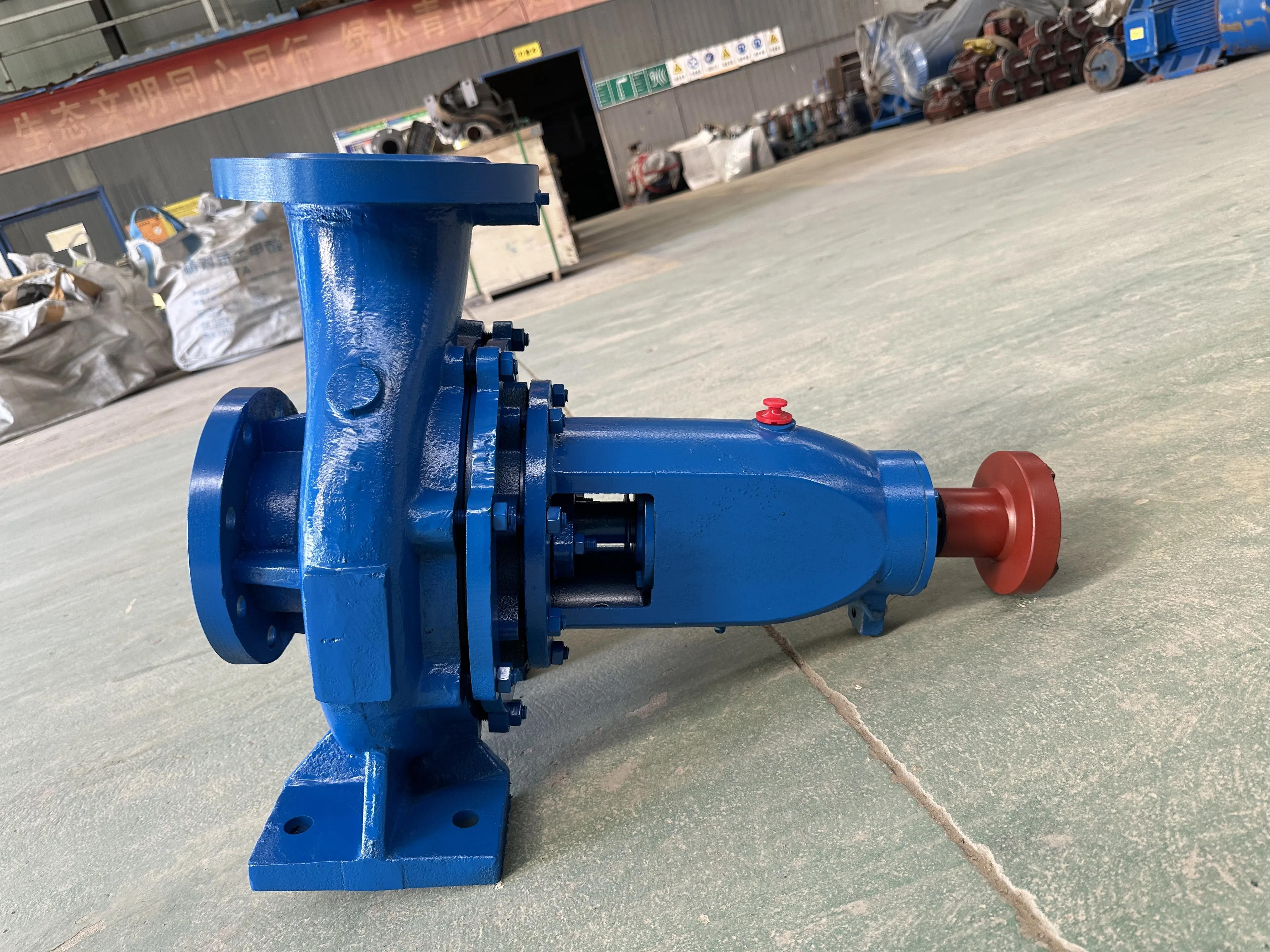

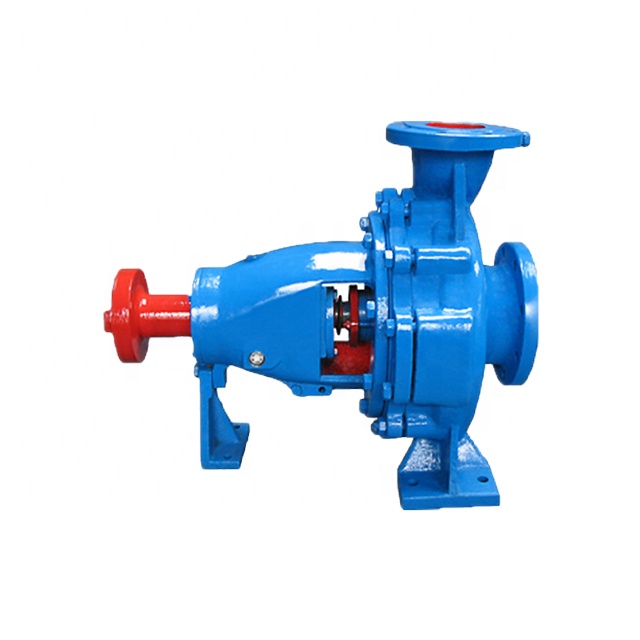

Centrifugal Water Pump
A centrifugal water pump is a high-efficiency, compact pump that is typically installed directly in a piping system for the continuous transport of water or other fluids. Designed with space-saving and simplified installation in mind, it is ideal for a variety of piping systems, including building water supply, industrial circulation, municipal drainage, HVAC systems, and agricultural irrigation.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Single-stage Pump |
| Application | Drinking water treatment, Water pipe network boosting, industrial and urban water supply and drainage |
| Place of Origin | Henan, China |
| Power | 3-160kw |
| Outlet Size | ≤500mm |
| Flow | 1.1-1450m³/ h |
| Head | 9-80m |
| Material | Cast Iron/Ductile Iron/Cast Steel/Stainless Steel,etc |
Products Video
Application Scenario:
- General water conveyance and pumping
- Pressure boosting and water supply
- Chiller water and condensate circulation in central air conditioning systems
- Circulation in hot water systems
- Machine cooling water circulation
Design Features
Horizontal pumps, shaft-mounted, volute-mounted, single-stage, end-suction, enclosed impeller.
Due to its reverse disassembly design, the bearing assembly, sealing housing, pump shaft, and impeller can be disassembled without disconnecting the volute from the piping system. When using a detachable coupling, the pump rotor assembly can be disassembled without removing the motor.
A top-center discharge port and an anchored pump body ensure structural stability and maximize resistance to deformation caused by eccentricity and linear loads.
The bearings utilize an external grease lubrication system, ensuring long-term reliable operation. This system improves heat dissipation, withstands harsh operating conditions, optimizes maintenance cycles, and allows for the selection of suitable lubricants. Oil lubrication systems or lifetime-lubricated sealed bearings are available upon request.
01
High efficiency and energy saving
Adhering to specialized production, we have uniquemethods for product model selection, mold making, and the casting process of hydraulic components.
02
Advanced process equipment
In order to ensure the assembly performance ofthe productsour company imported advanced parts cleaning equipment from abroad, and each part wascarefully deaned before the final assembly.
03
Unique structure
Install an O-shaped seayears ofg on the mating surface ofthe balance ringand the pump to prevent high-pressure water from entering the balance chamber, reduce balanceplate wear, and extend product service life.
04
Reasonable selection of materials
The material of the balance plate and balance ring can bemade of surfacing carbide, alloy steel or QT600Mn, alloy ductile cast iron according to different userneeds.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: centrifugal pump water pump, China centrifugal pump water pump manufacturers
Product parameters
|
Flow rate: |
1.1-1450m³/ h |
|
Lift: |
9-80m |
|
Caliber: |
≤ 500mm |
|
Power: |
3-160kw |
|
Pressure: |
0.09MPa~0.8MPa(0.9Bar~0.8Bar) |
| Medium temperature: | -20 ℃~120 ℃ (above 80 ℃, please specify) |
|
Material: |
Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, etc |
| Scope of application: | Widely used for transporting clean water and other liquids with physical and chemical properties similar to clean water, building domestic water supply, pressurized tap water pipeline network, industrial and urban water supply and drainage; Petroleum products such as gasoline, diesel, and gasoline, or liquids with corrosive or special chemical properties. |
