Magnetic Drive Transfer Circulating Chemical Pump
Head: 3-50m
Outlet Size: ≤100mm
Power: 1.5-110kw
Medium temperature: 0~150°C
Material: Fluoroplastic/alloy/stainless steel, etc
Description
Technical Parameters

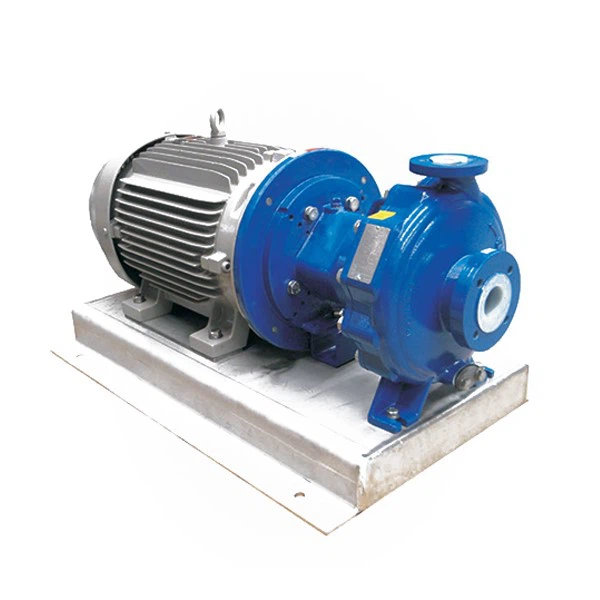

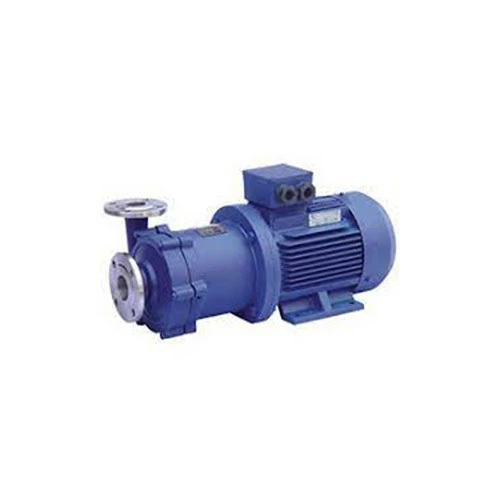

Magnetic Drive Transfer Circulating Chemical Pump
The Magnetic Drive Transfer Circulating Chemical Pump is an advanced liquid transportation equipment that adopts the principle of magnetic transmission and does not require mechanical shaft seals, effectively eliminating the risk of leakage in the liquid pump body. This pump is widely used in the chemical industry. It has the advantages of corrosion resistance, no leakage, adaptability to high temperatures and high pressures, and low maintenance costs. It provides efficient, safe and reliable liquid transportation solutions for chemical processes.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Single-stage Pump |
| Application | Automotive Industry, Biofuel Industry, Commercial Buildings, Water Distribution, Water Treatment Solutions |
| Place of Origin | Henan, China |
| Power | 1.5-110kw |
| Outlet Size | ≤100mm |
| Flow | 0.9-50m³/ h |
| Head | 3-50m |
| Material | Fluoroplastic/alloy/stainless steel, etc |
Products Video
Product Features
Superior Corrosion Resistance: The pump's main components possess excellent corrosion resistance. For example, the pump shaft can be made of ceramic or silicon carbide (SiC). Ceramic shafts are typically used for low-corrosive liquids, while silicon carbide shafts are ideal for highly corrosive liquids.
Unique Bearing Design for Dry Running: Due to the unique bearing design, the fluid circulation cools the impeller, pump shaft, and magnet during normal pump operation. Even when the pump is running dry, the temperature will not rise rapidly, thus preventing serious pump damage.
Easy Assembly: All internal parts of the magnetically driven circulating chemical pump are standardized, facilitating easy assembly and offering high performance. Parts can be easily replaced without any special tools. It features convenient maintenance, disassembly, and inspection capabilities, saving service time.
Wide Applications: The magnetic drive transfer circulating chemical pump is suitable for applications requiring low flow rates and high heads, or high flow rates and low heads. It is widely used in various industrial processes such as PCB manufacturing, chemical processing, circulating filtration, etching, electroplating, surface treatment, and wastewater treatment. These pumps offer superior performance and durability.
01
High efficiency and energy saving
Adhering to specialized production, we have uniquemethods for product model selection, mold making, and the casting process of hydraulic components.
02
Advanced process equipment
In order to ensure the assembly performance ofthe productsour company imported advanced parts cleaning equipment from abroad, and each part wascarefully deaned before the final assembly.
03
Unique structure
Install an O-shaped seayears ofg on the mating surface ofthe balance ringand the pump to prevent high-pressure water from entering the balance chamber, reduce balanceplate wear, and extend product service life.
04
Reasonable selection of materials
The material of the balance plate and balance ring can bemade of surfacing carbide, alloy steel or QT600Mn, alloy ductile cast iron according to different userneeds.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: magnetic drive transfer circulating chemical pump, China magnetic drive transfer circulating chemical pump manufacturers
Product parameters
| Flow: | 0.9~50m³/ h |
| Head: | 3-50m |
| Outlet Size: | ≤100mm |
| Power: | 1.5-110kw |
| Medium temperature: | 0~150°C |
| Material: | Fluoroplastic/alloy/stainless steel, etc |
| Scope of application: | transporting most acid, alkali and salt solutions, also suitable for exposure to outdoor atmosphere, with good corrosion resistance. |
