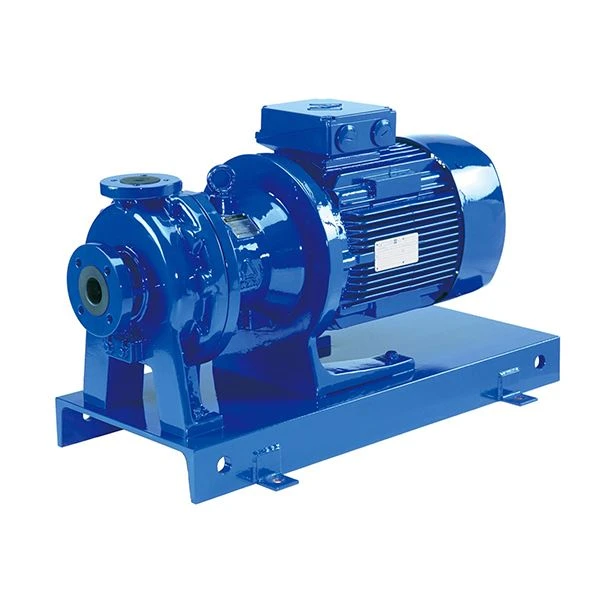

Chemical Circulating Magnetic Drive Chemical Pump
Head: 3-50m
Outlet Size: ≤100mm
Power: 1.5-110kw
Medium temperature: 0~150°C
Material: Fluoroplastic/alloy/stainless steel, etc
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of chemical circulating magnetic drive chemical pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable chemical circulating magnetic drive chemical pump at competitive price from our factory.
Magnetic drive circulation chemical pump
The vertical axial flow pump is a single-stage vertical axial flow pump. The liquid flows along the pump shaft. The impeller and bend in the pipe are optimized for superior performance and efficiency, making it suitable for high-flow-rate, low-head applications. It features high flow rate, long service life, good cavitation resistance, stable operation, and convenient installation and maintenance. It is used to pump clean water or other liquids with similar physicochemical properties to water, and can be used in agricultural drainage and irrigation, circulating water transportation in industrial thermal power plants, urban water supply and drainage, and water level control in shipyards, among other water conservancy projects.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Centrifugal Pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 15-1400kw |
| Pressure: | 0.01MPa~0.15MPa(0.1Bar~1.5Bar) |
| Flow | 650-88000m³/ h |
| Head | 1-15m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Application Scenario:
- Urban industrial and mining water supply and drainage, municipal engineering, and sewage treatment.
- Steel and gold processing, power plants, shipbuilding, water recycling, and water purification.
- Water conservancy projects and river management.
- Farmland irrigation, aquaculture, and salt fields.
Product Features
Excellent acid and alkali resistance: Four pump body materials are available, including PP (polypropylene), GFRPP (glass fiber reinforced polypropylene), PVDF (natural PVDF), and CFRETFE (carbon fiber reinforced ETFE). The choice of pump body material depends on the acid or alkali concentration of the solution.
Corrosion resistance: The main components of the pump have excellent corrosion resistance. For example, the pump shaft can be made of ceramic or silicon carbide (SiC). Ceramic shafts are generally used for low-corrosive liquids, while silicon carbide shafts are ideal for highly corrosive liquids.
Unique bearing design for dry running: Due to the unique bearing design, the fluid circulation cools the impeller, pump shaft, and magnet during normal pump operation. Even when the pump is running dry, the temperature will not rise rapidly, thus preventing serious pump damage.
Easy assembly: All internal parts of the magnetic drive circulating chemical pumps are standardized, making assembly easy and the structure high-performance. Parts can be easily replaced without any special tools. It features convenient maintenance, disassembly, and inspection capabilities, saving service time.
01
High efficiency and energy saving
Adhering to specialized production, we have uniquemethods for product model selection, mold making, and the casting process of hydraulic components.
02
Advanced process equipment
In order to ensure the assembly performance ofthe productsour company imported advanced parts cleaning equipment from abroad, and each part wascarefully deaned before the final assembly.
03
Unique structure
Install an O-shaped seayears ofg on the mating surface ofthe balance ringand the pump to prevent high-pressure water from entering the balance chamber, reduce balanceplate wear, and extend product service life.
04
Reasonable selection of materials
The material of the balance plate and balance ring can bemade of surfacing carbide, alloy steel or QT600Mn, alloy ductile cast iron according to different userneeds.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: chemical circulating magnetic drive chemical pump, China chemical circulating magnetic drive chemical pump manufacturers
Product parameters
| Flow: | 0.9~50m³/ h |
| Head: | 3-50m |
| Outlet Size: | ≤100mm |
| Power: | 1.5-110kw |
| Medium temperature: | 0~150°C |
| Material: | Fluoroplastic/alloy/stainless steel, etc |
| Scope of application: | transporting most acid, alkali and salt solutions, also suitable for exposure to outdoor atmosphere, with good corrosion resistance. |
