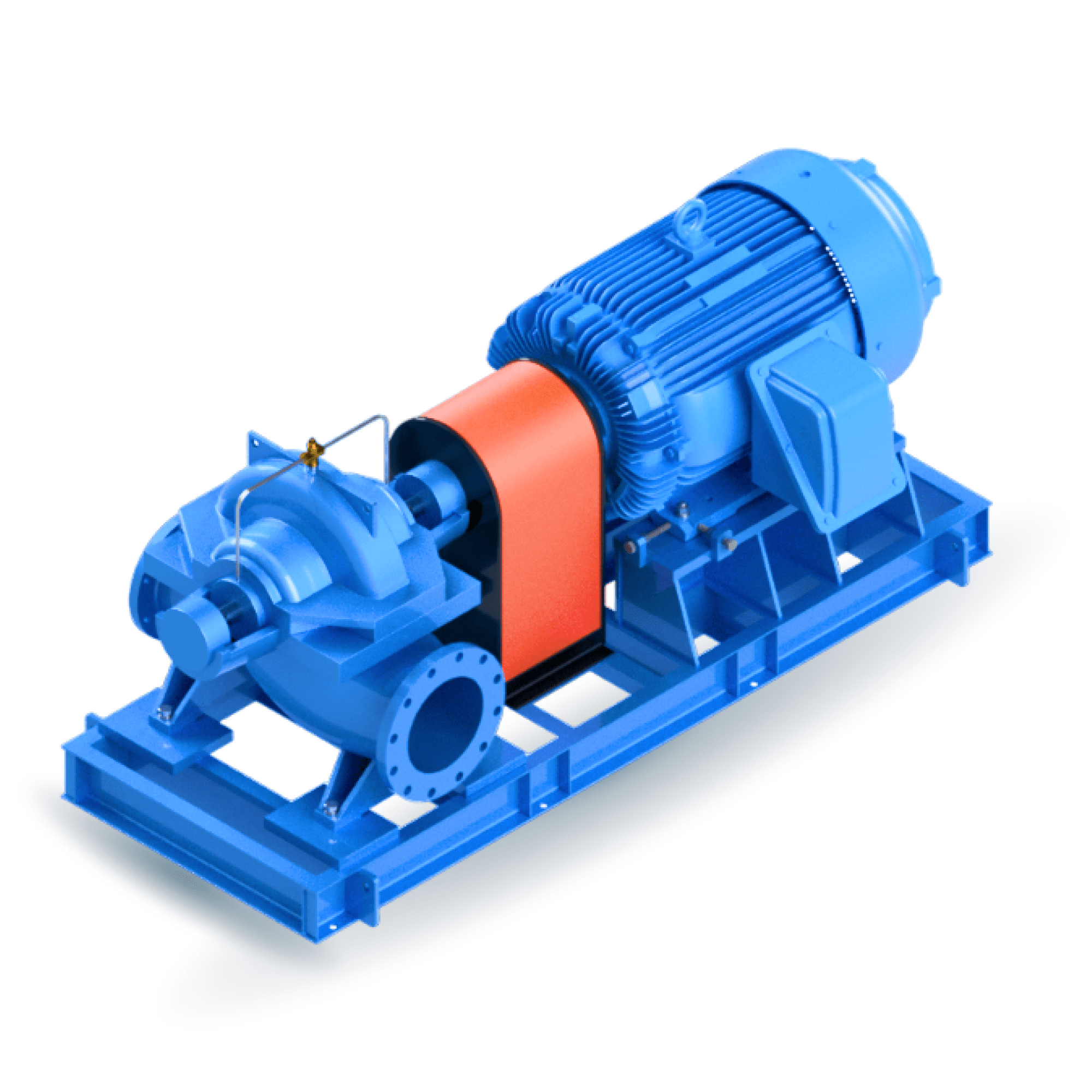

Double Suction Split Casing Pumps
Our company's new double-suction split case pump is a new generation pump developed using advanced hydrodynamic calculation methods and CFD computer-aided design. It boasts high efficiency, low pulsation, low noise, durability, and easy maintenance. This pump features a single-stage, double-suction, horizontally split case with supports at both ends. It is generally used for pumping clear water or mildly corrosive liquids free of solid particles and short fibers.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Electric water pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 11-2240kw |
| Outlet Size | ≤1200mm |
| Flow | 50-18000m³/ H |
| Head | 10-260m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Structure diagram
Application Scenario:
Water circulation systems.
Industrial water supply and drainage.
Urban water supply.
Cooling water circulation, central air conditioning water circulation.
Building fire protection, boiler water supply, and irrigation.
Product Features
- The horizontally split casing features inline suction and discharge nozzles in the lower half of the casing for easy inspection and maintenance.
- The double-suction impeller ensures hydraulic axial balance, reducing thrust bearing loads, extending pump life, and lowering maintenance costs.
- The double volute ensures radial balance, reducing radial bearing loads, extending pump life, and reducing maintenance costs. (Availability depends on pump size.)
- Easily replaceable wear rings restore running clearances and prevent wear on the impeller and casing, minimizing overall operating costs.
- Sealing flexibility: Choose from packing or a variety of mechanical seals.
- Mounting flexibility: Horizontal or vertical mounting, clockwise or counterclockwise rotation.
- Material flexibility: A wide range of metals are available, from cast iron to stainless steel.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: double suction split casing pumps, China double suction split casing pumps manufacturers
| Flow(Q): | 50-18000m³/ H |
| Head(H): | 10-260m |
| Pressure: | 0.1MPa-2.6MPa(1Bar-26Bar) |
| Caliber: | ≤1200mm |
| Power: | 11-2240kw |
| Medium temperature: | -20℃-150℃(-4°F-482°F)(above 80 ℃, please specify) |
| Material: | Cast iron/ductile iron/cast steel/stainless steel, etc |
| Application scope: | The S-type double suction split pump is a horizontal single pole double suction horizontal split centrifugal pump developed by our factory. It is an efficient and energy-saving product suitable for industrial and urban water supply and drainage pumps. It can be used as a drainage or water supply pump for factories, cities, power stations, water conservancy, petroleum, engineering, and other industries. It can also be used for agricultural irrigation and other industries. |
