Axially Split Case Pump
Head(H):10-260m
Pressure:0.1MPa-2.6MPa(1Bar-26Bar)
Caliber:≤ 1200mm
Power: 11-2240kw
Medium temperature:-20℃-150℃(-4°F-482°F)(above 80 ℃, please specify)
Material: cast iron/ductile iron/cast steel/stainless steel
Description
Technical Parameters

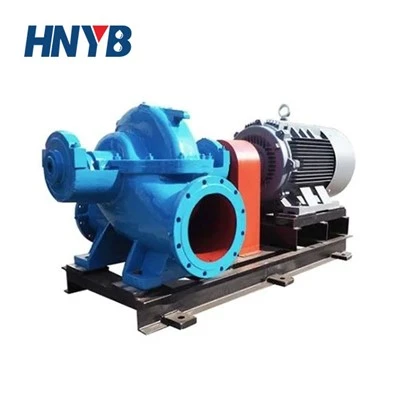

Axially Split Case Pump
The HNYB axially split case pump is a high-efficiency centrifugal pump designed for applications requiring high flow rates, reliable continuous operation, and ease of maintenance.
This pump features an axially split casing design with a double-suction impeller. The casing is split along the shaft centerline. This design facilitates maintenance, allowing for easy access to internal components without disassembling the motor or main piping connections. The dynamically balanced double-suction impeller ensures minimal axial thrust and high operating efficiency. This structure makes the split pump particularly suitable for applications requiring frequent inspection and long service life.
With its superior hydraulic efficiency and robust construction, the HNYB axially split pump is widely used in water supply, power plants, industrial circulation systems, irrigation, municipal engineering, and large-scale water conveyance projects. It can handle a variety of media, including abrasive media such as clean water, sandy water, and scale-laden water, corrosive media such as seawater, and high-temperature fluids up to 150°C.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Diesel engine or electric motor |
| Brand Name | HNYB |
| Structure | Single-stage pump |
| Application | Drinking water treatment, Food and beverage industry, Industrial facilities, Irrigation and agriculture, Mining, |
| Place of Origin | Henan, China |
| Power | 11-2240kw |
| Outlet Size | ≤1200mm |
| Flow | 50-18000m³/ H |
| Head | 10-260m |
| Material |
Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Structural features
Key Features
Axially Split Casing Design: The pump casing is horizontally split along the shaft centerline. This allows for rotor inspection without disassembling the piping, reducing downtime and facilitating maintenance.
Double-Suction Impeller Design: Most split pumps utilize a double-suction impeller design to balance hydraulic forces, improve efficiency, reduce axial thrust, and extend bearing life.
Reliable Continuous Operation: Robust and durable mechanical construction, low vibration, and stable performance ensure long-term stable operation.
Versatile and robust: Axially split case pumps are versatile, robust, and durable, capable of handling various fluids and adapting to diverse operating conditions. They are widely used in municipal water supply systems, where their reliability and efficiency ensure a stable and safe water supply.
Applications
Power Generation: Axially split-case pumps are used for cooling water circulation and boiler feed applications in power plants.
HVAC System: Heating, ventilation, and air conditioning (HVAC) systems utilize split-system pumps to circulate chilled and hot water.
Urban Drainage: They rapidly remove accumulated water during heavy storms to prevent flooding and ensure the steady transport of sewage to treatment plants, maintaining smooth urban drainage operations.
Municipal Water Supply: They draw water from sources and boost pressure within the distribution network to ensure an adequate and evenly pressurized water supply for urban areas.
Petrochemical Refineries: They handle the long-distance transport of crude oil and the safe conveyance of various chemical materials, ensuring the continuous operation of refining processes.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: axially split case pump, China axially split case pump manufacturers
Product parameters
| Flow(Q): | 50-18000m³/ H |
| Head(H): | 10-260m |
| Pressure: | 0.1MPa-2.6MPa(1Bar-26Bar) |
| Caliber: | ≤1200mm |
| Power: | 11-2240kw |
| Medium temperature: | -20℃-150℃(-4°F-482°F)(above 80 ℃, please specify) |
| Material: | cast iron/ductile iron/cast steel/stainless steel, etc |
| Application scope: | The S-type double suction split pump is a horizontal single pole double suction horizontal split centrifugal pump developed by our factory. It is an efficient and energy-saving product suitable for industrial and urban water supply and drainage pumps. It can be used as a drainage or water supply pump for factories, cities, power stations, water conservancy, petroleum, engineering, and other industries. It can also be used for agricultural irrigation and other industries. |
