Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of air operated double diaphragm pumps in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable air operated double diaphragm pumps at competitive price from our factory.
Air Operated Double Diaphragm Pumps

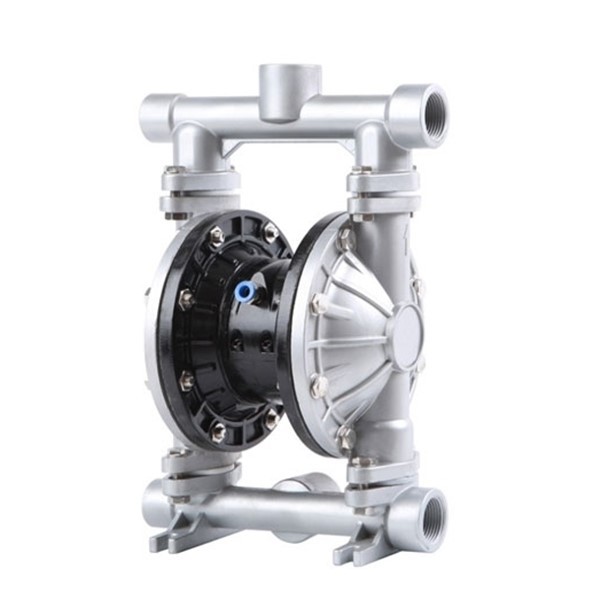

The HNYB Air Operated Double Diaphragm Pump (AODD Pump) is a positive displacement pump powered by compressed air. Using two flexible diaphragms and alternating air pressure, it safely transfers a wide range of liquids, including corrosive chemicals, abrasive slurries, viscous fluids, and liquids containing suspended solids. AODD pumps are widely used because they are self-priming, can run dry without damage, and do not require electrical power in hazardous areas.
Designed for demanding industrial applications, HNYB pneumatic diaphragm pumps are suitable for chemical processing, mining, wastewater treatment, food and beverage production, coatings, ceramics, pharmaceuticals, and general industrial fluid handling.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Pneumatic |
| Brand Name | HNYB |
| Structure | Diaphragm Pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 1.5-110kw |
| Outlet Size | ≤100mm |
| Flow | 0.5-30m³/ H |
| Head | 30-50m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Working Principle
- Air Supply Start: Compressed air enters the diaphragm pump through the inlet and is guided to one side of the air chamber by the air distribution valve, thus starting the pumping cycle.
- Diaphragm Movement: Air pressure pushes the diaphragm outward, while a connecting rod drives the diaphragm on the other side to move synchronously.
- Cavity Volume Change: When the volume of one pumping chamber (discharge stroke) decreases, the volume of the other chamber (intake stroke) increases.
- Check Valve Operation: During the intake stroke, the inlet check valve opens, drawing fluid into the chamber, while the outlet check valve remains closed to prevent backflow.
- Automatic Air Switching: When the diaphragm reaches its stroke limit, the air valve automatically switches, redirecting compressed air to the opposite air chamber.
- Discharge Stroke: The previously expanded chamber now contracts, opening the outlet check valve and discharging fluid into the pipeline.
- Continuous Reciprocating Motion: This alternating intake and discharge cycle repeats continuously, producing a stable and reliable fluid flow without the need for electricity.

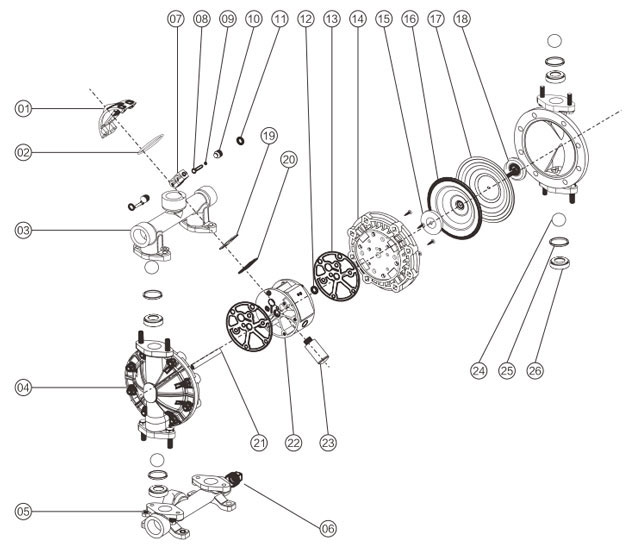

Structural diagram
| 1 | Air valve cover | 8 | Auxiliary shaft | 15 | Inner clamp | 22 | Air valve chamber |
| 2 | Air valve cover O-ring | 9 | Auxiliary shaft O-ring | 16 | Poly rubber diaphragm | 23 | Muffler |
| 3 | Discharge outlet | 10 | Piston | 17 | PTFE diaphragm | 24 | Ball valve |
| 4 | Colum | 11 | Piston V-Ring | 18 | Outer clamp | 25 | Ball seat O-ring |
| 5 | Feed inlet | 12 | Pitman shaft O-ring | 19 | Sliding plate | ||
| 6 | Plug | 13 | Air valve chamber gasket | 20 | Sliding plate gasket | 26 | Ball seat |
| 7 | Small slider | 14 | Baffle | 21 | Pitman shaft |
Products application
Products application
Chemical Industry: Ideal for emulsions, latexes, detergents, adhesives, paints, and inks, providing superior performance for chemical diaphragm pump applications.
Paint and Coating Industry: Ideal for material grinding, paint filtration, mixing tanks, filling machines, tank transport, and low-shear applications.
Construction and Utilities: Performs well in drinking water treatment, oil transportation, fuel transportation, site drainage, and protective coatings.
Food Processing: Applicable to food packaging, product transfer, brewing, and beverage or liquid food applications.
Marine and Shipbuilding: Used for oil transportation, fuel transportation, bilge pumping, deck drainage, cargo oil handling, and lubricant transportation.
Mining Industry: Ideal for oil transportation, mineral slurry pumping, dredging drainage, and tunnel drainage.
Product Features
The Air Operated Double Diaphragm Pumps can transport high-temperature media up to 130℃.
It employs a pilot-operated air valve, eliminating downtime and extending its service life.
It features a multi-port design for easy installation.
The Air Operated Double Diaphragm Pumps are compact, easy to move, require no base, occupy little space, and are simple to install, making it suitable for use as a mobile material conveying pump.
It can be remotely controlled by an external solenoid valve. The directional valve requires no lubrication.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: air operated double diaphragm pumps, China air operated double diaphragm pumps manufacturers
Product parameters
| Flow Rate(Q): | 0.5~30m³/h |
| Head(H): | 0~ 50m |
| Pressure: | 0MPa~0.5MPa(OBar~5Bar) |
| Power: | 1.5~110kw |
| Liquid Temperature: | 0°C~150°C(32°F~302°F) |
| Material: | Aluminum Ally, Polypropylene, Stainless Steel, Cast Iron, Etc |
| Application: | It is used to transport different corrosive and granular liquids, special liquids with high viscosity, volatile, flammable and explosive, highly toxic, etc. |
