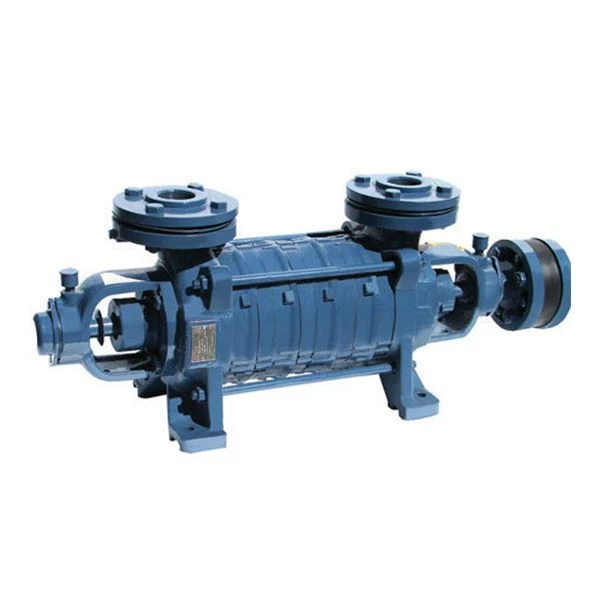

High Pressure Steam Boiler Feed Pump
Description
Technical Parameters
What Is A Steam Boiler Feed Pump?
The HNYB Steam Boiler Feed Pump is a high-pressure multistage centrifugal pump designed to supply treated feed water to industrial steam boilers and steam generation systems. By using multiple impellers in series, the pump generates the pressure required to overcome boiler operating pressure while maintaining stable flow and reliable performance. Boiler feed pumps for steam systems are almost universally designed as multistage centrifugal pumps because of their ability to achieve high discharge pressures efficiently.
Engineered for continuous-duty operation, HNYB pumps are widely used in thermal power plants, industrial steam boilers, petrochemical facilities, food processing plants, textile mills, paper mills and district heating systems. Their robust construction, high hydraulic efficiency and long service life make them ideal for demanding boiler feed applications.
Product Video
Why Boiler Systems Need High Pressure Feed Pumps
Maintain Boiler Water Level
Ensures continuous water supply to prevent dry burning and overheating.
Stable Steam Generation
Provides stable feed water pressure for efficient steam production.
Continuous Industrial Operation
Supports long-term continuous-duty operation in industrial systems.
High Pressure Delivery
Overcomes boiler internal pressure and pipe resistance losses.
Improved Boiler Efficiency
Stable water circulation improves thermal system efficiency.
Safe Boiler Operation
Maintains stable water circulation and operating conditions.
Why Multistage Pumps Are Used For Boiler Feed Applications
Steam boiler systems usually require high-pressure feed water delivery. Multistage centrifugal pumps are ideal for this application because multiple impellers increase water pressure stage by stage.
Compared with single-stage pumps, multistage boiler feed pumps provide higher discharge pressure, better hydraulic efficiency and more stable continuous operation under high-temperature conditions.
The segmented multistage structure also allows the pump to handle high boiler pressures efficiently while maintaining long service life and low maintenance requirements.
Technical Features
High Pressure Multistage Structure
Multiple impeller stages generate stable high-pressure water delivery.
Anti-Cavitation Hydraulic Design
Optimized flow channels reduce cavitation risk and improve reliability.
High Temperature Resistance
Suitable for continuous hot water and boiler feed applications.
Stable Axial Force Balance
Balance drum structure improves rotor stability and bearing life.
Heavy-duty Bearing Design
Supports continuous industrial operation under harsh conditions.
Energy Efficient Performance
High-efficiency hydraulic design reduces energy consumption.
Product Parameters
| Item | Range |
|---|---|
| Flow Rate | 3.7~1350m³/h |
| Head | 50~1800m |
| Temperature | Up To 160°C |
| Power | 3~1600kW |
| Pressure | Up To 20MPa |
| Material | Cast Iron / SS304 / SS316 / Alloy Steel |
| Seal Type | Mechanical Seal / Packing Seal |
| Structure | Horizontal Multistage Centrifugal Pump |
How To Select A Steam Boiler Feed Pump
Selecting the correct boiler feed pump requires accurate operating condition analysis.
Boiler Capacity
Determine the required steam production capacity and water supply demand.
Feed Water Temperature
High-temperature feed water affects pump material and seal selection.
Required Pressure
Pump discharge pressure must exceed boiler operating pressure.
Flow Rate
Select proper flow capacity according to boiler system requirements.
NPSH Conditions
Proper NPSH design helps prevent cavitation problems.
Continuous Duty Operation
Industrial boiler systems require reliable long-term continuous operation.
Typical Applications
Industrial Steam Boilers
High-pressure water supply for industrial steam generation systems.
Thermal Power Plants
Feed water circulation systems for thermal power generation.
Textile Factory Boiler Systems
Steam boiler feed systems used in textile manufacturing.
Food Processing Steam Systems
Steam generation and hot water circulation for food industries.
Chemical Plant Boilers
High-temperature feed water circulation for chemical processing plants.
Industrial Heating Systems
Hot water circulation and heating system pressure boosting.
Products Features
High-Pressure Multistage Design
Multiple impellers generate the pressure required for medium- and high-pressure steam boiler systems.
Reliable Continuous Operation
Designed for 24/7 industrial service with stable hydraulic performance.
Energy-Efficient Performance
Optimized hydraulic passages reduce energy consumption while maintaining high efficiency.
Heavy-Duty Construction
Robust casing, shaft and bearings ensure long service life in demanding environments.
Flexible Material Options
Available in cast steel, stainless steel and other materials according to feed water quality and operating temperature.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
FAQ
Q: What is a steam boiler feed pump used for?
A: A steam boiler feed pump supplies high-pressure feed water into industrial steam boilers to maintain stable steam generation.
Q: Why are multistage pumps used for boiler feed systems?
A: Multistage pumps provide the high pressure required to overcome boiler internal pressure efficiently.
Q: Can boiler feed pumps handle high-temperature water?
A: Yes. Boiler feed pumps are designed for high-temperature feed water applications under continuous-duty operation.
Q: How to prevent cavitation in boiler feed pumps?
A: Proper NPSH calculation, suction pipeline design and correct pump selection help reduce cavitation risk.
Q: What materials are suitable for boiler feed pumps?
A: Cast iron, stainless steel and alloy steel are commonly used depending on water quality and temperature.
Q: How to select the correct boiler feed pump?
A: Flow rate, boiler pressure, feed water temperature, NPSH and installation conditions should all be considered.
Hot Tags: High Pressure Steam Boiler Feed Pump, China High Pressure Steam Boiler Feed Pump manufacturers
Product parameters
Flow: 3.7~1350m³/h
Head: 50~1800m
Outlet Size: ≤300mm
Power: 3~1600kw
Medium temperature: -20℃~250℃ (need to explain if it is higher than 80℃)
Material: cast iron/ductile iron/cast steel/stainless steel, etc.
Application: Suitable for transporting clean water with a temperature below 250°C, or non-corrosive liquids with physical and chemical properties similar to water. It is widely used in boiler water in power plants, metallurgy, heating and other industries.
