Industrial High Pressure Water Pump
head: 8-140m
Caliber: ≤ 300mm
Power: selected based on the viscosity and specific gravity of the liquid
Medium temperature: -20 ℃~260 ℃ (temperature to be specified)
Material: cast steel/stainless steel, etc
Description
Technical Parameters

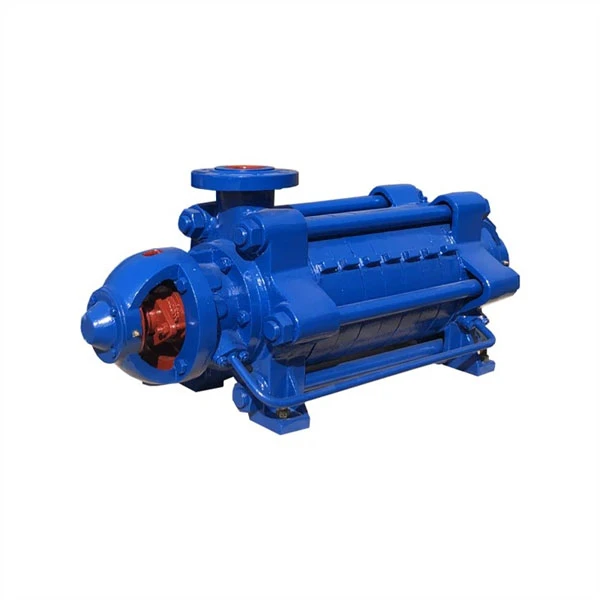

Industrial High Pressure Water Pump
Industrial high-pressure water pumps are horizontal, multistage centrifugal pumps suitable for conveying pure water (containing less than 1% foreign matter and with a particle size of less than 0.1 mm) and other liquids with similar physical and chemical properties to pure water. They have a wide range of applications in many industrial fields, including processing, manufacturing, and cleaning, making them essential hydraulic equipment.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Diesel engine or electric motor |
| Brand Name | HNYB |
| Structure | Multistage Pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 3~1600kw |
| Outlet Size | ≤300mm |
| Flow | 3.7~1350m³/h |
| Head | 50~1800m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
application
Boiler feedwater: Injecting water into high-pressure boilers in thermal power plants and industrial boiler systems.
Oilfield water injection: Pumping high-pressure water into oil reservoirs to displace oil and enhance oil recovery.
High-pressure cleaning: Used in ship hull cleaning and industrial equipment cleaning to remove contaminants.
Long-distance pipeline transportation: Used in pipeline booster stations for fluids such as oil, refined oil, and water to maintain stable transmission pressure.
High-rise building water supply: Replaces multiple zoned pumping stations to ensure consistent water pressure across all floors.
Product Features
- Multistage cascaded impellers: The pump body is equipped with multiple (usually two or more, even dozens) identical impellers and their corresponding guide vanes (or pump casing flow channels). Each impeller acts as an "energy amplifier," extracting mechanical energy from the drive shaft and converting it into the kinetic and pressure energy of the liquid.
- High head: It can produce high heads (corresponding to high pressure) that single-stage centrifugal pumps cannot achieve, with pressure ranges from tens of bar to hundreds of bar or even higher.
- High efficiency: Under high-pressure conditions, the overall efficiency of industrial high-pressure water pumps is higher than that of multiple single-stage pumps cascaded.
- Customization: Industrial high-pressure water pumps are highly customizable and can be designed according to the specific needs of the user. With a wide selection of materials, sizes, and configurations, these pumps can be customized to meet the user's individual needs and preferences.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: industrial high pressure water pump, China industrial high pressure water pump manufacturers
Product parameters
| Flow range: | 3.7~1350m³/h |
| Head: | 50~1800m |
| Caliber: | ≤300mm |
| Power: | 3~1600kw |
| Medium temperature: | -20℃~150℃ (need to explain if it is higher than 80℃) |
| Material: | Cast iron/ductile iron/cast steel/stainless steel, etc. |
| Scope of application: |
Transporting clean water or special liquids that do not contain or contain a small amount of solid particles, mainly used for industrial, mining and urban water supply and drainage, pressurized water supply for high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance water delivery, heating, bathrooms and other hot and cold water circulation pressurization and equipment supporting etc. |
