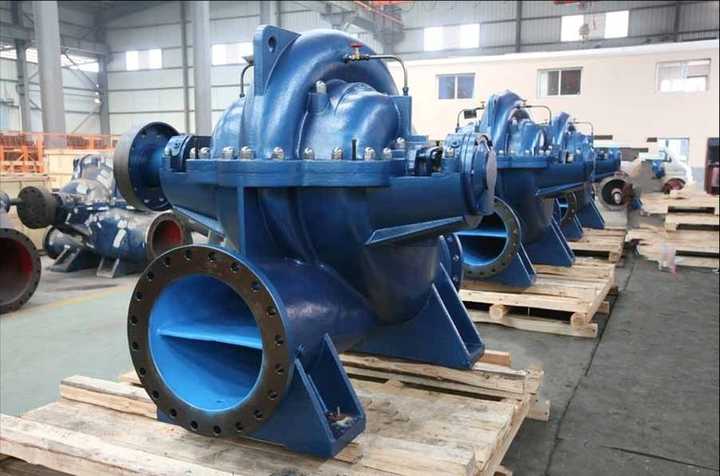

Double Suction Impeller Pump
Head(H): 10-260m
Pressure: 0.1MPa-2.6MPa(1Bar-26Bar)
Caliber: ≤1200mm
Power: 11-2240kw
Medium temperature: -20℃-150℃(-4°F-482°F)(above 80 ℃, please specify)
Material: cast iron/ductile iron/cast steel/stainless steel, etc
Description
Technical Parameters
Products Description
The inlet and outlet of the double-suction impeller pump are in the same direction and perpendicular to the pump shaft, which is conducive to the arrangement and installation of the pump and the inlet and outlet pipes; the impeller structure of the double-suction pump is symmetrical, there is no axial force, and the operation is relatively stable. Due to its superior design, high efficiency, good stability and wide range of use, it is widely used in industrial and municipal fields.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Single-stage Pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 11-2240kw |
| Outlet Size | ≤1200mm |
| Flow | 50-18000m³/ H |
| Head | 10-260m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Product Video
Model Description
Structural Description
The double-suction impeller pump is installed horizontally, with the suction port and the discharge port both below the center line of the pump shaft. The pump body is open horizontally, and the inlet and outlet pipes do not need to be disassembled for maintenance.
Bearing: There are rolling bearings at both ends of the pump to support the rotor components, which are lubricated with thin oil and grease.
Shaft seal: soft packing seal or mechanical seal.
The double-suction seal ring is used to reduce the water leaking back to the suction chamber from the pressure chamber of the water pump.
Product application
- Water supply systems or circulating cooling water systems in steel mills, petrochemicals, thermal power plants, and mines.
- Municipal water supply, heating circulating water.
- Farmland irrigation and drainage.
- Water conservancy projects.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
How To Cooperate With Us?
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
Hot Tags: double suction impeller pump, China double suction impeller pump manufacturers, Magnetic Drive Transfer Circulating Chemical Pump, Solvent Recovery Pump, Axial Flow Piston Pump, Horizontal Axial Flow Pump, Axial Flow Pump, Axially Split Volute Casing Pump
Products Parameters
| Flow(Q): | 50-18000m³/ H |
| Head(H): | 10-260m |
| Pressure: | 0.1MPa-2.6MPa(1Bar-26Bar) |
| Caliber: | ≤1200mm |
| Power: | 11-2240kw |
| Medium temperature: | -20℃-150℃(-4°F-482°F)(above 80 ℃, please specify) |
| Material: | cast iron/ductile iron/cast steel/stainless steel, etc |
| Application scope: | The S-type double suction split pump is a horizontal single pole double suction horizontal split centrifugal pump developed by our factory. It is an efficient and energy-saving product suitable for industrial and urban water supply and drainage pumps. It can be used as a drainage or water supply pump for factories, cities, power stations, water conservancy, petroleum, engineering, and other industries. It can also be used for agricultural irrigation and other industries. |
