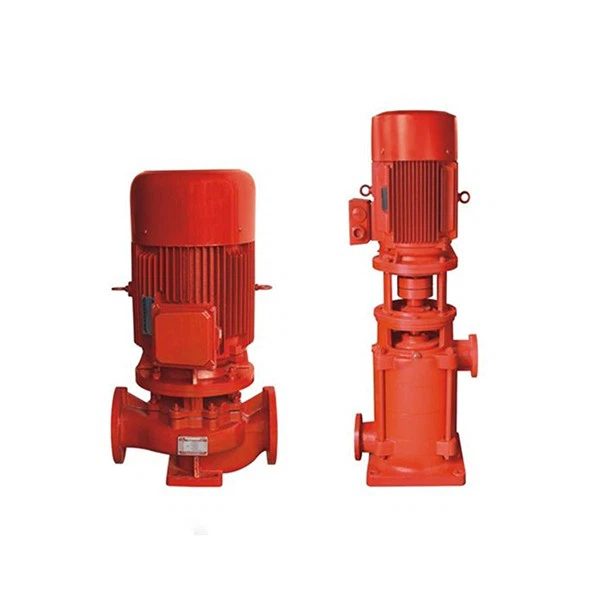

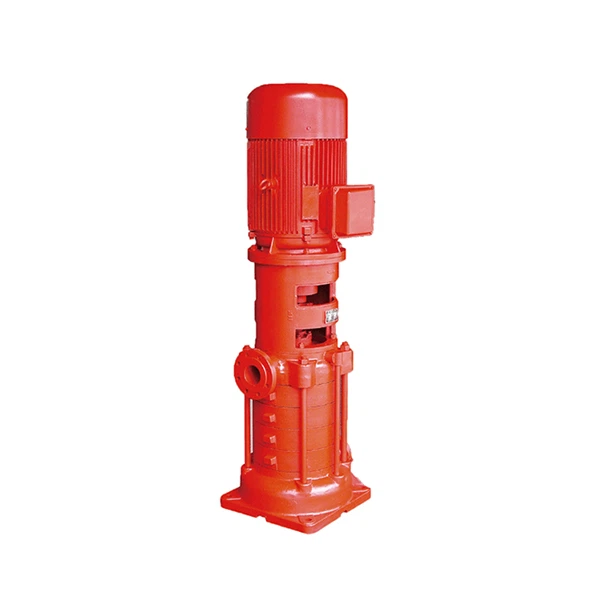

Vertical Fire Pump
Head(H): 9~80m
Pressure: 0.09MPa~0.8MPa(0.9Bar~8Bar)
Power: 3~160kw Liquid
Temperature: -20℃~150℃(-4°F~302°F)
Material: Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, Etc
Description
Technical Parameters

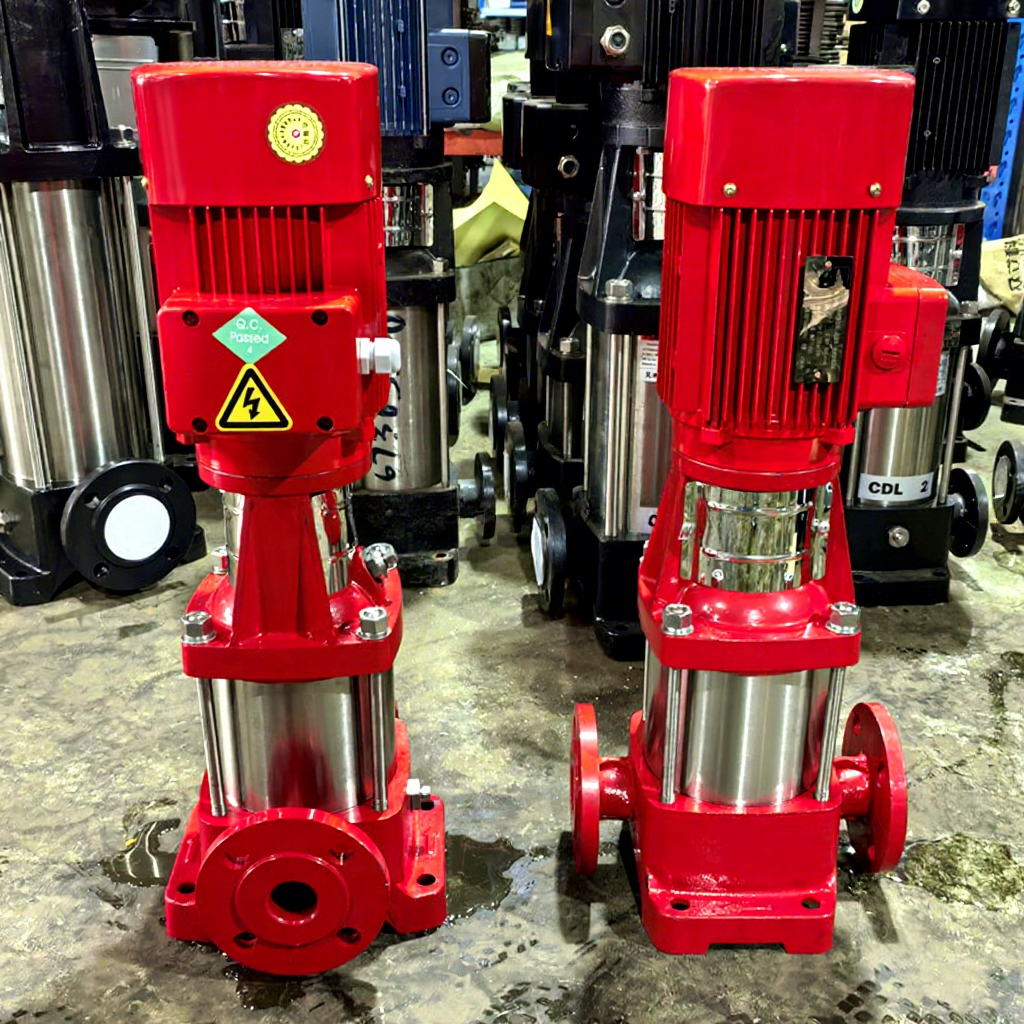

Vertical Fire Jockey Pump
Vertical fire pump is a pump product specially designed to meet the needs of fire protection systems in high-rise buildings, underground facilities, industrial and civil buildings. This pump has a small footprint, making it ideal for locations with limited space. The vertical fire pump is driven by an electric motor and can quickly provide a large amount of water flow when a fire breaks out to extinguish the fire with high efficiency.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Single-stage Pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 1.1-200kw |
| Outlet Size | ≤250mm |
| Flow | 5-497L/s |
| Pressure | 0.3~2.25MPa(3Bar-22.5Bar) |
| Material | ductile iron/stainless steel, etc. |
Products Video
Application Scenario:
- Fire Fighting Systems: The Jockey Multistage Centrifugal Pump is primarily used in fire fighting systems to maintain pressure and ensure continuous water flow. It supports sprinkler systems, hose reels, and hydrant networks, crucial for fire suppression in residential, commercial, and industrial settings.
- Pressure Boosting: Beyond fire safety applications, this pump is also employed in pressure boosting systems where consistent water pressure is essential, such as in high-rise buildings, hotels, and industrial complexes.
- Water Supply Systems: It can be integrated into municipal water supply systems to enhance pressure and reliability during peak demand periods or in areas with inconsistent water pressure.
Product Features
Reliability: Designed to operate continuously with minimal maintenance, ensuring dependable performance in critical fire safety applications.
Ease of Installation: Simplified installation process with standardized connections and mounting options, facilitating integration into new or retrofit projects.
Safety Compliance: Complies with international standards and regulations for fire protection equipment, ensuring adherence to safety codes and requirements.
Low noise and stable operation: The low-noise bearings utilize precision hydraulic component design, and the external water-filled seals on each section not only reduce operating noise but also ensure stable operation.
Easy installation and assembly: The pump's inlet and outlet diameters are the same and located in a straight line. It can be directly installed on the pipeline like a valve.
01
High efficiency and energy saving
Adhering to specialized production, we have uniquemethods for product model selection, mold making, and the casting process of hydraulic components.
02
Advanced process equipment
In order to ensure the assembly performance ofthe productsour company imported advanced parts cleaning equipment from abroad, and each part wascarefully deaned before the final assembly.
03
Unique structure
Install an O-shaped seayears ofg on the mating surface ofthe balance ringand the pump to prevent high-pressure water from entering the balance chamber, reduce balanceplate wear, and extend product service life.
04
Reasonable selection of materials
The material of the balance plate and balance ring can bemade of surfacing carbide, alloy steel or QT600Mn, alloy ductile cast iron according to different userneeds.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: vertical fire pump, China vertical fire pump manufacturers
Product parameters
| Flow: | 5-497L/s |
| Pressure: | 0.3~2.25MPa(3Bar-22.5Bar) |
| Caliber: | ≤250mm |
| Power: | 1.1~200kw |
| Material: | ductile iron/stainless steel, etc. |
| Medium temperature: | -20℃~120℃ (need to explain if it is higher than 80℃) |
| Scope of application: | Suitable for fire water supply and fire protection system pipeline pressurization in various occasions. |
