Submersible deep Well Pumps
Head(H): 25~1000m
Pressure: 0.25MPa~10MPa(2.5Bar~100Bar)
Power: 3~360kw
Liquid Temperature: 0°C~120°C(32°F~248°F)
Outlet Size: ≤600mm
Material: Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, Etc
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of submersible deep well pumps in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable submersible deep well pumps at competitive price from our factory.

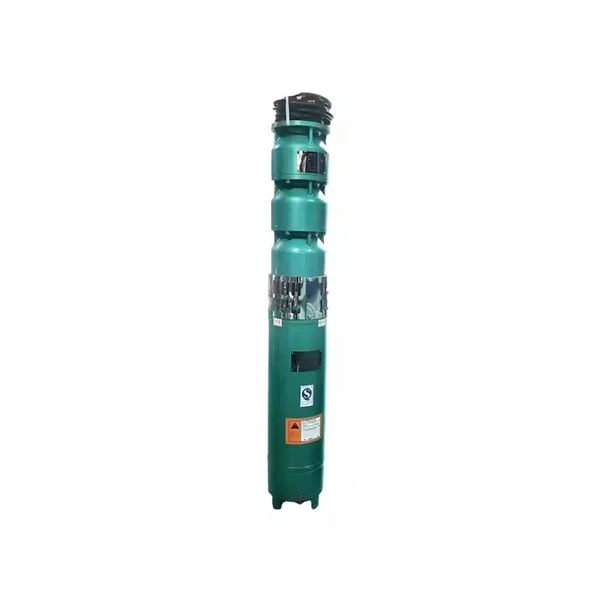

Submersible deep Well Pumps
A submersible deep well pump is an important equipment for deep well water extraction. When in use, the whole unit is submerged in water to pump groundwater to the surface. It is used for domestic water, mine rescue, industrial cooling, farmland irrigation, seawater lifting, ship loading, fountain landscape, etc. Hot water submersible pumps are used for hot spring bathing, and can also be used to extract groundwater from deep wells, and can also be used for water extraction projects such as rivers, reservoirs, and canals.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | multistage pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 3-360kw |
| Outlet Size | ≤600mm |
| Flow | 5-750m³/ H |
| Head | 25-1000m |
| Material | Cast iron/ductile iron, etc. |
Products Video
Product Features
- The compact, vertical, centrifugal, multi-stage design features a high degree of standardization and versatility, making it easy to operate and maintain.
- The complete electric submersible pump includes a pump assembly, motor, drainage piping, waterproof cable, and control panel.
- The submersible motor is filled with clean water for cooling and lubrication. The pressure regulating switch at the bottom of the motor automatically operates to balance pressure fluctuations caused by temperature changes.
- A sand ejector and oil seal frame are installed on the top of the motor, creating a closed operating system to prevent sand and gravel from entering the motor interior.
- The motor is equipped with a water injection port and an exhaust port on the top, and an exhaust port on the bottom.
- The bottom of the motor is equipped with a thrust bearing and ring to withstand the weight of the squirrel-cage rotor and residual axial thrust.
- The stator uses waterproof magnet wire with excellent insulation performance.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: submersible deep well pumps, China submersible deep well pumps manufacturers
Products Parameters
| Flow Rate(Q): | 5~750m³/h |
| Head(H): | 25~1000m |
| Pressure: | 0.25MPa~10MPa(2.5Bar~100Bar) |
| Power: | 3~360kw |
| Liquid Temperature: | 0°C~120°C(32°F~248°F) |
| Outlet Size: | ≤600mm |
| Material: | Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, Etc |
| Application: | Suitable for underground water intake, farmland irrigation, urban, industrial and mining enterprises of water supply and drainage projects, geothermal development and utilization, winter heating projects, etc. |
