Submerged Sump Pump
Head: 5~110m
Caliber: ≤600mm
Pressure: 0.05MPa~1.1MPa(0.5Bar~11Bar)
Power: 0.75~550kw Liquid Temperature:-20°C~120°C(-4°F-248°F)
Material: cast iron/ductile iron/cast steel/stainless steel, etc.
Description
Technical Parameters

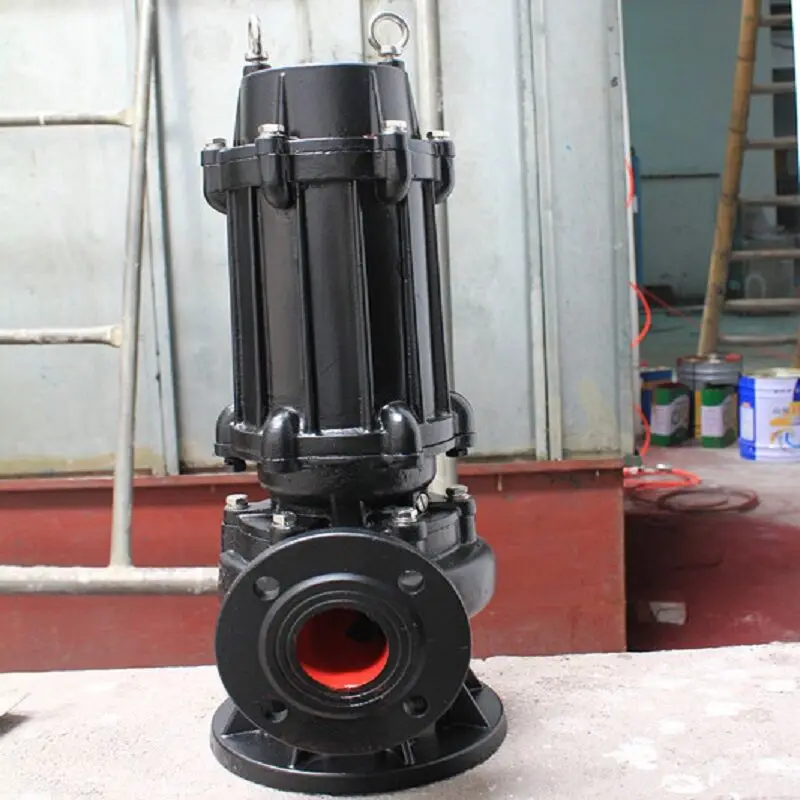

Submerged Sump Pump
Submerged Sump Pump is a kind of equipment used to discharge and transport sewage, usually used to treat industrial wastewater, domestic sewage, etc. Its main feature is that it can work underwater and does not need to be placed above the water surface. Therefore, it is suitable for many special occasions, such as urban sewage treatment, rainwater and sewage discharge, industrial wastewater treatment, building drainage, mine drainage and other industries.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Diesel engine or Electric |
| Brand Name | HNYB |
| Structure | Single-stage Pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 1.1~200kw |
| Caliber | ≤250mm |
| Flow | 5~497L/s |
| Pressure | 0.3~2.25MPa |
| Material | Ductile iron/stainless steel, etc. |
Products Video
Application Scenario:
Urban sewage, industrial sewage, wastewater, mixed water, surface water, raw water, untreated mud water, activated sediment, industrial sediment, and clean water can all be transported, widely used in drainage of buildings, ditches, embankments, tunnels, and land, extraction of raw water, mixed water, natural sewage, and slurry water, treatment and extraction of sewage sediment recycling fluid and garbage, pumping irrigation and drainage surface treatment in open-pit mining, water source protection and water level control etc.
Product Features
- Submersible sewage pumps can transport various media, such as clean water, sewage, and raw water (river water containing solids and fibrous materials).
- They boast excellent overall performance and high head, enabling long-distance, high-head pumping; a single unit can reach a maximum head of 65 meters.
- They are energy-efficient and feature anti-winding, anti-clogging, automatic installation, and control functions. They are particularly effective at discharging solid particles and long-fiber waste.
- They are easy to operate, with low noise and vibration. They can be installed in small, simple pumping stations and can be concealed underground without obstruction. They sink quickly and easily into the liquid along the guide rod, making installation and disassembly flexible and convenient.
- They can automatically control the water level according to user needs and are equipped with automatic protection devices and an electrical control cabinet. They can transport various media, such as clean water, sewage, and raw water (river water containing solids and fibrous materials).
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: submerged sump pump, China submerged sump pump manufacturers
Product parameters
|
Flow rate: |
9~5500m³/h |
|
Head: |
5~110m |
|
Caliber: |
≤600mm |
|
Pressure: |
0.05MPa~1.1MPa(0.5Bar~11Bar) |
|
Power: |
0.75~550kw Liquid Temperature:-20°C~120°C(-4°F-248°F) |
|
Material: |
cast iron/ductile iron/cast steel/stainless steel, etc. |
|
Scope of application: |
Mainly used for the transportation and discharge of sewage containing certain impurities or dirt in municipal engineering, industry, agriculture, construction and other industries, as well as liquid waste containing long fibers. |
