Name: China Submersible Macerator Pump Manufacturers - Submersible Macerator Pump Price - HNYB
Brand: HNYB
SKU: 226100737

Flow rate: 9~5500m³/h
Head: 5~110m
Caliber: ≤600mm
Pressure: 0.05MPa~1.1MPa(0.5Bar~11Bar)
Power: 0.75~550kw Liquid Temperature:-20°C~120°C(-4°F-248°F)
Material: cast iron/ductile iron/cast steel/stainless steel, etc.

Send Inquiry

Description

Technical Parameters

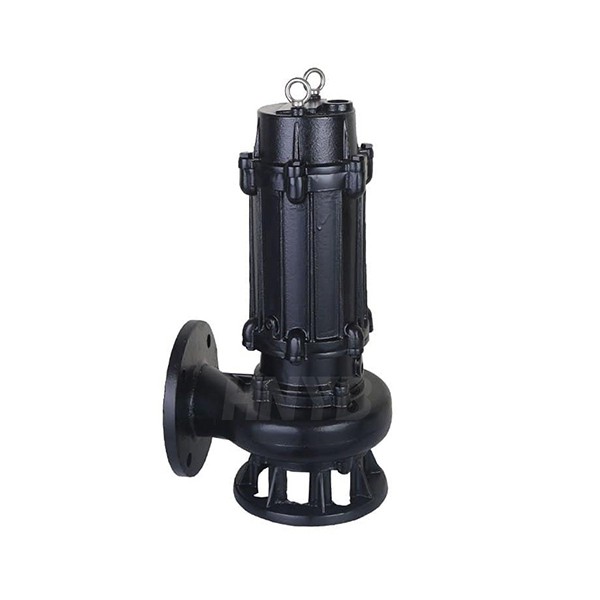

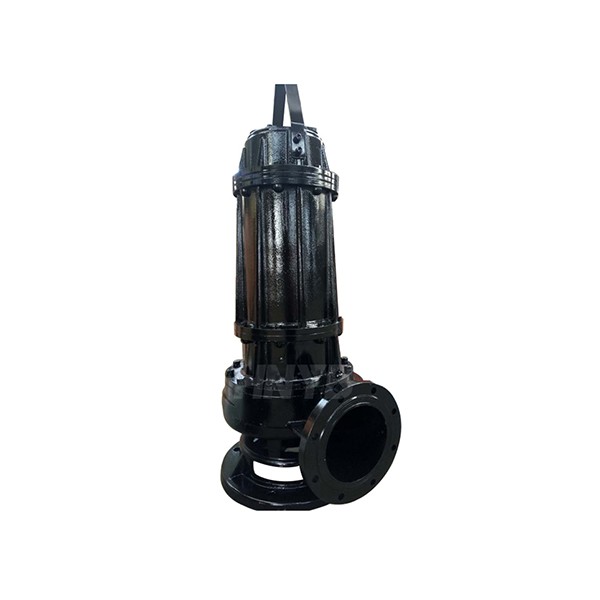

Submersible Macerator Pump

Our Submersible Macerator Pump, designed for the effective disposal of waste in marine and wastewater applications. The pump features a powerful macerator unit that finely shreds solid waste, allowing for easy and efficient transport through the pump. It is mainly used for the transportation and discharge of sewage or liquids containing certain impurities or dirt, as well as long-fiber garbage in industries such as urban sewage treatment, rainwater and sewage discharge, industrial wastewater treatment, building drainage, and mine drainage.

Product Parameter

Customized support	OEM, ODM, OBM
Power Source	Electric
Brand Name	HNYB
Structure	Single-stage pump
Application	Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake
Place of Origin	Henan, China
Power	0.75-550kw
Outlet Size	≤600mm
Flow	9-5500m³/ H
Head	5-110m
Material	Cast iron/ductile iron/cast steel/stainless steel

Products Video

Contact now

Cutting Macerator Automatic Grinder Pumps Wq40-30-7.5 Submersible Sewage Pump for Drainage Systems - Water Pump, Centrifugal Pump | Made-in-China.com

Application Scenario:

Water Treatment
Building Services
Sumps and Basements
Mining
Civil Construction
Industry
Municipal
Processing

Product Features

High-strength cast iron pump body structure.
Optional grinder available upon request.
Optional automatic coupling device for easy maintenance and servicing.
Standard low-carbon steel discharge pipe with flange connection.
Multiple impeller options are available to suit various applications and conveyed media, including single-vane, double-vane, or triple-vane impellers.
Double mechanical seals, with tungsten carbide/tungsten sealing surfaces on the pump side and graphite/silicon carbide sealing surfaces on the motor side, ensure effective sealing between the motor and the wet end.

80m3/H Flow 25m Head 11kw Vertical Centrifugal Submersible Sewage Pump for Building Drainage

Product Certification

ISO 9001

ISO14001

ISO45001

CE Product Certification

EAC Product Certification

Verified Supplier

How To Cooperate With Us?

Our address

Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China

WhatsApp Number

+86 158 3619 1545

E-mail

sales@hnybpumps.com

FAQ

01. WHAT'S YOUR MOQ?

Minimum order quantity is 1 piece

02. WHAT'S YOUR PAYMENT TERMS?

T/T, L/C, D/P, D/A ...

03. WHAT CERTIFICATES DO YOU HAVE?

CE, EAC, ISO9001, ISO14001, ISO45001, AAA Credit Enterprise, AAA credit rating, Honest supplier, Honest Entrepreneur, Quality Service Integrity Unit.

04. ARE YOU A MANUFACTURING OR TRADING COMPANY?

We are a water pump manufacturer with more than 30 years of production experience.

05. CAN YOU DO OEM BRAND?

The standard of sprockets can be determined according to different application requirements. The difference between metric sprockets and sprockets built to ANSI standards is that they use different units of measurement for chain specifications.

06. WHAT IS THE DELIVERY TIME?

7-10 days according to customer quantities.

Hot Tags: submersible macerator pump, China submersible macerator pump manufacturers

Flow rate:	9~5500m³/h
Head:	5~110m
Caliber:	≤600mm
Pressure:	0.05MPa~1.1MPa(0.5Bar~11Bar)
Power:	0.75~550kw Liquid Temperature:-20°C~120°C(-4°F-248°F)
Material:	cast iron/ductile iron/cast steel/stainless steel, etc.
Scope of application:	Mainly used for the transportation and discharge of sewage containing certain impurities or dirt in municipal engineering, industry, agriculture, construction and other industries, as well as liquid waste containing long fibers.
