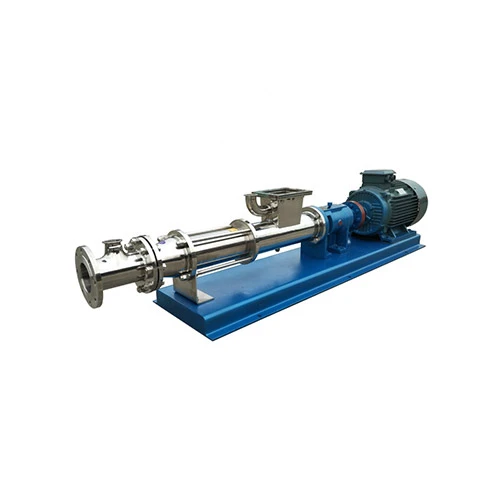

Mono Screw Pump
Pressure: 0.6MPa~1.2MPa(6Bar~12Bar)
Caliber: ≤250mm
Power: 0.75~37kw
Medium temperature: 0~150℃(32°F~302°F)
Material: cast iron/ductile iron/cast steel/stainless steel, etc.
Description
Technical Parameters
Mono Screw Pump
A mono screw pump, also known as a progressive cavity pump, is used to transfer fluids with high viscosity and solids content. This type of pump consists of a single helix rotor that rotates within a double helix stator. As the rotor rotates, cavities are formed between the rotor and stator, and the fluid is transferred through these cavities from the inlet to the outlet. The design of the pump mono screw allows for efficient and gentle pumping of fluids, making it suitable for a wide range of applications such as wastewater treatment, food processing, and oil and gas production. It is a self-priming pump, meaning it can operate with a suction lift without the need for a separate priming mechanism. Additionally, the pump can run at varying speeds, allowing for precise control of flow rates. Overall, the pump mono screw is a reliable and versatile pumping solution for fluids with challenging characteristics, such as high viscosity or abrasive content. It offers efficient transfer of fluids while minimizing damage to the product, making it an essential tool for many industrial applications.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | SCREW PUMP |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 0.75-37kw |
| Outlet Size | ≤250mm |
| Flow | 0.8-150m³/ h |
| Pressure | 0.6~1.2MPa |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Application Scenario:
- Environmental Protection: Industrial wastewater, domestic sewage, sludge, and dirty water containing solid particles and short fibers; particularly suitable for oil-water separators, plate-and-frame filter presses, etc.
- Shipbuilding Industry: Wheel hull cleaning, oil-water, oil stains, oily wastewater, and other media.
- Petroleum Industry: Crude oil, mixtures of crude oil and water, mixtures of coalfield gas and water, polymer injection into formations, etc., significantly reducing costs.
- Pharmaceuticals and Daily Chemicals: Thick pastes, emulsions, and various ointments and cosmetics.
Product Features
High efficiency - Mono screw pumps are known for their high efficiency and can pump fluids with high viscosity with ease.
Low maintenance - Mono screw pumps have a simple design and do not require frequent maintenance, reducing operating costs.
Versatility - Mono screw pumps can handle a wide range of fluids, including abrasive and corrosive materials, making them a versatile choice for different industries.
Low noise - Mono screw pumps operate quietly, reducing noise pollution in industrial settings.
Easy installation - Mono screw pumps are easy to install and can be mounted in various positions, making them adaptable to different environments.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: Mono Screw Pump, China Mono Screw Pump manufacturers
Product parameters
|
Flow rate: |
0.8~150m³/h |
|
Pressure: |
0.6MPa~1.2MPa(6Bar~12Bar) |
|
Caliber: |
≤250mm |
|
Power: |
0.75~37kw |
|
Medium temperature: |
0~150℃(32°F~302°F) |
| Material: | cast iron/ductile iron/cast steel/stainless steel, etc. |
| Scope of application: | Used to transport high-viscosity fluids, media containing hard suspended particles or media containing fibers. |
