Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of magnetic chemical pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable magnetic chemical pump at competitive price from our factory.

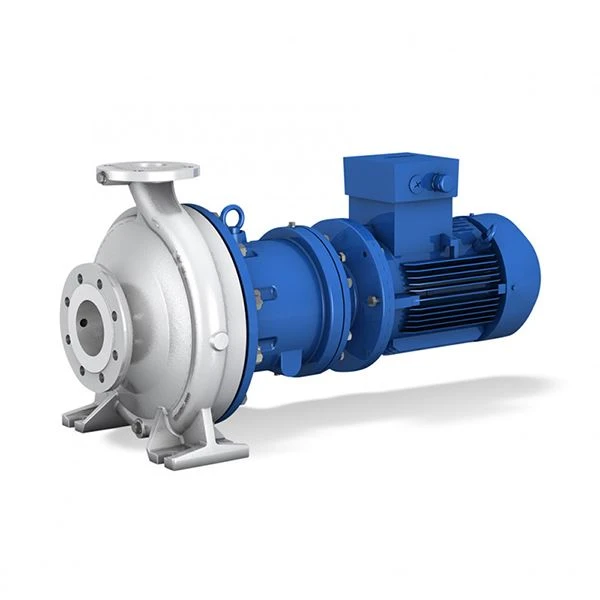

Magnetic Chemical Pump
HNYB Magnetic Chemical Pumps are centrifugal pumps designed for transferring corrosive, hazardous and leakage-sensitive liquids where conventional mechanical seals may create maintenance and leakage concerns.
Instead of transmitting torque through a conventional shaft seal, the pump uses a magnetic coupling and containment shell to transfer motor power to the impeller while isolating the pumped liquid from the drive side.
Corrosion-resistant wetted materials can be selected according to the chemical composition, concentration, temperature and operating conditions of the pumped medium.
Product Parameter
| Parameter | Specification |
|---|---|
| Pump Type | Magnetic Drive Chemical Centrifugal Pump |
| Drive Type | Magnetic Coupling |
| Shaft Seal | Sealless / No Dynamic Shaft Seal |
| Flow Rate | 0.9–50 m³/h |
| Head | 3–50 m |
| Power | 1.5–110 kW |
| Temperature | 0–150°C |
| Materials | Fluoroplastic / Stainless Steel / Alloy |
| Installation | Horizontal / Model Dependent |
| Drive | Electric Motor |
| Application | Chemical Transfer / Process Circulation |
| Medium | Acids / Alkalis / Solvents / Chemical Solutions |
Products Video
application
The Magnetic Chemical Pump is specifically designed for a variety of industrial applications where the precise and safe transfer of corrosive and hazardous chemicals is essential. Its primary uses include:
Chemical Processing: Handling a wide range of corrosive and aggressive chemicals in chemical manufacturing and processing plants.
Pharmaceutical Manufacturing: Transferring pharmaceutical liquids, including high-purity and sensitive substances, ensuring a contamination-free operation.
Water Treatment: Pumping corrosive chemicals, such as acids and disinfectants, in water treatment processes with a focus on preventing leaks and ensuring reliability.
Metal Plating and Finishing: Transferring chemical solutions for metal plating and finishing processes without the risk of contamination or leaks.
Oil and Gas Industry: Suitable for transferring corrosive and abrasive fluids in upstream, midstream, and downstream operations, ensuring reliability and safety.
Product Features
- Tightly Coupled Design: The layout eliminates the need for pump/motor alignment; the integrated double-bolt circular adapter accommodates motors of the required size, maximizing application flexibility.
- Long Coupling (Frame Mount) Design: Easy to disassemble for preventative maintenance, overhauls, or periodic inspections.
- Integrated Enclosed Impeller: Minimizes axial thrust, extending thrust bearing life. Unlike two-piece designs, the integrated structure eliminates the possibility of front cover failure.
- Solid Fixed Shaft: A fully supported fixed design maximizes radial bearing life and reduces shaft deflection. The linear geometry eliminates stress concentration and reduces the likelihood of pump failure during operation.
- Inline Configuration: Another option for magnetic drive chemical pumps is the inline configuration, where the pump is mounted vertically. Inline magnetic drive pumps are typically tightly coupled, but long-coupling configurations also exist. Inline configurations are particularly useful when space is limited, as the pump is mounted directly in the piping, much like a valve.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
info@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: magnetic chemical pump, China magnetic chemical pump manufacturers
Product parameters
| Flow Rate(Q): | 0~450m3/h |
| Head(H): | 0~ 140m |
| Pressure: | 0MPa~1.4MPa(0Bar~14Bar) |
| Power: | 0~ 150kw |
| Liquid Temperature: | -100°C~420°C(-150°F~800°F) |
| Material: | Polypropylene/Plastic/PFA/Stainless Steel/Alloy/PTFE, Etc |
| Application: | Transport most of the acid, alkali and salt solutions, but also suitable for exposure to the outdoor atmosphere, corrosion resistance is better. |
