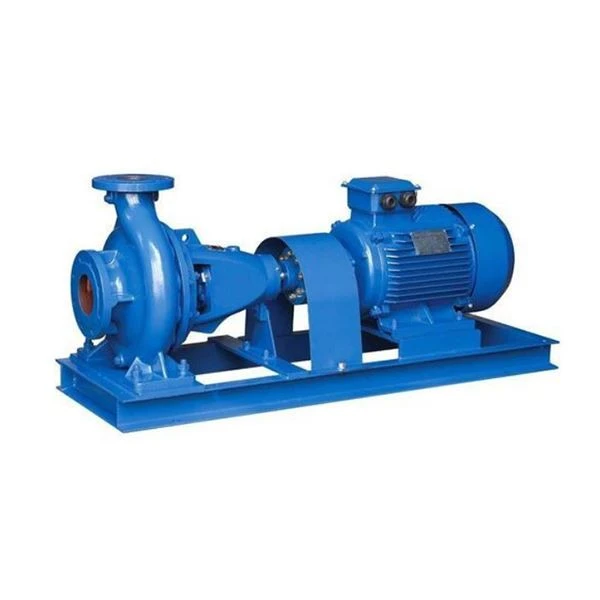

Electric end suction pump
Head: 9-80m
Caliber: ≤500mm
Power: selected based on the viscosity and specific gravity of the liquid
Medium temperature: -20 ℃~120 ℃ (temperature to be specified)
Material: Cast iron/ductile iron/cast steel/stainless steel, etc.
Description
Technical Parameters
Products Description
The electric end suction pump is a type of centrifugal pump with a unique design and a wide range of application scenarios. It is a centrifugal pump with a back-pump structure. When the motor is started, the impeller on the shaft begins to rotate. The rotation of the impeller causes the liquid inside the pump body to be sucked into the pump body and accelerated along the flow path of the blades to the periphery of the pump body. As the liquid is continuously thrown out, the pressure inside the pump body gradually decreases, forming a low-pressure area, so that the external liquid is continuously sucked into the pump body. Finally, the liquid is thrown into the outlet pipe, completing the entire pumping process.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric motor |
| Brand Name | HNYB |
| Structure | Single stage pump |
| Application | Chemical industry, oil refining, paper making, sugar refining, food, pharmaceuticals, synthesis Fiber and other industries. |
| Place of Origin | Henan, China |
| Power | Selected based on the viscosity and specific gravity of the liquid |
| Outlet Size | ≤500mm |
| Flow | 1.1-1450m³/h |
| Head | 9-80m |
| Material | Cast iron/ductile iron/cast steel/stainless steel, etc. |
Products Video
Product Features
- High efficiency and energy saving: Electric end suction pumps usually have an efficient design, which can provide high efficiency and low energy consumption.
- Easy maintenance: Electric end suction pumps adopt a back-pumping structure, which can install and replace components such as impellers, main shafts and bearings without removing the pump casing, greatly simplifying the maintenance process.
- Strong structure: The pump casing has a foot support to resist the dislocation and deformation caused by pipeline load to the greatest extent, ensuring the stable operation of the pump.
- Stable operation: Electric end suction pumps have high operating stability and can provide stable flow and pressure during long-term operation.
Application Scenario
Chemical and petrochemical industries: In the chemical and petrochemical industries, electric end suction pumps are used for applications such as conveying various chemicals, feeding reaction tanks and circulating process fluids.
Food and beverage industries: In the food and beverage industry, electric end suction pumps with hygienic design are ideal for processes such as transporting, mixing and filling liquid foods.
Water and wastewater treatment: Electric end suction pumps are used in water and wastewater treatment plants for pumping water, feeding filtration systems and distributing treated water.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: Electric end suction pump, China Electric end suction pump manufacturers
Product parameters
| Flow rate: | 1.1-1450m ³/ H |
| Head: | 9-80m |
| Caliber: | ≤500mm |
| Power: | selected based on the viscosity and specific gravity of the liquid |
| Medium temperature: | -20 ℃~120 ℃ (temperature to be specified) |
| Material: | Cast iron/ductile iron/cast steel/stainless steel, etc. |
| Application scope: | Widely used in supplying and transporting clean water and other liquids with physical and chemical properties similar to clean water, building water supply, water pipe network boosting, industrial and urban water supply and drainage; gasoline, diesel, kerosene and other petroleum products or liquids with corrosive or special chemical properties |
