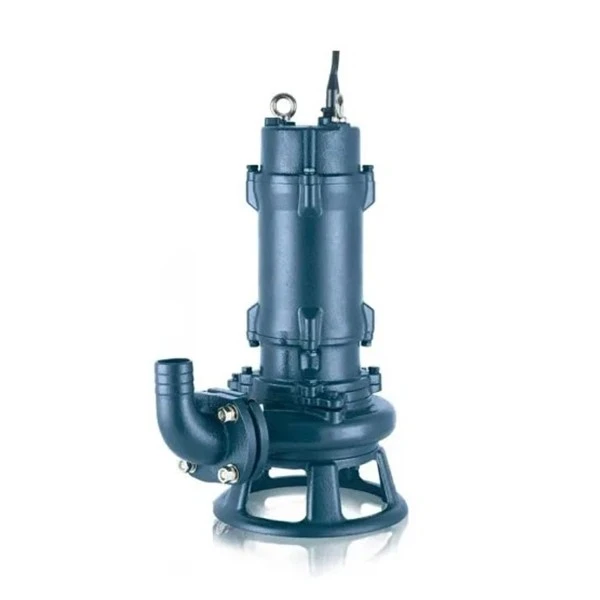

Sewage Waste Pump
Head: 5~110m
Caliber: ≤600mm
Power: 0.75~550kw
Medium temperature: -20℃~120℃ (explanation is required when it is higher than 80℃)
Material: Cast iron/ductile iron/cast steel/stainless steel, etc.
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of sewage waste pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable sewage waste pump at competitive price from our factory.
Sewage Waste Pump
The HNYB Sewage Waste Pump is designed for transferring sewage, wastewater and contaminated liquids in municipal, industrial, commercial and infrastructure applications.
The pump range can be configured with different hydraulic structures according to liquid characteristics, including suspended solids, fibers, sludge and other contaminants.
Depending on the installation requirements, suitable pump configurations can be selected for wet-well installation, fixed pumping stations, drainage systems or other wastewater transfer applications.
HNYB provides customized wastewater pumping solutions based on required flow, head, liquid temperature, solids content, installation method and material requirements.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | single-stage pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 0.75-550kw |
| Outlet Size | ≤600mm |
| Flow | 9-5500m³/ H |
| Head | 5-110m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Structural diagram
| 1. Upper bearing | 2. Thermal protector | 3. Motor shaft | 4. Rotor | 5. Stator | 6. Lower bearing | 7. Oil and water detector |
| 8. Mechanical seal | 9. Oil nozzle | 10. 0il chamber | 11. Rear cover plate | 12. Impeller | 13. Pump body | 14. Stirrer |
Product Features
Compact structure: A sewage waste pump can be installed directly in the sewage pool without building a special pump room, thus saving a lot of land and infrastructure costs.
Corrosion resistance: The pump body, impeller, and other parts are made of corrosion-resistant materials, which can withstand chemical corrosion and mechanical wear in sewage.
Efficient sewage discharge: It has a strong sewage discharge capacity and can quickly treat a large amount of wastewater or sewage and quickly discharge it to a place far away from the source.
Easy to install and maintain: The installation and maintenance of the sewage waste pump is relatively simple. Since its design does not require additional mechanical equipment, the pump can be operated by simply placing it in the water.
Flexible Hydraulic Configurations: Depending on the selected pump series, different hydraulic configurations can be provided for specific wastewater conditions.
Typical Applications
Wastewater Treatment Plants: Submersible pumps are widely used in wastewater treatment plants to lift untreated sewage or wastewater to the treatment plant. These pumps are also used to transport treated wastewater to discharge points.
Residential Sewage Systems: Submersible pumps are commonly used in homes and residential buildings to pump sewage from building septic tanks to municipal sewer lines or underground drainage systems.
Industrial Wastewater Treatment: Many industries generate wastewater containing high concentrations of organic matter and inorganic solids. Submersible pumps are suitable for treating this type of wastewater in industrial plants, factories, and processing plants.
Municipal Sewage Systems: Submersible pumps are used in municipal sewage systems to lift sewage to treatment plants for treatment. These pumps are also used to transport treated wastewater to receiving water bodies.
Mining Industry: Submersible pumps are used for drainage applications in mines, draining water from underground areas, and pumping out sludge or tailings.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: sewage waste pump, China sewage waste pump manufacturers
Products Parameters
Flow rate: 9~5500m³/h
Head: 5~110m
Caliber: ≤600mm
Power: 0.75~550kw
Medium temperature: -20℃~120℃ (explanation is required when it is higher than 80℃)
Material: cast iron/ductile iron/cast steel/stainless steel, etc.
