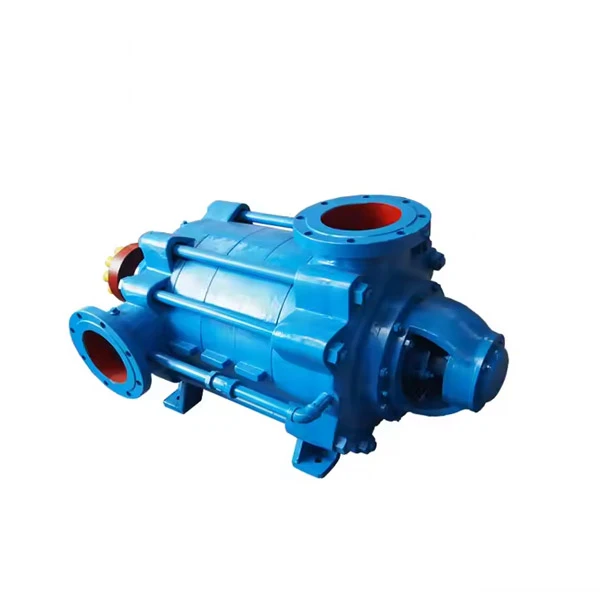

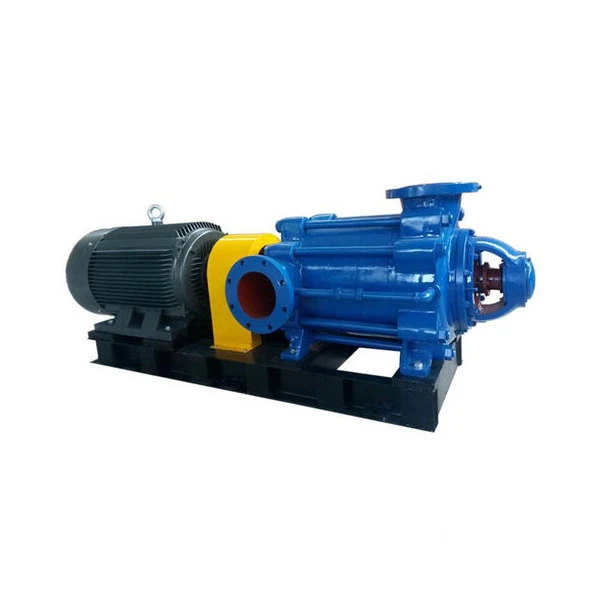

Multistage Centrifugal Pump
Lift: 50~1800m
Caliber:≤300mm
Power: 3~1600kw
Medium temperature: -20℃~150℃ (need to explain if it is higher than 80C)
Material: cast iron/ductile iron/cast steel/stainless steel, etc.
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of multistage centrifugal pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable multistage centrifugal pump at competitive price from our factory.
Products Description
Multistage Centrifugal Pumps consist of two or more impeller stages connected in series. Each stage is mounted on the same shaft and housed in the same housing. Multistage Centrifugal Pumps have long service life, high efficiency, and energy saving. They are very suitable for applications requiring high head and are widely used in various industrial, mining, municipal and agricultural irrigation system applications.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Diesel engine or electric motor |
| Brand Name | HNYB |
| Structure | Multistage Pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 3~1600kw |
| Outlet Size | ≤300mm |
| Flow | 3.7~1350m³/h |
| Head | 50~1800m |
| Material |
Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Structural features
| 1, Inlet section | 13, Packing gland/machine sealing gland |
| 2, Middle section | 14, Packing/mechanical seal |
| 3, Outlet section | 15, Packing ring |
| 4, Guide vanes | 16, Bearing parts |
| 5, Final guide vane | 17, Tail cover |
| 6, Front stage impeller | 18,0-ring seal |
| 7, Last stage impeller | 19, Balance ring |
| 8, Shaft | 20, Balance ring set |
| 9, Shaft sleeve | 21, Balance plate |
| 10, Front stage sealing ring | 22, Balance tube components |
| 11, (Final stage) sealing ring | 23, Tighten the bolts |
| 12, Guide vane sleeve |
Product Features
- High Efficiency: Horizontal multistage pumps are capable of efficiently handling high-pressure and high-flow applications, making them cost-effective for operations requiring significant head.
- Versatile Application: These pumps are used in a variety of settings, including water supply and distribution, boiler feedwater, irrigation systems, pressure boosting, and in various industrial processes.
- Ease of Maintenance: The horizontal layout provides easier access to the pump components, simplifying maintenance and repair tasks without the need for extensive disassembly or vertical space.
- Compact Design: Compared to single-stage pumps capable of achieving similar pressures, horizontal multistage pumps are more compact, saving valuable floor space.
- Smooth Operation: The gradual increase in pressure across the stages allows for smoother fluid handling, reducing the risk of cavitation and damage to the pump components.
Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
Hot Tags: multistage centrifugal pump, China multistage centrifugal pump manufacturers
Product parameters
| Flow range: | 3.7~1350m³/h |
| Head: | 50~1800m |
| Caliber: | ≤300mm |
| Power: | 3~1600kw |
| Medium temperature: | -20℃~150℃ (need to explain if it is higher than 80℃) |
| Material: | Cast iron/ductile iron/cast steel/stainless steel, etc. |
| Scope of application: | Transporting clean water or special liquids that do not contain or contain a small amount of solid particles, mainly used for industrial, mining and urban water supply and drainage, pressurized water supply for high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance water delivery, heating, bathrooms and other hot and cold water circulation pressurization and equipment supporting etc. |
