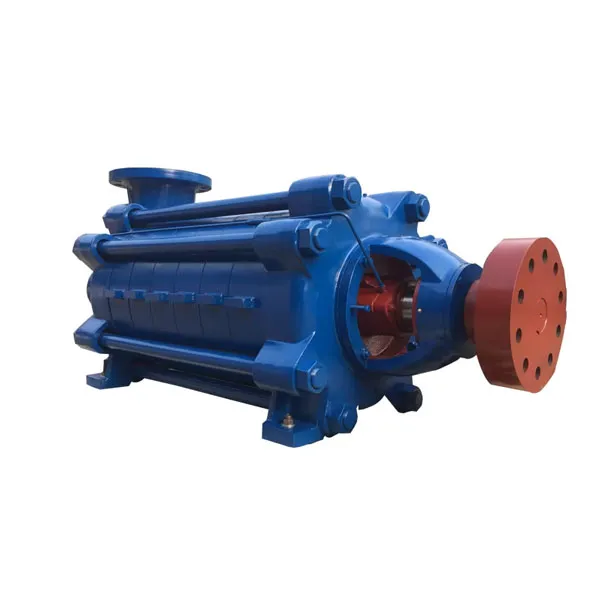

Multi Stage Centrifugal Pump
Head(H): 10~160m
Pressure: 0.1MPa~1.6MPa(1Bar~16Bar)
Power: 1.1~132kw
Liquid Temperature:-20°C~150°C(-4°F-302°F)
Material: Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, Etc
Description
Technical Parameters

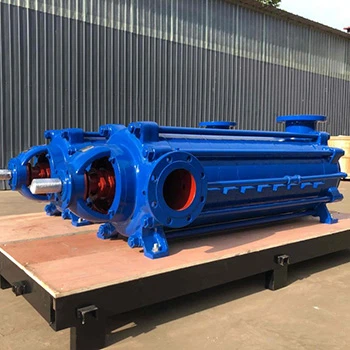

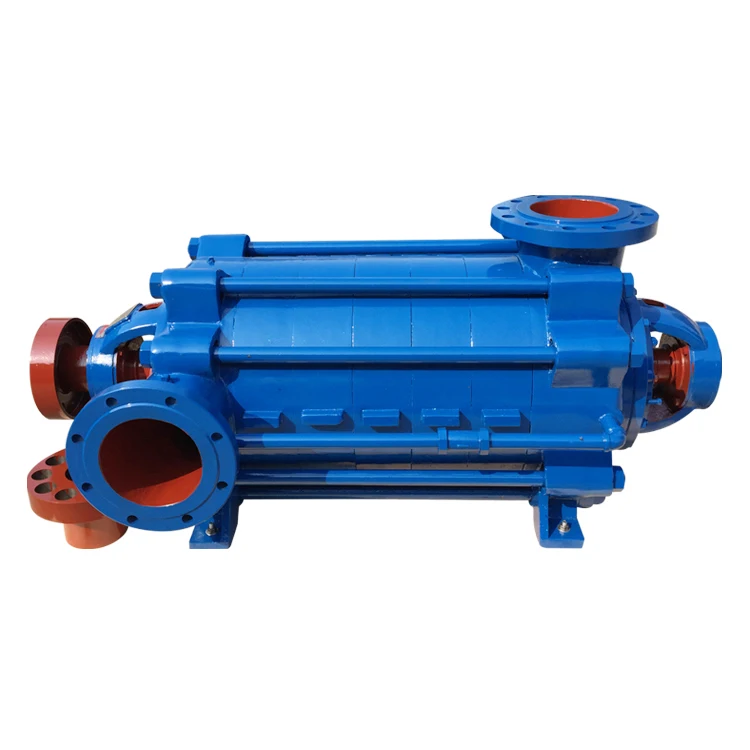

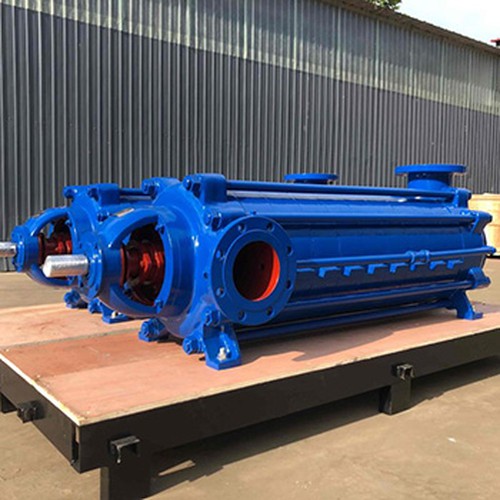

Multi Stage Centrifugal Pump
Multi stage centrifugal pumps are widely used high-pressure pump systems that can be used as booster pumps to transport neutral mineral water and other similar wastewater with a solid particle content not exceeding 1.5% (particle size less than 0.5 mm), and a medium temperature not exceeding 80℃. They are suitable for applications such as steel mill drainage, mine drainage, and sewage transportation. They offer advantages such as high efficiency, a wide performance range, safe and stable operation, low noise, long service life, and convenient installation and maintenance.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Diesel engine or electric motor |
| Brand Name | HNYB |
| Structure | Multistage Pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 3~1600kw |
| Outlet Size | ≤300mm |
| Flow | 3.7~1350m³/h |
| Head | 50~1800m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Application Scenario:
- Mine drainage.
- High-density residential areas.
- Boiler feedwater systems.
- High-pressure cleaning/flushing facilities.
- Irrigation and fire hose supply.
Product Features
The multistage centrifugal pump features a compact structure, small size, attractive appearance, and minimal footprint.
The rotor is supported at both ends by rolling bearings for balanced operation.
The horizontal inlet and upward-facing vertical outlet simplify piping.
The motor has a horizontal design for easy maintenance.
The shaft seal uses either soft packing or a mechanical seal, ensuring excellent sealing performance, reliability, simple structure, and convenient maintenance.
The shaft is connected to all sealing structures, ensuring it does not come into contact with the medium, preventing corrosion and extending service life.
01
High efficiency and energy saving
Adhering to specialized production, we have uniquemethods for product model selection, mold making, and the casting process of hydraulic components.
02
Advanced process equipment
In order to ensure the assembly performance ofthe productsour company imported advanced parts cleaning equipment from abroad, and each part wascarefully deaned before the final assembly.
03
Unique structure
Install an O-shaped seayears ofg on the mating surface ofthe balance ringand the pump to prevent high-pressure water from entering the balance chamber, reduce balanceplate wear, and extend product service life.
04
Reasonable selection of materials
The material of the balance plate and balance ring can bemade of surfacing carbide, alloy steel or QT600Mn, alloy ductile cast iron according to different userneeds.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: multi stage centrifugal pump, China multi stage centrifugal pump manufacturers
Product parameters
| Flow range: | 3.7~1350m³/h |
| Head: | 50~1800m |
| Caliber: | ≤300mm |
| Power: | 3~1600kw |
| Medium temperature: | -20℃~150℃ (need to explain if it is higher than 80℃) |
| Material: | Cast iron/ductile iron/cast steel/stainless steel, etc. |
| Scope of application: | Transporting clean water or special liquids that do not contain or contain a small amount of solid particles, mainly used for industrial, mining and urban water supply and drainage, pressurized water supply for high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance water delivery, heating, bathrooms and other hot and cold water circulation pressurization and equipment supporting etc. |
