Horizontal Multistage Pumps

HNYB horizontal multistage centrifugal pump designed for long-distance water transfer,
high-head applications, and industrial water supply systems.
Widely used in Middle East and African municipal projects, irrigation systems, HVAC,
and industrial booster stations.
Send Inquiry

Description

Technical Parameters

Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of horizontal multistage pumps in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable horizontal multistage pumps at competitive price from our factory.

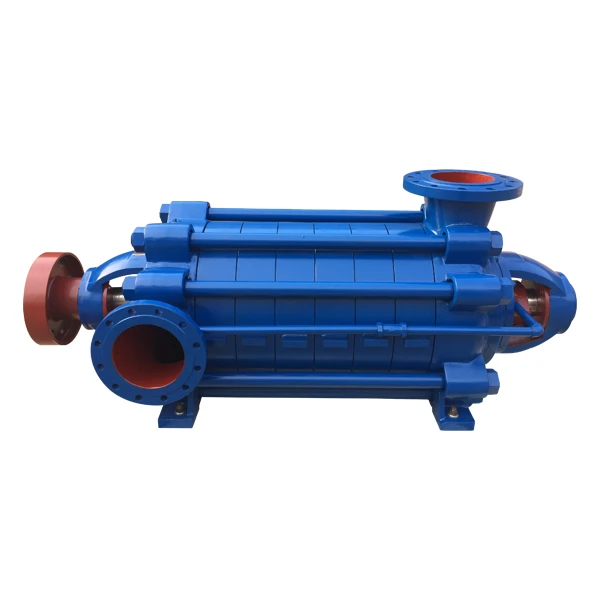

Horizontal Multistage Pumps

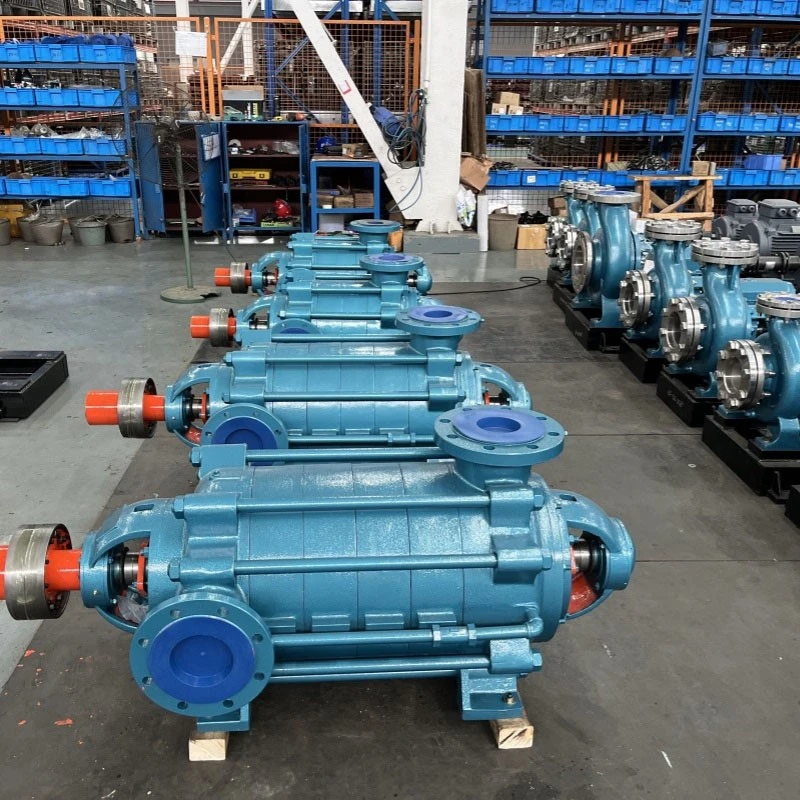

Horizontal Multistage Pumps

The HNYB horizontal multistage pump is a high-performance centrifugal pump designed for applications requiring high pressure, stable flow rates, and continuous operation. This pump features a modular, segmented annular structure, utilizing multiple impellers mounted in series on the same shaft to progressively increase fluid velocity and head. By combining precision-cast fluid channels with a robust structural frame, it gradually increases liquid pressure while maintaining excellent hydraulic efficiency.

The HNYB horizontal multistage pump is designed for applications such as industrial water supply, boiler feedwater systems, mining, irrigation, municipal water supply, and long-distance pipeline transportation. It offers various configurations for clean water, corrosive liquids, hot water, and mine drainage. With flow rates up to 1350 cubic meters per hour and maximum heads up to 1800 meters, it can meet the demands of harsh industrial environments.



Product Parameter



Customized support OEM, ODM, OBM
Power Source Electric
Brand Name HNYB
Structure Multistage Pumps
Application Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake
Place of Origin Henan, China
Power 3-1600kw
Outlet Size ≤300mm
Flow 3.7-1350m³/ H
Head 50-1800m
Material Cast iron/ductile iron/cast steel/stainless steel



Products Video



Contact now



Structural features



product-788-425

1, Linlet section 13, Packing gland/machine sealing gland
2, Middle section 14, Packing/mechanical seal
3, Outlet section 15, Packing ring
4, Guide vanes 16, Bearing parts
5, Final guide vane 17, Tail cover
6, Front stage impeller 18, O-ring seal
7, Last stage impeller 19, Balance ring
8, Shaft 20, Balance ring set
9, Shaft sleeve 21, Balance plate
10, Front stage sealing ring 22, Balance tube components
11,(Final stage) sealing ring 23, Tighten the bolts
12, Guide vane sleeve





Product Applications

Industrial Water Supply

Used for compatible water supply and distribution systems in factories, manufacturing facilities and industrial utility networks.

Long-Distance Water Transfer

Can be considered for water transfer systems where pipeline friction losses, elevation differences and discharge requirements call for a higher total head.

Municipal Water Supply

Suitable for evaluating compatible water transfer and distribution duties in municipal infrastructure and water supply installations.

Agricultural Irrigation

Can be used for irrigation water transfer where the required flow, head and operating conditions fall within the selected model's performance range.

Boiler Feedwater Applications

Certain horizontal multistage pump models may be suitable for boiler feedwater service. The selected configuration must meet the actual boiler pressure, feedwater temperature, materials, sealing and project requirements.

Mining Water Transfer and Drainage

Can be considered for compatible mine water transfer and drainage duties. Abrasive slurry, solids-laden wastewater and chemically aggressive mine water require specific evaluation of the pump design and materials.

Horizontal Multistage Pumps



Structural Features





Horizontal installation

Multi-stage design with diffusers

Robust cast iron casing / optional stainless steel

Close-coupled or baseplate mounting

Mechanical seal

Heavy-duty shaft for high-pressure applications



Product Features



Horizontal Multistage Pumps

Multistage Hydraulic Design

Multiple impellers arranged in series contribute to the total head generated by the pump. This design is suitable for water transfer and pressure-boosting applications requiring a higher head than a comparable single-stage pump can provide.

High Pressure Performance

Multiple impellers connected in series generate significantly higher pressure than single-stage pumps, making them ideal for long-distance water transfer and high-head applications.

High Hydraulic Efficiency

CFD-optimized hydraulic components help reduce energy consumption while maintaining stable performance.

Reliable Continuous Operation

Designed for 24/7 industrial service with heavy-duty shafts, precision bearings, and balanced rotors.

Easy Maintenance

Segmented casing construction simplifies maintenance and replacement of internal components.

Flexible Material Options

Heavy-duty cast iron/ductile iron: High structural density, ideal for standard water purification pressurization and commercial HVAC circuits.

Premium chromium steel (12% chromium grade): Excellent resistance to high-velocity water flow erosion, designed for mine drainage and industrial facilities.

Duplex and super duplex stainless steel (SS32205/SS32507): Superior corrosion-resistant matrix, designed for high-pressure seawater reverse osmosis (RO) and the transport of corrosive chemical fluids.



Certification



ISO9001

ISO 9001

ISO14001

ISO14001

ISO45001

ISO45001

CE

CE Product Certification

EAC

EAC Product Certification

Verified Supplier

Verified Supplier





How To Cooperate With Us?

Our address

Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China

WhatsApp Number

HNYB PUMPS



FAQ





01. WHAT'S YOUR MOQ?

Minimum order quantity is 1 piece

02. WHAT'S YOUR PAYMENT TERMS?

T/T, L/C, D/P, D/A ...

03. WHAT CERTIFICATES DO YOU HAVE?

CE, EAC, ISO9001, ISO14001, ISO45001, AAA Credit Enterprise, AAA credit rating, Honest supplier, Honest Entrepreneur, Quality Service Integrity Unit.

04. ARE YOU A MANUFACTURING OR TRADING COMPANY?

We are a water pump manufacturer with more than 30 years of production experience.

05. CAN YOU DO OEM BRAND?

The standard of sprockets can be determined according to different application requirements. The difference between metric sprockets and sprockets built to ANSI standards is that they use different units of measurement for chain specifications.

06. WHAT IS THE DELIVERY TIME?

7-10 days according to customer quantities.



Hot Tags: horizontal multistage pumps, China horizontal multistage pumps manufacturers, Boiler Feed Water and Booster Pump, Centrifugal Boiler Feed Water Pump, High Pressure Horizontal Multistage Centrifugal Pump, High Pressure Water Motor Centrifugal Pump, Horizontal Multistage Electric Feeding Pump, Multistage Boiler Feed Water Pump



Product parameters
Flow range: 3.7~1350m³/h
Head: 50~1800m
Caliber: ≤300mm
Power: 3~1600kw
Medium temperature: -20℃~150℃ (need to explain if it is higher than 80℃)
Material: Cast iron/ductile iron/cast steel/stainless steel, etc.
Scope of application:

Transporting clean water or special liquids that do not contain or contain a small amount of solid particles, mainly used for industrial, mining and urban water supply and drainage, pressurized water supply for high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance water delivery, heating, bathrooms and other hot and cold water circulation pressurization and equipment supporting etc.
