Skid-mounted Diesel-driven Self-Priming Pump
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of skid-mounted diesel-driven self-priming pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable skid-mounted diesel-driven self-priming pump at competitive price from our factory.
Skid-mounted Diesel-driven Self-Priming Pump

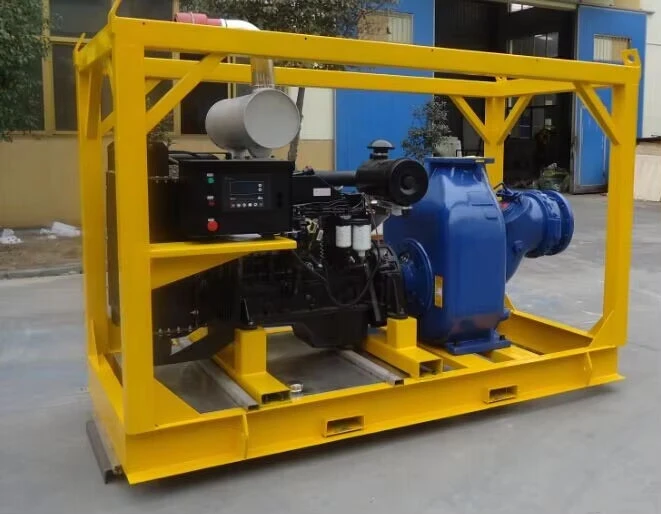

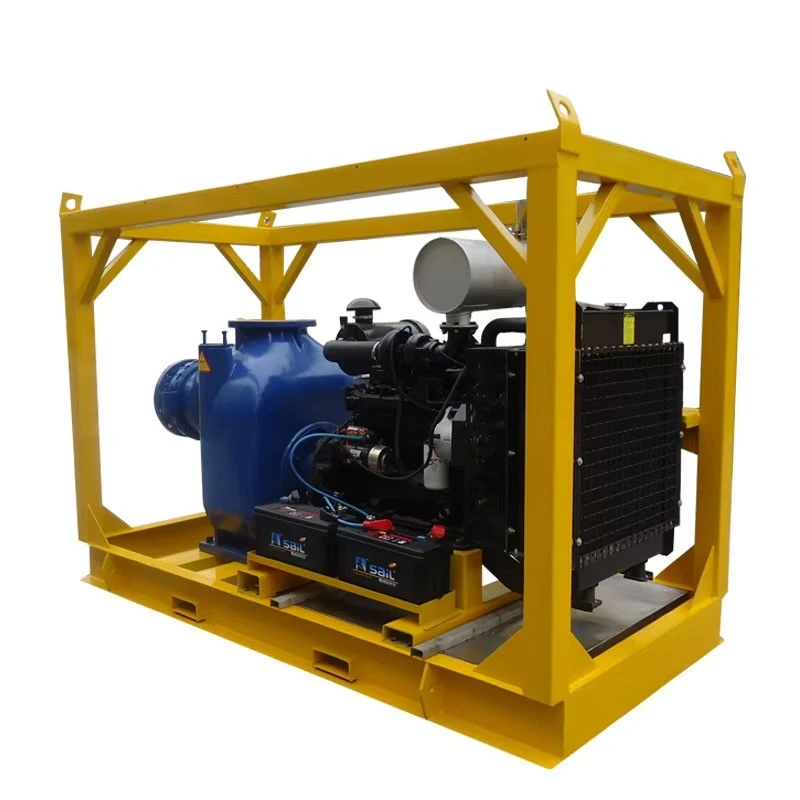

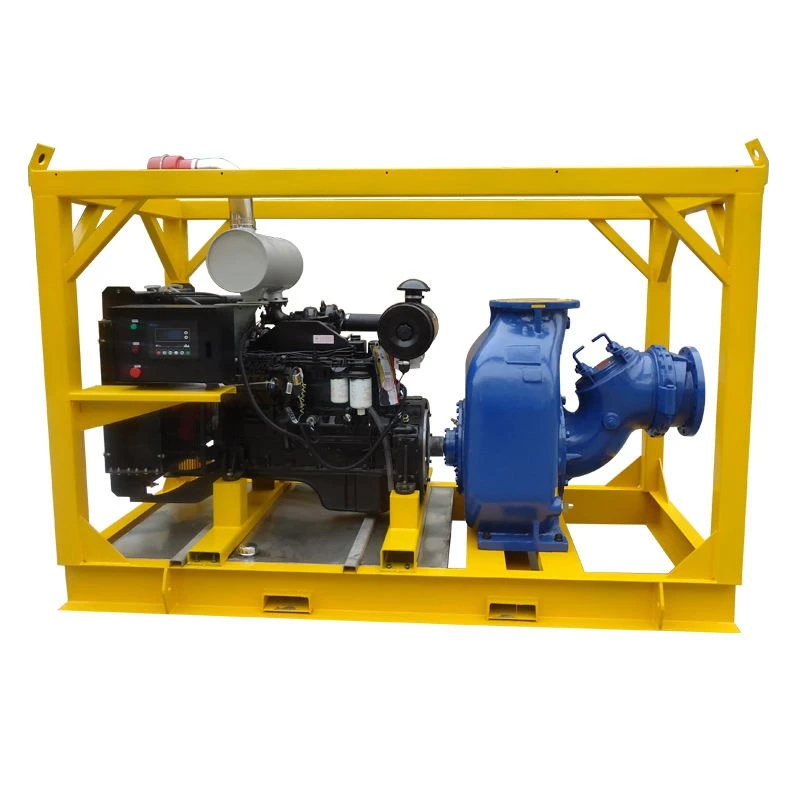

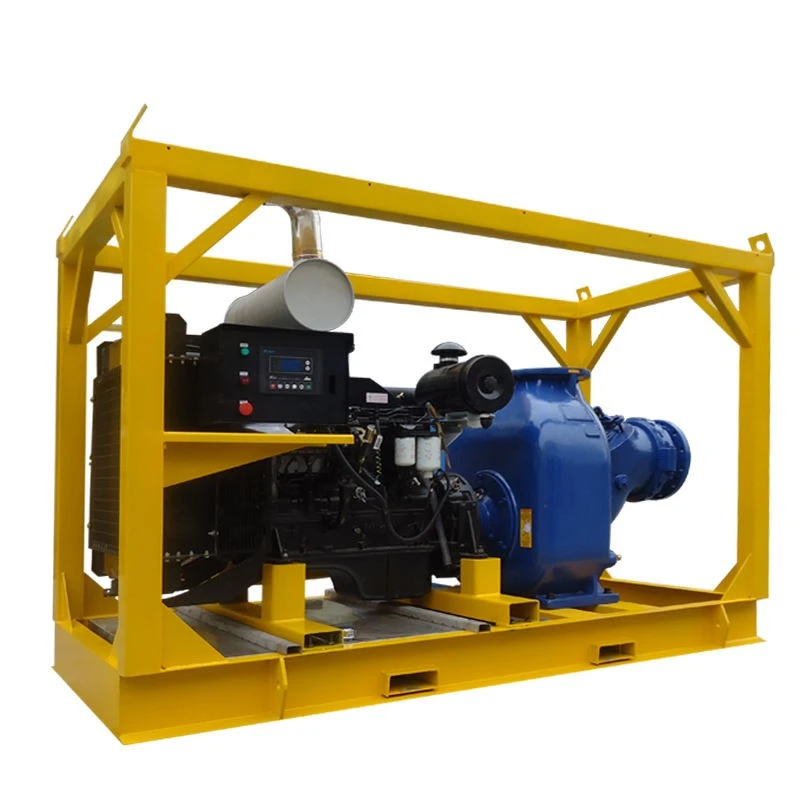

The HNYB skid-mounted diesel-driven self-priming pump integrates a self-priming centrifugal pump and a diesel engine onto a single steel base, providing an all-in-one pumping solution for locations where the power grid is unavailable, unreliable, or unsuitable.
The skid-mounted design consolidates the pump, engine, and specified accessories onto a unified base, offering a convenient installation platform for industrial sites, agricultural projects, construction operations, and emergency water transfer tasks. Its self-priming hydraulic design facilitates the evacuation of air from the suction line and enables the establishment of pumping flow under appropriate operating conditions. Powered by a diesel engine, the unit can transfer water from tanks, reservoirs, rivers, sumps, and other suitable sources.
Designed for applications such as agricultural irrigation, construction site dewatering, emergency flood drainage, and general industrial water transfer, the pump unit can be flexibly configured to meet specific requirements regarding flow rate, total head, suction conditions, water quality, and the installation environment.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Diesel Engine |
| Brand Name | HNYB |
| Structure | Single-stage Pump |
| Application | Mining, Industrial facilities, Irrigation and agriculture, Wastewater transport, and flood control |
| Place of Origin | Henan, China |
| Power | 1.5-110kw |
| Outlet Size | ≤300mm |
| Flow | 3-800m³/ h |
| Head | 12-65m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Main Components of the Skid-Mounted Diesel-Driven Self-Priming Pump
Diesel Engine
The engine supplies mechanical power to the pump. The rated power, speed, cooling arrangement and starting system are selected according to the required duty point and installation environment.
Coupling and Coupling Guard
The coupling transfers rotational power from the engine to the pump shaft. A suitable guard should be provided where required by the equipment design and applicable safety requirements.
Common Steel Skid Base
The skid supports the pump and engine assembly and maintains the specified mounting arrangement. Base dimensions, lifting points, forklift access and anchoring provisions can be defined according to the installation requirements.
Fuel System
A fuel tank and associated fuel connections may be included according to the specified operating duration and package layout.
Fuel capacity should be selected based on engine consumption, expected operating hours and the required refuelling interval.
Starting System
Depending on the engine model, the package may include an electric starter, battery and related starting components.
Control and Monitoring Instruments
Available instruments depend on the selected configuration and may include engine operating indicators, monitoring devices and specified protection functions.
Suction and Discharge Connections
Connections are selected according to the pump model and the project piping arrangement. Suction hoses, discharge hoses, valves, strainers and other accessories should be listed separately where they are included in the supply scope.
Typical Applications
Agricultural Irrigation
- Farmland irrigation
- Water transfer to irrigation channels
- Reservoir-to-field water transfer
- Agricultural water distribution
- Temporary irrigation projects
Construction Site Dewatering
- Excavation drainage
- Foundation and construction-site drainage
- Temporary water removal
- Infrastructure construction
- Water transfer between tanks and sumps
Emergency Water Transfer and Flood Response
- Emergency drainage
- Accumulated rainwater removal
- Flood response at suitable sites
- Temporary water transfer
- Backup pumping at industrial facilities
Industrial Water Transfer
- Industrial utility water
- Temporary plant water supply
- Water transfer between tanks
- Process-water transfer for compatible liquids
- Industrial maintenance drainage
Key Features of Skid-Mounted Diesel Self-Priming Pumps
Integrated Skid-Mounted Package
The pump and diesel engine are installed on a common fabricated steel base, creating an integrated package for installation at the designated pumping location.
Diesel Engine Driven
The diesel engine provides mechanical power independently of the electrical grid, making the pump suitable for remote locations, temporary installations and emergency water transfer.
Self-Priming Hydraulic Design
The self-priming arrangement helps evacuate air from the suction line and establish water flow without relying on a continuously flooded suction arrangement, within the limits of the selected model.
Flexible Installation
The skid base provides a compact installation platform for industrial sites, agricultural pumping stations, construction projects and other designated pumping locations.
Pump and Engine Matching
The hydraulic pump and diesel engine are selected as a coordinated system. The required flow, total head and operating conditions determine the pump model and shaft-power requirement, which in turn guide engine selection.
Application-Based Material Selection
Depending on the selected pump series, materials may include cast iron, ductile iron, cast steel or stainless steel.
Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: skid-mounted diesel-driven self-priming pump, China skid-mounted diesel-driven self-priming pump manufacturers
| Flow Rate(Q): | 3~800m³/h |
| Head(H): | 12~65m |
| Pressure: | 0.12MPa~0.65MPa(1.2Bar~6.5Bar) |
| Power: | 1.5~110kw |
| Liquid Temperature: | -20°C~120°C(-4°F~248°F) |
| Material: | Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, Etc |
| Application: | This series have the function of self-priming, without irrigation water, used to transport water or containing certain particles or impurities of the liquid, containing large particles of solid block, long fiber of dirt, sediment waste mine impurities, feces and engineering sewage. |
