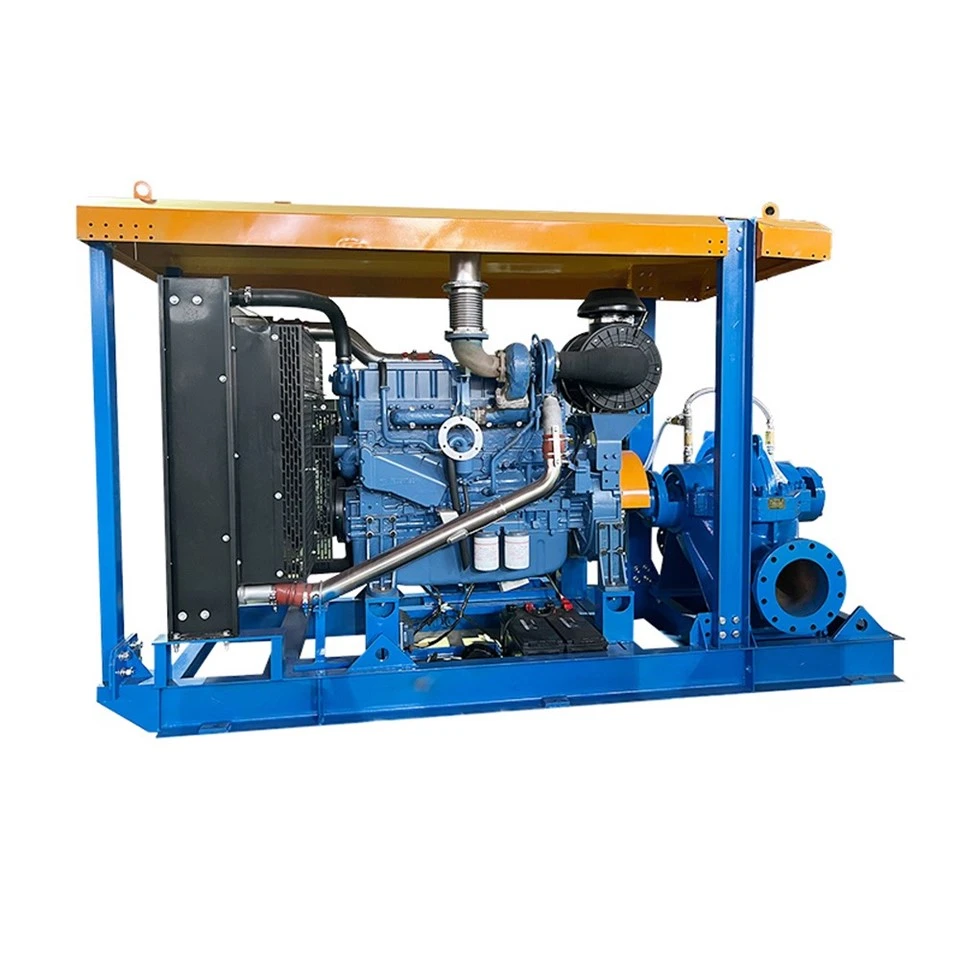

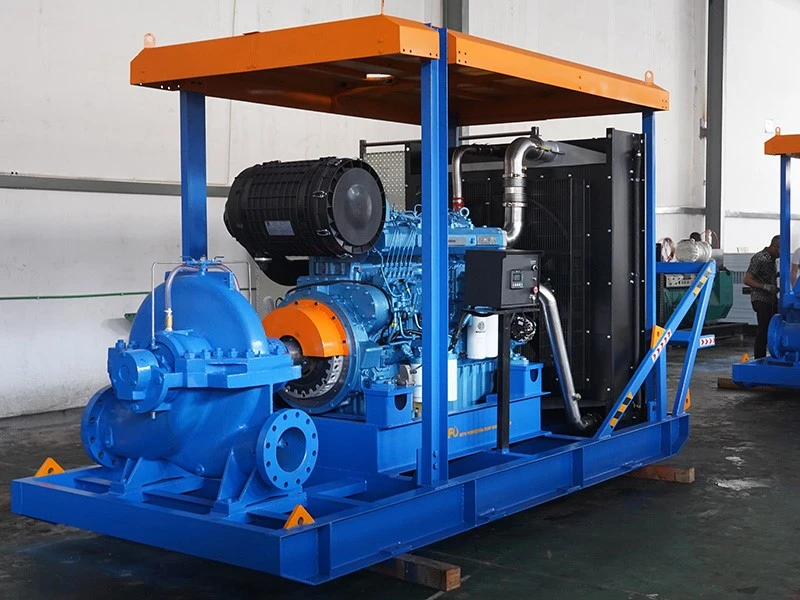

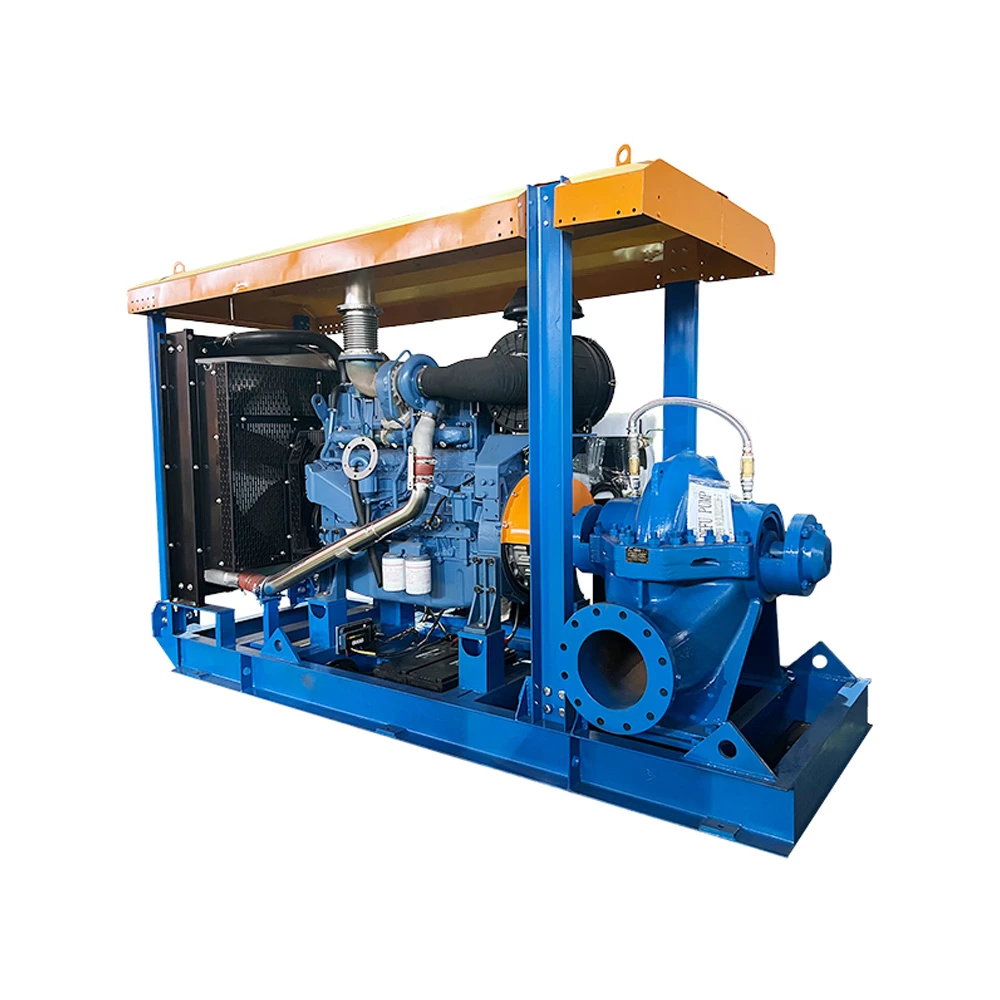

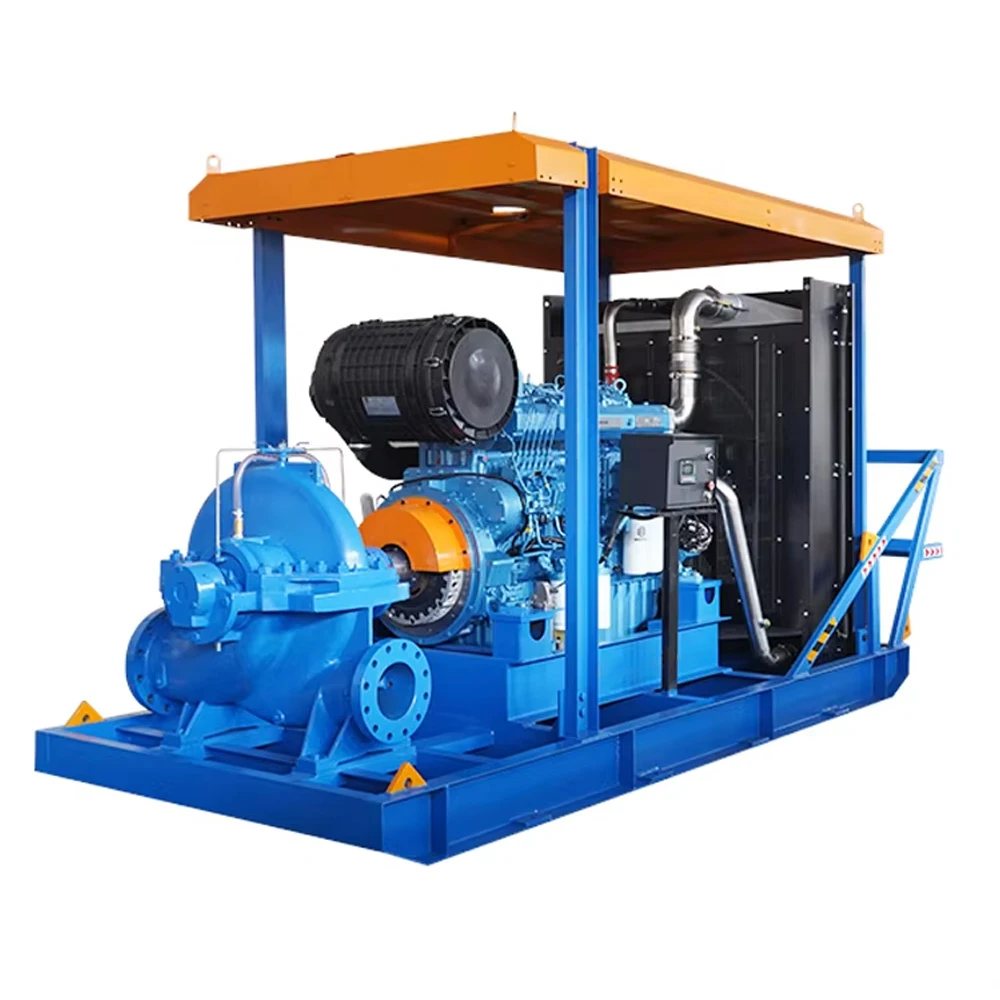

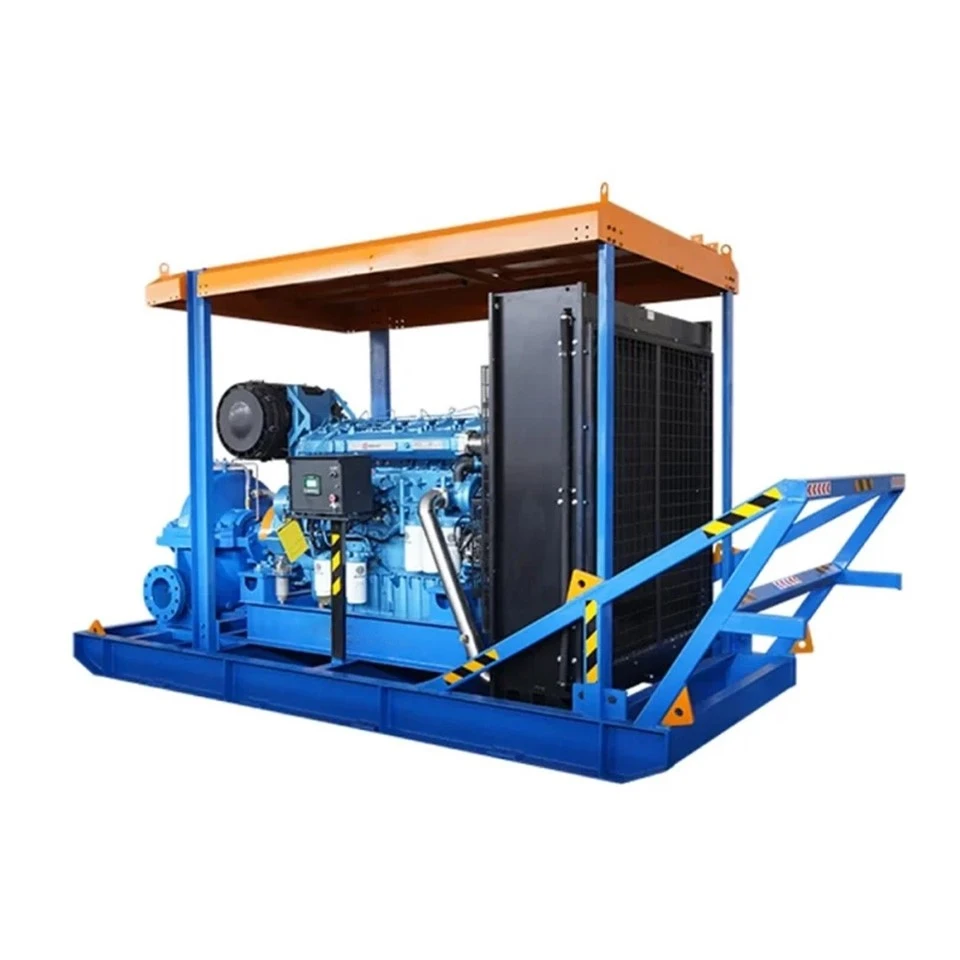

Skid-Mounted Diesel Engine Driven Double-Suction Split Case Pump
HNYB Skid-Mounted Diesel Engine Driven Double-Suction Split Case Pumps combine a horizontal double-suction split-case centrifugal pump with a diesel engine and a common skid-mounted base.
The double-suction impeller is designed for high-flow applications, while the axially split casing allows convenient access to internal pump components during inspection and maintenance. The diesel engine provides an independent power source for applications where grid electricity is unavailable, unreliable or not preferred.
The complete pump set can be configured according to required flow, head, operating conditions, engine power, fuel system, control requirements and installation environment.
What Is a Skid-Mounted Diesel Split Case Pump?
A skid-mounted diesel split case pump is a complete pumping package in which the pump, diesel engine and major supporting components are installed on a common structural skid or base frame.
Instead of supplying the pump as a standalone hydraulic machine, the skid-mounted configuration integrates the pumping and power systems into a transportable package that can be installed at the required site with limited foundation and assembly work.
Depending on project requirements, the package may include the pump, diesel engine, coupling, base frame, fuel tank, control system, battery and starting system, exhaust system, gauges and other accessories.
Pump Parameters
| Parameter | Specification |
|---|---|
| Pump Type | Horizontal Double-Suction Split Case Centrifugal Pump |
| Hydraulic Design | Single Stage / Double Suction |
| Casing | Axially Split |
| Flow Rate | 50–18,000 m³/h |
| Head | 10–260 m |
| Pump Power | 11–2,240 kw |
| Outlet Size | Up to DN1200 |
| Installation | Horizontal |
| Liquid Temperature | Model / application dependent |
| Materials | Cast Iron / Ductile Iron / Cast Steel / Stainless Steel |
Diesel Engine Parameter
| Parameter | Specification |
|---|---|
| Driver | Diesel Engine |
| Engine Rated Power | Selected according to pump shaft power and duty point* |
| Starting System | Electric Start / Project Specific |
| Coupling | Flexible Coupling |
| Skid | Fabricated Steel Common Base |
| Fuel Tank | Optional / Project Specific |
| Controller | Project Specific |
| Exhaust System | Project Specific |
| Instrumentation | Pressure / Speed / Temperature / Engine Monitoring |
Products Video
Typical Applications
- Remote projects and sites lacking a stable mains power supply.
- Mine dewatering and industrial water transport.
- Dewatering for large excavation pits and construction sites.
- Agricultural irrigation and water conservancy projects.
- Flood control and emergency drainage.
- Water transport for factories, steel mills, and industrial facilities.
- Backup pumping units and emergency water supply.
Product Features
High-flow, double-suction design
Engineered for high-volume water transfer and continuous operation.
Independent diesel power
Suitable for remote locations and applications lacking reliable grid power access.
Axially split casing
Facilitates easy access to internal components during inspection and maintenance.
Complete skid-mounted assembly
Pump and diesel driver integrated on a single base for simplified installation and transport.
Flexible project configuration
Engine power, control systems, fuel tanks, materials, connections, and accessories can be configured to meet specific project requirements.
Heavy-duty industrial construction
Suitable for demanding water supply, drainage, and industrial pumping applications, provided the unit is correctly selected for the specific operating point.
Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: skid-mounted diesel-driven double-suction split-case pump, China skid-mounted diesel-driven double-suction split-case pump manufacturers
| Flow(Q): | 50-18000m³/ H |
| Head(H): | 10-260m |
| Pressure: | 0.1MPa-2.6MPa(1Bar-26Bar) |
| Caliber: | ≤1200mm |
| Power: | 11-2240kw |
| Medium temperature: | -20℃-150℃(-4°F-482°F)(above 80 ℃, please specify) |
| Material: | cast iron/ductile iron/cast steel/stainless steel, etc |
