High-quality Stainless Steel Chemical Centrifugal Pump
ISO 2858 standard, corrosion resistant, high efficiency and customized solutions available.
Description
Technical Parameters

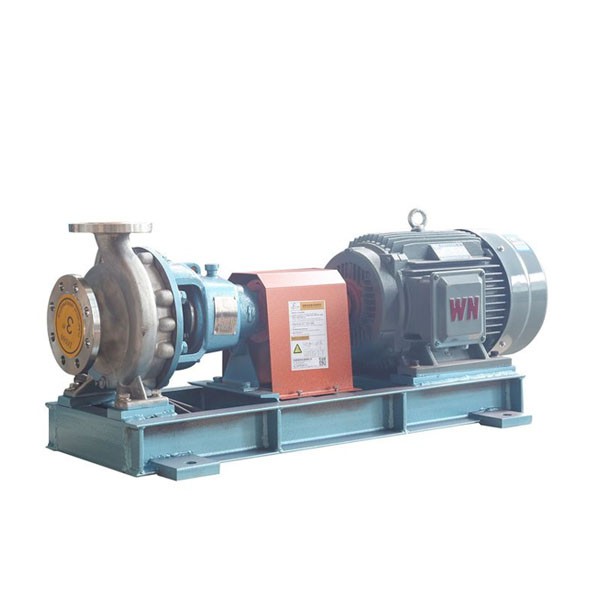

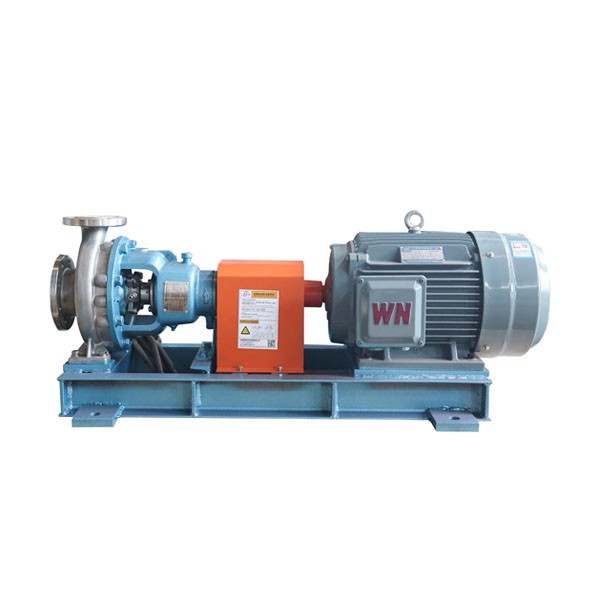

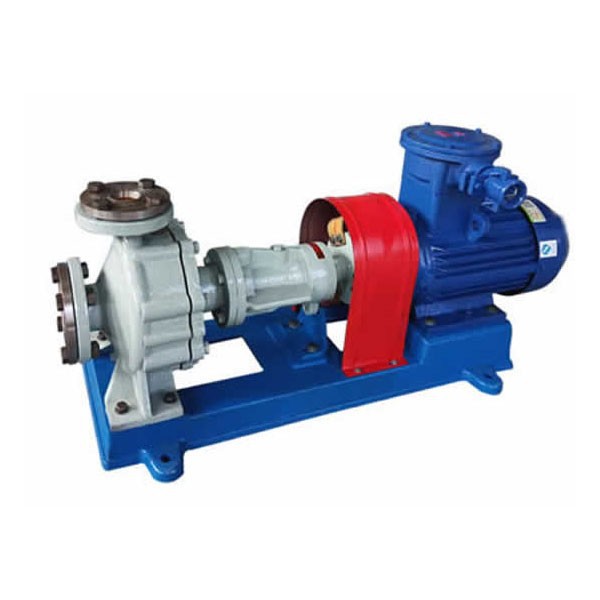

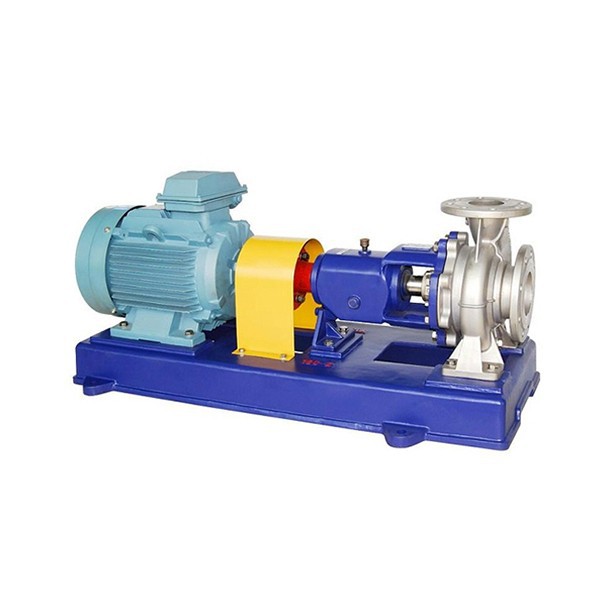

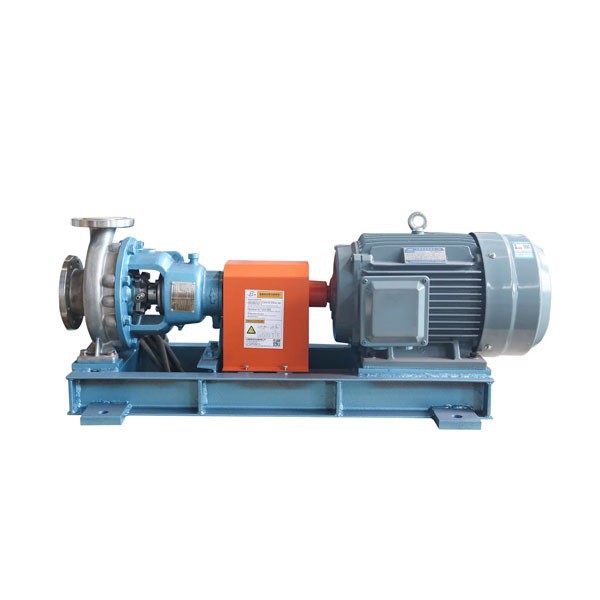

High-quality stainless steel chemical centrifugal pump
High-quality stainless steel centrifugal chemical pumps are chemical pumps made of stainless steel as the main material. Stainless steel has excellent corrosion resistance and can resist the erosion of various chemical media, making it an ideal material for chemical pumps. It is widely used in chemical, petroleum, pharmaceutical, food, environmental protection and other fields, with the characteristics of stable operation, energy saving and high efficiency, and easy maintenance.
Product Parameter
| Parameter | Range |
|---|---|
| Flow Rate | 1.6 – 1200 m³/h |
| Head | 8 – 140 m |
| Pressure | Up To 1.6 MPa |
| Temperature | -20°C To 260°C |
| Motor Power | 0.75 – 355 kW |
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
Products Video
Application Scenario:
- Municipal Water Supply Systems
- Water Treatment Plants
- Flood Control Pump Stations
- Agricultural Irrigation Projects
- Power Plant Cooling Systems
- Industrial Water Circulation
- Mining Water Transportation
- Petrochemical Facilities
- Fire Fighting Water Supply Systems
- Raw Water Intake Stations

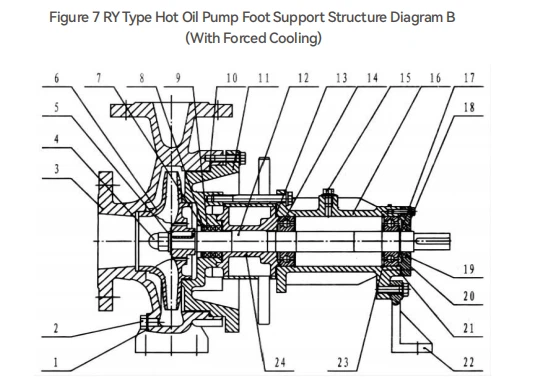

Structural features
| 1. Small Sealing Gasket | 9. Shaft Seal | 17. Oil Seal |
| 2. Oil Drain Plug | 10. Large Sealing Gasket | 18. Bearing Gland |
| 3. Pump Body | 11. Pump Cover | 19. Back-up Ring |
| 4. Impeller Nut | 12. Shaft | 20. Flat Washer |
| 5. Washer | 13. Seal | 21. Gasket |
| 6. Impeller | 14. Bearing | 22. Bracket |
| 7. Back-up Ring | 15. Oil Plug | 23. Back-up Ring |
| 8. Flat Gasket | 16. Bearing Body | 24. Forced Cooling Jacket |
Suitable Media
| Medium Type | Examples |
|---|---|
| Acids | Sulfuric Acid, Nitric Acid, Phosphoric Acid |
| Alkalis | Sodium Hydroxide, Potassium Hydroxide |
| Solvents | Methanol, Ethanol, Acetone |
| Petrochemical Liquids | Hydrocarbons, Process Fluids |
| Industrial Wastewater | Chemical Wastewater |
Product Features
Excellent Corrosion Resistance
Available in SS304, SS316, duplex stainless steel and special alloy materials.
ISO 2858 Standard Design
Fully interchangeable dimensions and performance for global projects.
High Hydraulic Efficiency
Optimized impeller design improves efficiency and reduces operating costs.
Reliable Mechanical Seal
Single seal, double seal and cartridge seal options available.
Long Service Life
Heavy-duty bearing housing and precision machining ensure stable operation.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: high-quality stainless steel chemical centrifugal pump, China high-quality stainless steel chemical centrifugal pump manufacturers
| Flow: | 1.6-1200m³/ H |
| Head: | 8-140m |
| Caliber: | ≤ 300mm |
| Power: | selected based on the viscosity and specific gravity of the liquid |
| Medium temperature: | -20 ℃~260 ℃ (temperature to be specified) |
| Material: | stainless steel |
| Application scope: | It is suitable for conveying various neutral and corrosive liquids (acids, alkalis, salts and liquid petrochemical products of various concentrations, etc.), and is widely used in refineries, petrochemicals, chemical industry, paper and sugar industry and general process industries. |
