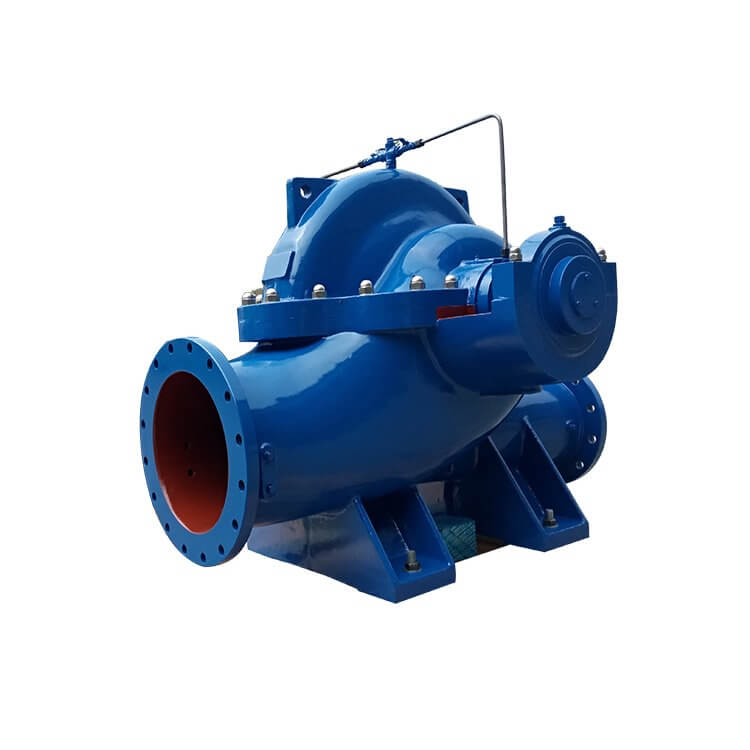

Split Case Centrifugal Pump
Head(H):10-260m
Pressure:0.1MPa-0.26MPa(1Bar-26Bar)
Caliber:≤ 1200mm
Power: 11-2240kw
Medium temperature:-20℃-150℃(-4°F-302°F)(above 80 ℃, please specify)
Material: cast iron/ductile iron/cast steel/stainless steel, etcifferent application needs.
Description
Technical Parameters
Split Case Centrifugal Pump
A split case centrifugal pump is a centrifugal pump with two single suction impellers or one double suction impeller supported by bearings. The pump casing is axially split with suction and discharge flanges facing each other. This facilitates the maintenance of the pump.
Split case centrifugal pumps are typically used to transport low viscosity liquids such as clean water with average head and unsaturated wastewater generated in industrial processes. It can be applied to higher flow conditions that are not suitable for end suction pumps, such as fire pumps, portable water distribution, plant feed water, pipelines, cooling water and other industrial process streams with fairly thin fluids.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric motor |
| Brand Name | HNYB |
| Structure | Centrifugal pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 11~2240kw |
| Outlet Size | ≤1200mm |
| Flow | 50~18000m³/h |
| Head | 10~260m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Structural features
Products Applications
- Municipal Water Supply: Essential for providing water to cities, towns, and communities.
- Commercial Buildings: Supports water circulation in office complexes, hotels, and malls.
- Industrial Facilities: Used for water distribution in manufacturing plants and industrial sites.
- Large-scale Irrigation: Ideal for agricultural irrigation and irrigation systems.
Split Case Centrifugal Pump Key Features
Large Capacity: Capable of handling high volumes of water for extensive water supply needs.
Split Case Design: Facilitates easy maintenance and repair without disassembling the piping.
Electric Motor Driven: Ensures reliable and consistent operation for a continuous water supply.
Robust Construction: Built to withstand heavy-duty use and demanding environments.
Efficient Performance: Provides efficient water circulation and distribution for various applications.
Enhanced operational stability: Shorter bearing span reduces vibration and noise, allowing for speed adjustments in a wider range of applications while maintaining reliability.
Easy installation and maintenance: Inlet and outlet are located on the same horizontal axis, facilitating engineering installation and piping layout; the non-adjustable mechanical seal design allows for tool-free replacement, minimizing downtime.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: split case centrifugal pump, China split case centrifugal pump manufacturers
Product parameters
Flow(Q):50-18000m ³/ H
Head(H):10-260m
Pressure:0.1MPa-0.26MPa(1Bar-26Bar)
Caliber:≤ 1200mm
Power: 11-2240kw
Medium temperature:-20℃-150℃(-4°F-482°F)(above 80 ℃, please specify)
Material: cast iron/ductile iron/cast steel/stainless steel, etc
Application scope: The S-type double suction split pump is a horizontal single pole double suction horizontal split centrifugal pump developed by our factory. It is an efficient and energy-saving product suitable for industrial and urban water supply and drainage pumps. It can be used as a drainage or water supply pump for factories, cities, power stations, water conservancy, petroleum, engineering, and other industries. It can also be used for agricultural irrigation and other industries.
