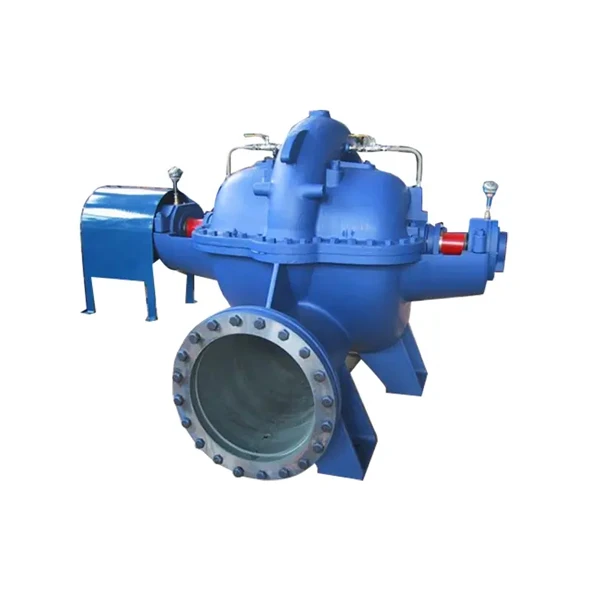

Sewage Axially Split Pump
Head(H): 10-260m
Pressure: 0.1MPa-2.6MPa(1Bar-26Bar)
Caliber: ≤1200mm
Power: 11-2240kw
Medium temperature: -20℃-150℃(-4°F-482°F)(above 80 ℃, please specify)
Material: Cast iron/ductile iron/cast steel/stainless steel, etc
Description
Technical Parameters
Sewage Axially Split Pump
A sewage axial split case pump is a centrifugal pump used in wastewater treatment, capable of handling large volumes of sewage and liquids containing solids. The pump is typically made of durable materials such as cast iron or stainless steel to withstand the corrosive and abrasive nature of sewage and other wastewater. It is ideal for use in sewage treatment plants, industrial plants, and municipal water treatment plants.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric motor |
| Brand Name | HNYB |
| Structure | Single-stage pump |
| Application | Drinking water treatment, Food and beverage industry, Industrial facilities, Irrigation and agriculture, Mining, |
| Place of Origin | Henan, China |
| Power | 11-2240kw |
| Outlet Size | ≤1200mm |
| Flow | 50-18000m³/ H |
| Head | 10-260m |
| Material |
Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Material of flow passage components
| Recommended Material Configuration | |||||
| Item | Clean water | Drink water | Sewage water | Hot water | Sea water |
| Case & Cover | Gray iron (HT250) | S.S304 | Ductile iron (QT500) | Cast Steel | Duplex S.S 2205 |
| Impeller | Gray iron (HT250) | S.S304 | Ductile iron (QT500) | 2Cr13 | Duplex S.S 2205 |
| Wearing ring | Gray iron (HT250) | S.S304 | Ductile iron (QT500) | 2Cr13 | Duplex S.S 2205 |
| Shaft | C.S 45 | S.S420 | 40Cr | 40Cr | Duplex S.S 2205 |
| Shaft sleeve | C.S 45 | S.S304 | S.S304 | S.S304 | Duplex S.S 2205 |
| Remarks: A detailed material list will be provided according to the liquid and site conditions | |||||
Product Features
- The pump utilizes a horizontal or vertical split-axis double-casing design with a carbide or rubber lining for wear and corrosion resistance and high reliability.
- High-efficiency carbide alloys provide low NPSH.
- To meet diverse operating conditions, the bearing components feature a simple structure and a high-load-bearing design, and the alloy bearings are grease-lubricated.
- Adjustable clearance between the guard plate and the impeller ensures efficient pump operation.
- Sealing methods include packing seals, impeller seals, and cartridge mechanical seals to accommodate diverse operating conditions.
- The pump and drive unit can be configured with direct drive, triangular drive, hydraulic drive coupling, or reducer drive.
- The outlet direction can be rotated 8 degrees to accommodate varying on-site installation conditions.
- Multiple units can be connected in series to meet long-distance transport requirements.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: sewage axially split pump, China sewage axially split pump manufacturers
Product parameters
| Flow(Q): | 50-18000m³/ H |
| Head(H): | 10-260m |
| Pressure: | 0.1MPa-2.6MPa(1Bar-26Bar) |
| Caliber: | ≤1200mm |
| Power: | 11-2240kw |
| Medium temperature: | -20℃-150℃(-4°F-482°F)(above 80 ℃, please specify) |
| Material: | Cast iron/ductile iron/cast steel/stainless steel, etc |
| Application scope: | The S-type double suction split pump is a horizontal single pole double suction horizontal split centrifugal pump developed by our factory. It is an efficient and energy-saving product suitable for industrial and urban water supply and drainage pumps. It can be used as a drainage or water supply pump for factories, cities, power stations, water conservancy, petroleum, engineering, and other industries. It can also be used for agricultural irrigation and other industries. |
