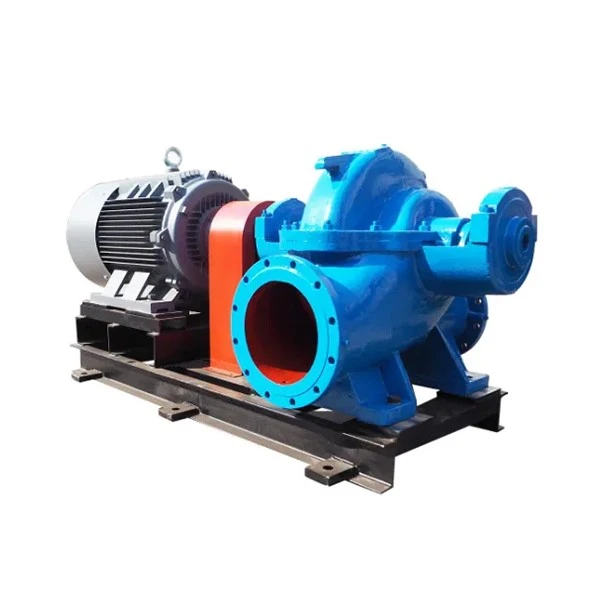

Horizontal Single-Stage Double Suction Pump
Head(H):10-260m
Pressure:0.1MPa-2.6MPa(1Bar-26Bar)
Caliber:≤ 1200mm
Power: 11-2240kw
Medium temperature:-20℃-150℃(-4°F-482°F)(above 80 ℃, please specify)
Material: cast iron/ductile iron/cast steel/stainless steel
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of horizontal single-stage double suction pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable horizontal single-stage double suction pump at competitive price from our factory.

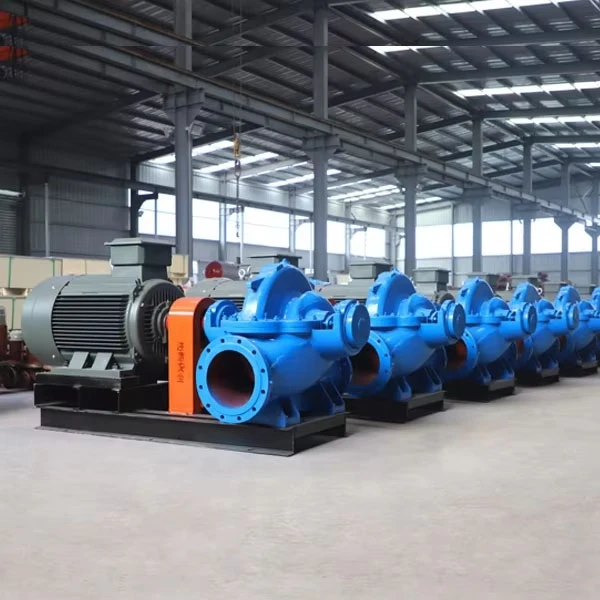

Horizontal Single-Stage Double Suction Pump
The HNYB horizontal single-stage double suction pump is designed for high-flow-rate water delivery and continuous operation applications.
The pump features a double-suction impeller, allowing liquid to enter from both sides of the impeller. This symmetrical hydraulic arrangement helps balance axial forces and provides stable performance in high-flow-rate applications.
The axially split pump casing facilitates the inspection and maintenance of the internal rotating components, making the pump suitable for large-scale water delivery systems such as municipal water supply, industrial cooling, power plants, irrigation, and water conservancy projects.
Product Parameter
| Parameter | Specification |
|---|---|
| Pump Type | Double Suction Split Case Pump |
| Structure | Horizontal Single Stage |
| Impeller | Double Suction |
| Casing | Axially Split |
| Flow Rate | 50–18,000 m³/h |
| Head | 10–260 m |
| Pressure | 0.1–2.6 MPa |
| Power | 11–2,240 kW |
| Outlet Size | ≤1,200 mm |
| Material | Cast Iron / Ductile Iron / Cast Steel / Stainless Steel |
| Temperature | -20°C to 150°C* |
| Drive | Electric / Diesel* |
Products Video
Product Application
Municipal Water Supply
- Raw water intake
- Water treatment
- Water distribution
- Pump stations
Industrial Cooling
- Steel plants
- Petrochemical facilities
- Manufacturing plants
- Cooling water systems
Power Plants
- Circulating water
- Cooling water
- Auxiliary water
Irrigation & Water Conservancy
- Agricultural irrigation
- Reservoir transfer
- Flood control
- Large-scale drainage
Mining
- Mine water supply
- Mine drainage
- Process water
Product Features
Split structure
This pump adopts a split structure, with the pump casing and pump body separated, and both the inlet and outlet located on the pump body. During maintenance, simply lift the pump cover to disassemble the rotor assembly for maintenance; there is no need to disassemble the piping, making it very convenient.
Double-suction impeller
A double-suction impeller draws in liquid from both sides, which can produce more symmetrical hydraulic load conditions and reduce axial thrust compared to many single-suction structures.
Stable operation
Shortening the bearing span reduces vibration/noise, ensuring smoother and quieter operation while maintaining reliability.
Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
FAQ
Q: What is a double suction split case pump?
A: A double suction split case pump is a horizontal centrifugal pump that combines a double suction impeller with an axially split casing. It is commonly used for high-flow water transfer and continuous-duty applications.
Q: What is the advantage of a double suction impeller?
A: The impeller receives liquid from both sides, helping balance hydraulic axial forces and allowing high-flow operation.
Q: Is a double suction pump the same as a split case pump?
A: No. Double suction describes the impeller inlet arrangement, while split case describes the casing construction.
Q: What are double suction split case pumps used for?
A: Typical applications include municipal water supply, industrial cooling, power plants, irrigation, water conservancy and large-scale water transfer.
Q: Are double suction split case pumps suitable for large flow rates?
A: Yes. The current HNYB product range covers flows up to approximately 18,000 m³/h depending on model.
Q: What is the difference between single suction and double suction pumps?
A: Single suction pumps receive liquid from one side of the impeller, while double suction pumps receive liquid from both sides.
Q: Can the pump be used for raw water?
A: Yes. Suitable configurations can be used for raw water intake and municipal or industrial water transfer.
Q: Can the pump be customized?
A: Yes. HNYB supports OEM, ODM and OBM configurations, including materials, hydraulic performance, motor/driver requirements, sealing and connection standards.
Hot Tags: horizontal single-stage double suction pump, China horizontal single-stage double suction pump manufacturers
Product parameters
| Flow(Q): | 50-18000m³/ h |
| Head(H): | 10-260m |
| Pressure: | 0.1MPa-2.6MPa(1Bar-26Bar) |
| Caliber: | ≤1200mm |
| Power: | 11-2240kw |
| Medium temperature: | -20℃-150℃(-4°F-482°F)(above 80 ℃, please specify) |
| Material: | cast iron/ductile iron/cast steel/stainless steel, etc |
| Application scope: |
The S-type double suction split pump is a horizontal single pole double suction horizontal split centrifugal pump developed by our factory. It is an efficient and energy-saving product suitable for industrial and urban water supply and drainage pumps. It can be used as a drainage or water supply pump for factories, cities, power stations, water conservancy, petroleum, engineering, and other industries. It can also be used for agricultural irrigation and other industries. |
