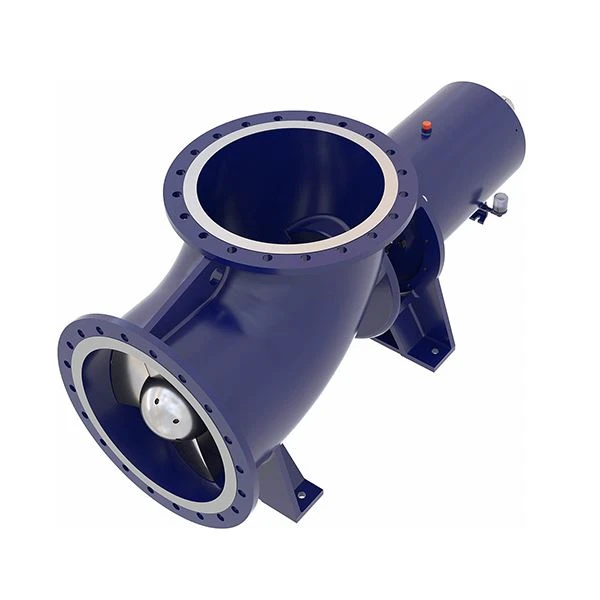

Horizontal Axial Flow Pump
Head(H): 1~15m
Pressure: 0.01MPa~0.15MPa(0.1Bar~1.5Bar)
Power: 15~1400kw
Liquid Temperature: 0°C~50C(32°F~122°F)
Material: Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, Etc
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of horizontal axial flow pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable horizontal axial flow pump at competitive price from our factory.
What Is a Horizontal Axial Flow Pump?
The horizontal axial-flow pump is a high-flow, low-head pump in which the conveyed liquid flows primarily in a direction parallel to the pump shaft. Designed for horizontal installation, it is suitable for applications where the intake and discharge channels are arranged horizontally.
Unlike traditional centrifugal pumps, which primarily generate pressure through radial flow, axial-flow pumps are designed to transport very large volumes of liquid at relatively low heads. Their structural design allows liquid to flow axially, entering and exiting the pump in a straight line. Consequently, compared to other pump types, they offer advantages such as compact size, light weight, smooth operation, high efficiency, and energy savings, making them suitable for applications including municipal drainage, industrial wastewater treatment, and basement drainage.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | Axial Flow Pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 15-1400kw |
| Pressure: | 0.01MPa~0.15MPa(0.1Bar~1.5Bar) |
| Flow | 650-88000m³/ h |
| Head | 1-15m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Product Features
The horizontal axial flow pump's design includes a heavy-duty, thickened metal suction inlet at the bend, stuffing box, and impeller, extending the pump's service life.
High-efficiency impeller with multiple blade angle options
Capable of discharging large volumes of fluid at high flow rates
Equipped with an extra-large capacity lubricating oil sump for better heat transfer
Lower bearing temperatures result in longer service life.
High operating efficiency, low maintenance costs, and long service life.
Product application
Irrigation
For large-volume irrigation systems requiring high flow at relatively low head.
Flood Control & Drainage
For rapid movement of large water volumes during drainage and flood-control operations.
Water Conservancy
For water diversion, pumping stations and river-channel water transfer.
Industrial Cooling
For large-volume cooling-water circulation where the required head is relatively low.
Municipal Water Systems
For raw-water transfer and large-capacity drainage applications.
Hydropower / Auxiliary Water Systems
For suitable low-head, high-flow water circulation duties.
Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
info@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: horizontal axial flow pump, China horizontal axial flow pump manufacturers
Product parameters
|
Flow Rate(Q): |
650~88000m³/h |
|
Head(H): |
1~15m |
|
Pressure: |
0.01MPa~0.15MPa(0.1Bar~1.5Bar) |
|
Power: |
15~1400kw |
|
Liquid Temperature: |
0°C~50C(32°F~122°F) |
| Material: | Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, Etc |
