Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of axial flow pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable axial flow pump at competitive price from our factory.

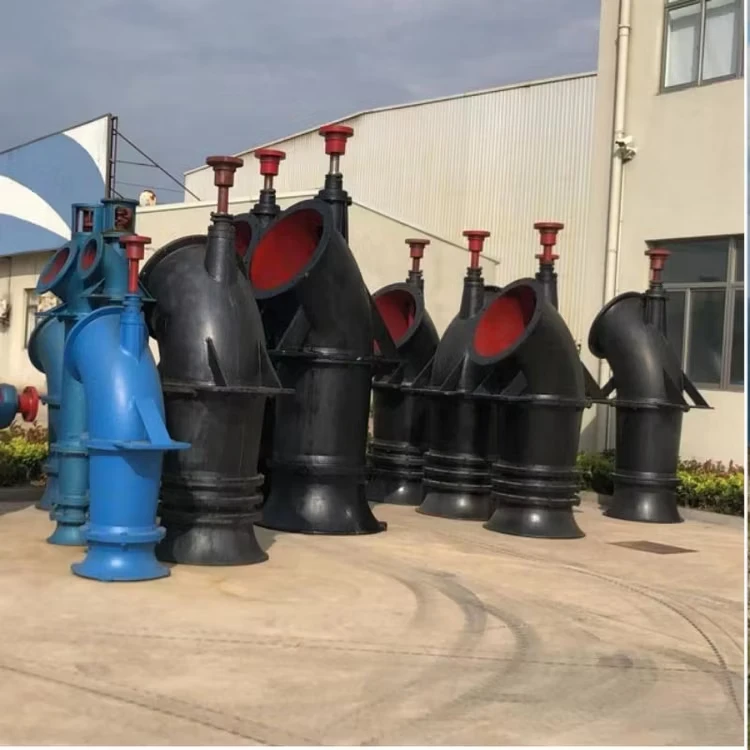

Axial Flow Pump
The HNYB Axial Flow Pump is designed for applications requiring extremely high flow rates at relatively low heads.
Unlike conventional radial-flow centrifugal pumps, the axial-flow impeller moves liquid primarily parallel to the pump shaft, allowing very large volumes of water to be transferred through a relatively direct flow path.
With capacities up to approximately 88,000 m³/h and heads up to 15 m, the pump is well suited to large-scale irrigation, flood control, municipal drainage, water conservancy, raw water transfer, cooling-water circulation and aquaculture applications.
Product Parameter
| Parameter | Specification |
|---|---|
| Pump Type | Axial Flow Pump |
| Flow Rate | 650–88,000 m³/h |
| Head | 1–15 m |
| Power | 15–1,400 kW |
| Pressure | 0.01–0.15 MPa |
| Liquid Temperature | 0–50°C |
| Material | Cast Iron / Ductile Iron / Cast Steel / Stainless Steel |
| Installation | Vertical / Horizontal |
| Drive | Electric Motor / Diesel Engine |
| Medium | Water / Compatible Low-Solid Liquids |
Products Video
Application Scenario:
Agricultural Irrigation
Large-scale farmland irrigation systems.
Flood Control Projects
Emergency drainage and flood prevention pumping stations.
Municipal Drainage
Urban stormwater management and drainage systems.
Water Conservancy Projects
River diversion, reservoirs and pumping stations.
Cooling Water Circulation
Power plants and industrial cooling systems.
Aquaculture
Fish farms and water circulation projects.
Product Features
High Flow Rates: The axial flow design allows for the efficient movement of large volumes of water or fluids, making it ideal for applications requiring high flow rates.
Energy Efficiency: The pump is designed for optimal energy efficiency, ensuring effective fluid transfer while minimizing power consumption.
Versatility: Suitable for diverse applications, including agricultural irrigation, flood control, and industrial processes, showcasing adaptability to varying fluid transfer needs.
Space-Efficient Design: The centrifugal pump's compact design and axial flow configuration make it space-efficient, suitable for installations in areas with limited space.
Reduced Cavitation Risk: Properly designed axial flow impellers can help reduce the risk of cavitation, enhancing the pump's reliability and longevity.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
info@hnybpumps.com
FAQ
Q: What is an axial flow pump?
A: An axial flow pump is a high-flow, low-head pump in which the impeller moves liquid primarily parallel to the pump shaft.
Q: What are axial flow pumps used for?
A: They are commonly used for large-scale irrigation, flood control, municipal drainage, water conservancy, cooling-water circulation and aquaculture.
Q: What is the main advantage of an axial flow pump?
A: Its main advantage is the ability to transfer very large volumes of water at relatively low head. HNYB's current range reaches approximately 88,000 m³/h.
Q: Are axial flow pumps suitable for high pressure?
A: Generally, axial flow pumps are intended for low-head applications. When significantly higher head is required, mixed-flow or radial-flow centrifugal pumps may be more appropriate.
Q: What is the difference between an axial flow pump and a centrifugal pump?
A: Axial flow pumps move liquid mainly parallel to the shaft and are optimized for high flow and low head, while conventional radial centrifugal pumps generate a larger radial change in flow direction and are generally better suited to higher head applications.
Q: Can axial flow pumps be installed vertically?
A: Yes. HNYB lists both vertical and horizontal configurations. The appropriate arrangement depends on water source, pump station design and installation conditions.
Q: Can axial flow pumps be diesel driven?
A: The current HNYB page lists both electric motor and diesel engine drive options.
Q: Can axial flow pumps be used for flood control?
A: Yes. Flood control and emergency drainage are among the applications listed for this product.
Hot Tags: axial flow pump, China axial flow pump manufacturers
Products Parameters
| Flow Rate(Q): | 650~88000m³/h |
| Head(H): | 1~15m |
| Pressure: | 0.01MPa~0.15MPa(0.1Bar~1.5Bar) |
| Power: | 15~1400kw |
| Liquid Temperature: | 0°C~50C(32°F~122°F) |
| Material: | Cast Iron/Ductile Iron/Cast Steel/Stainless Steel, Etc |
