Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of vertically suspended centrifugal pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable vertically suspended centrifugal pump at competitive price from our factory.

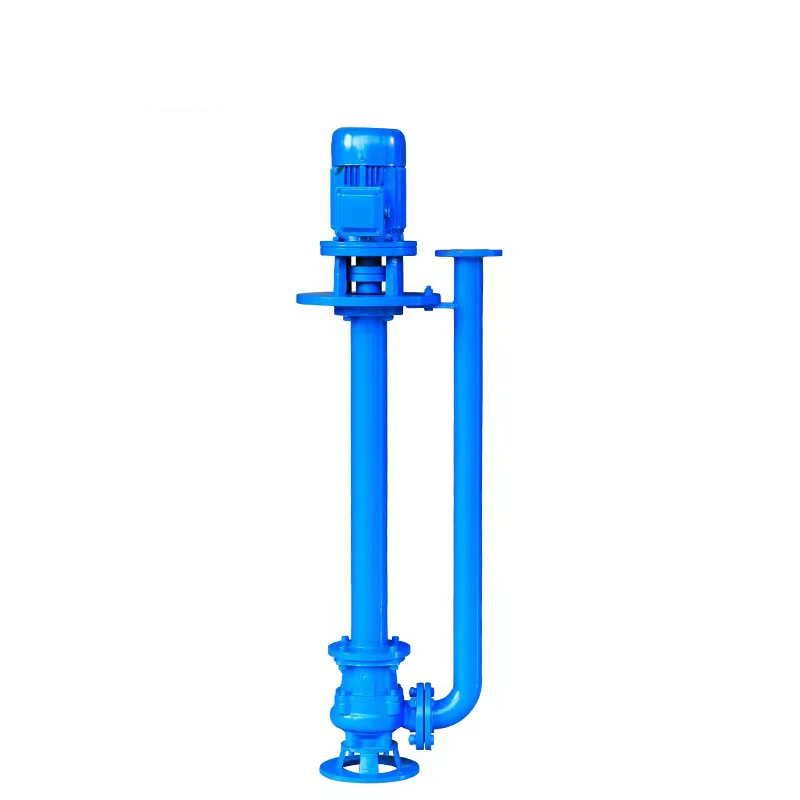

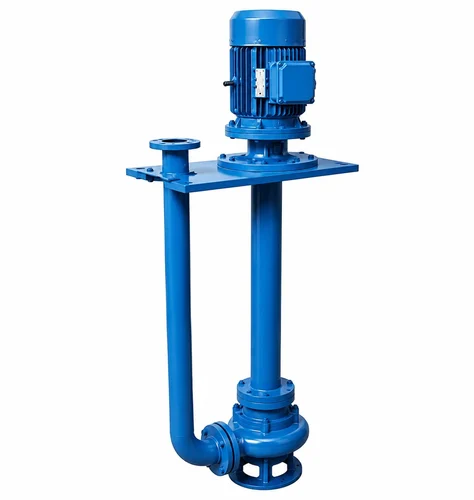

Vertically Suspended Centrifugal Pump
HNYB Vertically Suspended Centrifugal Pumps are vertical suspended centrifugal pumps designed for applications where the hydraulic section operates below the liquid level while the drive motor remains above the liquid surface.
The suspended configuration allows the pump to draw liquid directly from tanks, sumps, pits and process vessels without a conventional long suction pipe. The surface-mounted motor also provides convenient access for inspection and maintenance.
Typical applications include chemical storage tanks, industrial wastewater pits, process vessels, drainage systems and petrochemical liquid transfer.
Product Parameter
| Parameter | Recommended Content |
|---|---|
| Pump Type | Vertical Submerged Centrifugal Pump |
| Structure | Vertical Shaft, Submerged Pump End |
| Flow Rate | 3–200 m³/h |
| Head | 10–45 m* |
| Motor Power | 1.5–55 kW |
| Installation | Vertical, Tank/Sump Mounted |
| Drive | Electric Motor |
| Motor Position | Above Liquid |
| Pump Position | Below Liquid |
| Liquid Temperature | Up to 260°C |
| Shaft Length | Customized According to Tank/Sump Depth |
| Materials | Cast Iron / Ductile Iron / Stainless Steel / Other Materials |
Products Video
Structural features
Product Features
Vertical Installation: The pump features a vertical, space-saving design that facilitates installation in confined areas. The impeller casing is fully submerged in the liquid, eliminating the need for priming or venting. Both in-tank and external mounting configurations are available to suit various applications.
Rugged Construction: The pump features a robust structure with thickened walls, making it suitable for corrosive environments. It requires minimal maintenance. A jacketed casing design allows for the handling of viscous liquids such as molten sulfur and molten lead.
Centrifugal Design: Utilizes a rotating impeller to increase fluid velocity, converting kinetic energy into pressure energy.
Suspended Design: Typically suspended from a baseplate or platform, reducing the need for complex foundation structures.
Applications: Suitable for transporting water, chemicals, and other fluids across industries such as mining, oil and gas, and water treatment.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
Hot Tags: vertically suspended centrifugal pump, China vertically suspended centrifugal pump manufacturers
Products Parameters
Flow Rate(Q): 3~200m³/h
Head(H): 10~45m
Pressure: 0.1MPa~0.45MPa(1Bar~4.5Bar)
Power: 1.5~55kw
Liquid Temperature:-20°C~260°C(-4°F~500°F)
Material: Ductile Iron /Cast Steel /Wear-resistant Metal/Rubber/Stainless steel, etc
Application: Liquid (including viscous liquid) medium with different physical or chemical characteristics used in the conveying tank or tank, according to the structure design and material selection of the conveying medium.
