Horizontal Screw Pump
Head: 0.6~1.2MPa
Caliber: ≤250mm
Power: 0.75~37kw
Medium temperature: 0~150℃
Material: Cast iron/ductile iron/cast steel/stainless steel, etc.
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of horizontal screw pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable horizontal screw pump at competitive price from our factory.

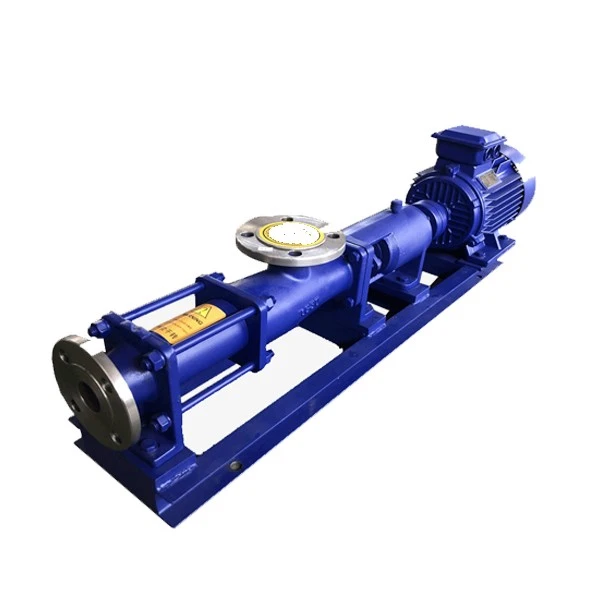

Horizontal Screw Pump
A horizontal screw pump is a rotary positive displacement pump with internal gears, mainly composed of a stator with a double helical cavity and a rotor meshing with the stator in a bushing. When the rotor rotates planetarily around the axis of the stator cavity, the sealed cavity formed between the rotor and the stator will be axially displaced along the helix of the rotor, thereby uniformly, continuously and stably transporting liquid from the suction side to the discharge side.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | Electric |
| Brand Name | HNYB |
| Structure | screw pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 0.75-37kw |
| Outlet Size | ≤250mm |
| Flow | 0.8-150m³/ H |
| Pressure | 0.6MPa-1.2MPa |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Application Scenario:
Environmental protection: Industrial and life sewage treatment, oily water treatment, the delivery of various muddy water with solid particles and short fiber, oil-water separation and waste gas project, measuring the addition of flocculant and its chemical agents.
Petrochemical industry: delivery of clean/heavy oil, acid, alkali, and salt solutions; various viscous, pasty, and milky chemical grouts; oil-water separation and waste oil recycling systems; polymer delivery.
Medicine and food: Deliver medical ointment, syrup, jam, fermentation broth, honey, cream, starch paste, toothpaste, etc.
Paper-making industry: The delivery of various pulp, short stock, slurry and wastewater treatment, chemical measurement, stoichiometry, raw material preparation, coating, and coloring process.
Product Features
- Compact, space-saving design. Utilizes drives and gearboxes with low-speed options to minimize pump wear. Achieves smooth, uniform pumping flow without dampers or condensers, making it particularly suitable for sensitive pumping media.
- Available in various rotor/stator geometries and different shaft seal specifications.
- Reduced material costs due to the driveless housing, flexible coupling, and shared base plate design.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: horizontal screw pump, China horizontal screw pump manufacturers
Products parameters
Flow rate: 0.8~150m³/h
Head: 0.6~1.2MPa
Caliber: ≤250mm
Power: 0.75~37kw
Medium temperature: 0~150℃
Material: cast iron/ductile iron/cast steel/stainless steel, etc.
Applications:
Oil and Gas Transfer
Chemical Processing
Wastewater Treatment
Food and Beverage Processing
Pharmaceuticals
Mining Operations
Marine and Offshore Industries
