Industrial Submersible Dewatering Pump
Head: 5~110m
Pressure: 0.05MPa~1.1MPa(0.5Bar~11Bar)
Power: 0.75~550kw Liquid Temperature:-20°C~120°C(-4°F-248°F)
Material: cast iron/ductile iron/cast steel/stainless steel, etc.
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of industrial submersible dewatering pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable industrial submersible dewatering pump at competitive price from our factory.

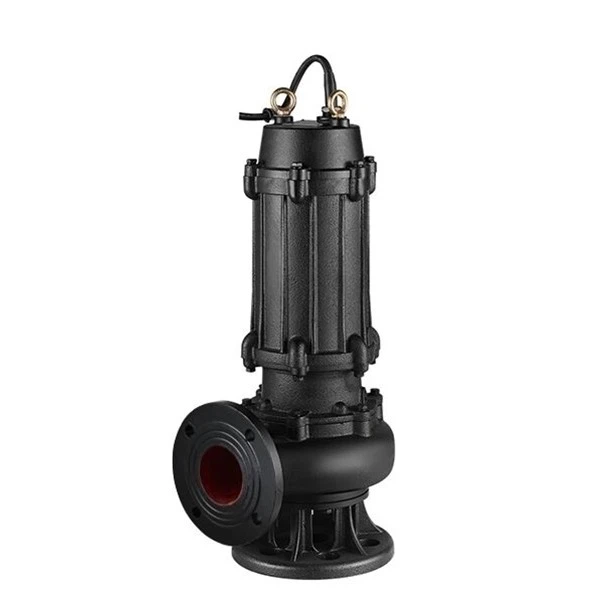

Industrial Submersible Dewatering Pump
The HNYB Industrial Submersible Dewatering Pump is designed for efficient removal and transfer of water in demanding industrial and construction environments.
With a compact submersible structure, the pump can operate directly underwater without external priming equipment. It is suitable for construction dewatering, mining drainage, underground water removal, industrial wastewater transfer and emergency drainage applications.
HNYB provides customized submersible dewatering solutions with different materials, motor powers and hydraulic configurations according to project requirements.
Product Parameter
| Flow Rate | 50 – 18000 m³/h |
| Head | 10 – 260 m |
| Pressure | ≤ 2.6 MPa |
| Power | 11 – 2240 kW |
| Outlet Diameter | ≤ 1200 mm |
| Temperature | -20°C ~ 150°C |
| Drive Type | Electric Motor / Diesel Engine |
| Pump Structure | Horizontal Split Case |
| Materials | Cast Iron, Ductile Iron, Cast Steel, Stainless Steel |
Products Video
Application Scenario:
Mining Industry
- Underground mine drainage
- Open pit drainage
- Slurry water removal
Construction
- Foundation pit drainage
- Tunnel drainage
- Flood water removal
Industrial Facilities
- Wastewater removal
- Sump drainage
- Emergency pumping
Municipal Engineering
- Stormwater drainage
- Drainage stations
Product Features
High-efficiency submersible design: Directly submerged underwater, eliminating the need for an additional water injection system, saving space during installation, and easy to deploy.
Powerful drainage performance: The impeller features a special large-channel structure, significantly improving sewage discharge capacity, effectively passing solid particles with a diameter approximately 50% of the pump inlet diameter.
Rugged and durable cast iron construction: Constructed from cast iron, it can withstand the harsh conditions of sewage and slurry pumping.
Solids handling capacity: Designed to effectively handle solids and filaments in non-corrosive wastewater.
Optional agitator: An optional agitator can be added to help smooth the intake of pumped fluids.
Versatile applications: Suitable for pumping slurry, sewage, wastewater, and drainage in industrial, residential, agricultural, and construction sites.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: industrial submersible dewatering pump, China industrial submersible dewatering pump manufacturers
Product parameters
Flow rate: 9~5500m³/h
Head: 5~110m
Caliber: ≤600mm
Pressure: 0.05MPa~1.1MPa(0.5Bar~11Bar)
Power: 0.75~550kw Liquid Temperature:-20°C~120°C(-4°F-248°F)
Material: cast iron/ductile iron/cast steel/stainless steel, etc.
Scope of application: Mainly used for the transportation and discharge of sewage containing certain impurities or dirt in municipal engineering, industry, agriculture, construction and other industries, as well as liquid waste containing long fibers.
