Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of double suction fire pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable double suction fire pump at competitive price from our factory.

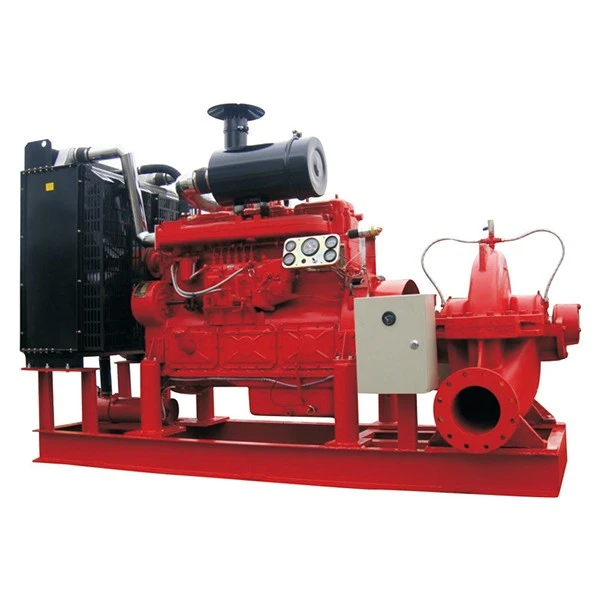

Double Suction Fire Pump
The HNYB Double Suction Fire Pump is a single-stage centrifugal fire pump using a double-suction impeller to provide high-flow water delivery for fire protection systems.
The double-suction arrangement allows water to enter the impeller from both sides, helping balance hydraulic axial forces and making the pump suitable for large-flow, continuous-duty fire-water applications. The split-case construction provides access to the internal hydraulic and rotating components for inspection and maintenance. Depending on the project, the pump can be configured with electric motor or diesel-engine drive, appropriate materials, sealing arrangements and connection standards.
Double-suction fire pumps are widely used in industrial fire protection, commercial buildings, warehouses, high-rise buildings, municipal fire water systems, and large-scale infrastructure projects.
Product Parameter
| Parameter | Specification |
|---|---|
| Pump Type | Double Suction Fire Pump |
| Hydraulic Design | Single Stage Centrifugal |
| Impeller | Double Suction |
| Casing | Axially Split / Split Case |
| Flow Rate | 50–18,000 m³/h |
| Head | 10–260 m |
| Pressure | 0.1–2.6 MPa (1–26 bar) |
| Power | 11–2,240 kW |
| Outlet Size | ≤1,200 mm |
| Drive | Electric / Diesel |
| Material | Cast Iron / Ductile Iron / Cast Steel / Stainless Steel |
| Seal | Mechanical Seal / Packing |
| Temperature | -20°C to 150°C |
Products Video
Structural features
Product Application
Industrial Fire Protection
- Manufacturing plants
- Chemical plants
- Refineries
- Power plants
- Warehouses
Commercial Buildings
- Hotels
- Shopping centers
- Office buildings
- Hospitals
High-Rise Buildings
- Standpipe systems
- Sprinkler systems
- Fire hydrant systems
Large Infrastructure
- Airports
- Stadiums
- Logistics centers
- Large public facilities
Product Features
Split-type structure, double-suction impeller design
The axially split volute design allows for easy access to internal components without disassembling the motor or piping. The double-suction radial impeller allows water to be drawn in from both sides. This reduces the load on the bearings and helps extend the pump's service life.
High efficiency and energy saving
Each model is optimized to balance efficiency and suction head requirements, and the complete product range means that there is a pump for every flow requirement within 10% of the Optimal Efficiency Point (BEP).
Simplified Piping Arrangement
Suction and discharge connections can be arranged to suit the project piping layout, helping simplify installation in selected split-case configurations.
Dynamically Balanced Rotating Assembly
Precision balancing of the rotating components helps minimize vibration and support reliable operation under continuous-duty conditions.
Easy to install and maintain
Featuring a double-casing design, internal inspection and maintenance can be performed without disassembling the motor and coupling. The inlet and outlet flanges are located on the same centerline. The impeller is dynamically balanced to reduce vibration and potential wear.
Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: double suction fire pump, China double suction fire pump manufacturers, Diesel Fire Water Pump, Fire Hose Water Pump, Fire Pump, Petrol Fire Fighting Pump, Residential Fire Pump, Skid Mounted Fire Pump Package
Products Description
Flow(Q):50-18000m ³/ h
Head(H):10-260m
Pressure:0.1MPa-0.26MPa(1Bar-26Bar)
Caliber:≤1200mm
Power: 11-2240kw
Medium temperature:-20℃-150℃(-4°F-302°F)(above 80 ℃, please specify)
Material: cast iron/ductile iron/cast steel/stainless steel, etc
