Diesel Fire Emergency Pump
Head(H): 10-260m
Pressure: 0.1MPa-0.26MPa(1Bar-26Bar)
Caliber: ≤1200mm
Power: 11-2240kw
Medium temperature: -20℃-150℃(-4°F-302°F)(above 80 ℃, please specify)
Material: cast iron/ductile iron/cast steel/stainless steel, etc
Description
Technical Parameters
Henan Yibeng Pump Industry Co., Ltd. is one of the leading manufacturers and suppliers of diesel fire emergency pump in China. We have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy durable diesel fire emergency pump at competitive price from our factory.

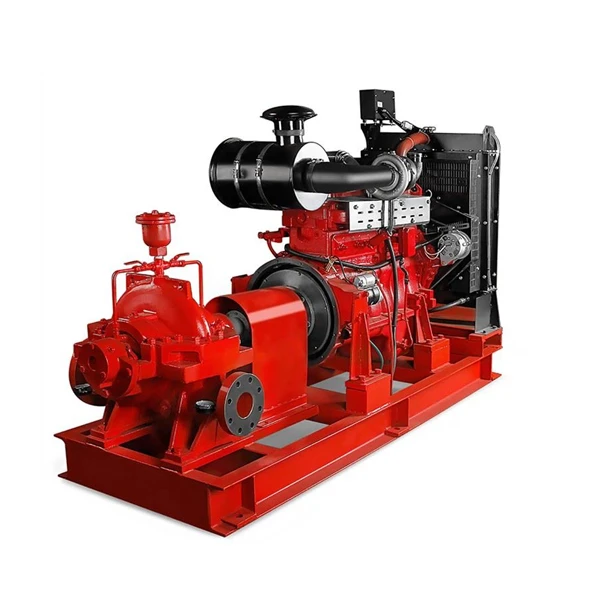

Diesel Fire Emergency Pump
The diesel fire emergency pump is mainly composed of two parts: a diesel engine and a water pump. The diesel engine, as the power source, generates kinetic energy by burning diesel to drive the water pump. The water pump is responsible for pumping water from the water source and pressurizing it to the location where the fire needs to be extinguished. This combination can not only ensure the normal operation of the fire pump in the event of a power outage, but also has the characteristics of rapid startup and stable operation, and is suitable for emergency rescue work in various complex environments.
Product Parameter
| Customized support | OEM, ODM, OBM |
| Power Source | diesel engine |
| Brand Name | HNYB |
| Structure | Single-stage pump |
| Application | Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Mining industry, Raw Water Intake |
| Place of Origin | Henan, China |
| Power | 0.75-550kw |
| Outlet Size | ≤600mm |
| Flow | 9-5500m³/ h |
| Head | 5-110m |
| Material | Cast iron/ductile iron/cast steel/stainless steel |
Products Video
Application Scenario:
High-rise buildings: For high-rise or super high-rise buildings, conventional municipal water supply systems often cannot meet their fire water needs. At this time, installing a diesel fire pump can effectively solve this problem and ensure that sufficient water can be provided in time for fire fighting when a fire occurs.
Petrochemical enterprises: Such enterprises usually have a large number of flammable and explosive substances. Once a fire occurs, the consequences are disastrous. Therefore, it is crucial to equip efficient and reliable diesel fire pumps to improve the fire safety level of enterprises.
Remote areas: In some places far away from the city center and lacking a stable power supply, such as mountainous areas, forests and other nature reserves, diesel fire pumps have become an ideal fire protection solution due to their independent working characteristics of the power grid.
Product Features
Quick start: Diesel fire pumps can usually start automatically and run at full load within 15 seconds, which enables rapid response and timely provision of fire water in emergency situations.
Stable operation: Diesel fire pumps are not affected by insufficient or fluctuating power supply and can operate stably in various environments, especially in areas with unstable or no power supply.
Easy to use: Diesel fire pumps do not require an external power supply or complex control systems. They can be started and run by adding fuel. This simplicity allows them to be quickly put into use in various emergency situations.
Automatic control function: Modern diesel fire pumps are usually equipped with intelligent automatic control systems, which can realize functions such as automatic start, automatic charging, automatic alarm, and automatic preheating, improve the reliability and emergency performance of the equipment, and reduce the burden on operators.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: diesel fire emergency pump, China diesel fire emergency pump manufacturers
Product parameters
| Flow(Q): | 50-18000m ³/ h |
| Head(H): | 10-260m |
| Pressure: | 0.1MPa-0.26MPa(1Bar-26Bar) |
| Caliber: | ≤1200mm |
| Power: | 11-2240kw |
| Medium temperature: | -20℃-150℃(-4°F-302°F)(above 80 ℃, please specify) |
| Material: | cast iron/ductile iron/cast steel/stainless steel, etc |
