SN Series Single-Stage Double Suction Split Case Centrifugal Pump
Description
Technical Parameters
SN Series Split Case Pump Overview
The SN Series Split Case Pump is a horizontal single-stage double suction centrifugal pump specifically engineered for large-capacity water transfer applications.
Featuring an axially split casing and a hydraulically balanced double-suction impeller, the pump delivers high efficiency, stable operation, low vibration and long service life.
The split-case construction allows easy inspection and maintenance without removing suction and discharge piping, significantly reducing downtime and maintenance costs.
SN series pumps are widely used in municipal water supply systems, irrigation projects, flood control stations, power plants, industrial circulation systems and water treatment facilities.
Working Principle
The SN Series pump adopts a double-suction impeller structure. Liquid enters the impeller from both sides simultaneously, effectively balancing axial thrust.
As the impeller rotates, mechanical energy is converted into pressure energy and kinetic energy, enabling high-volume water transportation with excellent hydraulic efficiency.
The symmetrical flow passage design minimizes shaft deflection and bearing load, ensuring reliable operation under continuous-duty conditions.
Product Parameter
| low Rate | 50 – 18000 m³/h |
| Head | 10 – 260 m |
| Pressure | 0.1 – 2.6 MPa |
| Power | 11 – 2240 kW |
| Outlet Diameter | ≤1200 mm |
| Temperature | -20°C ~ 150°C |
| Drive Type | Electric Motor / Diesel Engine |
| Pump Structure | Single Stage Double Suction Split Case |
| Materials | Cast Iron / Ductile Iron / Cast Steel / Stainless Steel |
Products Video
Structure diagram
- Impeller: A double-suction impeller is adopted to reduce axial force
- Volute: Depending on the stress conditions, the double volute type is adopted to reduce radial force, so that the bearing is subjected to less stress and has a longer life.
- Bearing: A grease-lubricated rolling bearing is adopted, which is easy to maintain; the bearing is larger and has a longer service life. The tail end bearing is installed with a sleeve and key, ensuring reliability and ease of disassembly and assembly.
- Shaft: The shaft body is thickened, with good rigidity and a novel The rotor can be reversed in a short time without damage and with convenient reversal. Fully sealed shaft, no contact with liquid, no corrosion on the thread.
- Sealing ring: The replaceable sealing ring protects the pump body from wear. Only the appropriate gap needs to be adjusted to reduce maintenance costs and maintain the efficiency of the pump.
- Shaft seal: High-quality mechanical seal, no leakage, the mechanical seal sleeve is made of stainless steel to avoid corrosion, and for easy maintenance.
Products Applications
- Municipal Water Supply Systems
- Flood Control Pump Stations
- Agricultural Irrigation Projects
- Industrial Water Transfer Systems
- Power Plant Cooling Water Circulation
- Water Treatment Facilities
- Mining Water Supply Systems
- Fire Protection Systems
- Petrochemical Plants
- Raw Water Intake Stations
Products Features
High Flow Capacity:
Designed for large-volume water transportation with flow rates up to 18,000 m³/h.
Double Suction Impeller Design:
Hydraulically balanced impeller reduces axial thrust and extends bearing service life.
High Hydraulic Efficiency:
Optimized flow channels provide outstanding energy efficiency and low operating costs.
Easy Maintenance:
Axially split casing enables quick maintenance without dismantling pipework.
Low Vibration and Noise:
Precision-balanced rotating components ensure smooth and stable operation.
Long Service Life:
Heavy-duty construction and premium materials guarantee reliable performance in demanding applications.
Product Certification
ISO 9001
ISO14001
ISO45001
CE Product Certification
EAC Product Certification
Verified Supplier
Our address
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, China
WhatsApp Number
+86 158 3619 1545
sales@hnybpumps.com
FAQ
01. WHAT'S YOUR MOQ?
02. WHAT'S YOUR PAYMENT TERMS?
03. WHAT CERTIFICATES DO YOU HAVE?
04. ARE YOU A MANUFACTURING OR TRADING COMPANY?
05. CAN YOU DO OEM BRAND?
06. WHAT IS THE DELIVERY TIME?
Hot Tags: sn series single-stage double suction split case centrifugal pump, China sn series single-stage double suction split case centrifugal pump manufacturers
SN150-M4
SN150-N4
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power(kW) |
效率 Efficiency % |
(NPSH) r (m) |
泵重 weight (kg) |
||
|
(m³/h) |
(L/S) |
轴功率 Shaft power |
电机功率 Motor power |
|||||||
|
SN150-M4 |
310 |
96 160 202 |
26.7 44.4 56.1 |
127 120 108 |
2960 |
51.0 71.6 82.5 |
90 |
65 73 72 |
10.2 |
168 |
|
295 |
91 152 192 |
25.3 42.2 53.3 |
114 108 97 |
2960 |
45.1 63.2 72.8 |
75 |
63 71 70 |
10.0 |
167 |
|
|
276 |
85 142 180 |
23.7 39.6 49.9 |
100 95 86 |
2960 |
38.3 53.5 61.6 |
75 |
61 69 68 |
9.8 |
165 |
|
|
257 |
80 131 169 |
22.1 36.9 46.6 |
87 83 74 |
2960 |
32.1 44.1 51.9 |
55 |
59 67 66 |
9.6 |
163 |
|
|
SN150-N4 |
310 |
81 131 171 |
22.6 37.7 47.6 |
123 116 106 |
2960 |
46.6 56.8 69.3 |
75 |
59 73 71 |
10.2 |
166 |
|
295 |
77 124 163 |
21.0 35.1 44.3 |
111 105 96 |
2960 |
41.3 50.0 61.2 |
75 |
57 71 69 |
9.9 |
164 |
|
|
276 |
72 117 153 |
19.5 32.4 40.9 |
97 92 84 |
2960 |
35.2 42.3 51.8 |
55 |
55 69 67 |
9.6 |
163 |
|
|
257 |
68 109 142 |
19.5 32.4 40.9 |
85 80 73 |
2960 |
29.7 35.4 43.3 |
45 |
53 67 65 |
9.4 |
162 |
|
SN150-M6
SN150-N6
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
(m³/h) |
(L/S) |
轴功率 Shaft power |
电机功率 Motor power |
|||||||
|
SN150-M6 |
245 |
96 160 198 |
26.7 44.4 55.0 |
91 79 71 |
2960 |
36.0 43.6 50.4 |
55 |
66 79 76 |
4.0 |
158 |
|
225 |
88 147 182 |
24.5 40.9 50.6 |
75 66 60 |
2960 |
28.2 34.6 40.0 |
45 |
64 77 74 |
3.8 |
154 |
|
|
211 |
83 138 170 |
22.9 38.2 47.3 |
66 58 52 |
2960 |
23.8 29.0 33.6 |
37 |
62 75 72 |
3.7 |
151 |
|
|
201 |
79 131 162 |
21.9 36.4 45.1 |
60 53 47 |
2960 |
21.3 25.8 29.9 |
37 |
60 73 70 |
3.5 |
150 |
|
|
SN150-N6 |
245 |
81 136 168 |
22.6 37.7 46.7 |
88 76 70 |
2960 |
32.9 36.5 42.3 |
45 |
59 77 75 |
3.6 |
145 |
|
228 |
76 126 156 |
21.5 35.8 44.3 |
76 66 60 |
2960 |
27.4 30.1 35.0 |
37 |
57 75 73 |
3.5 |
142 |
|
|
208 |
69 115 143 |
19.9 33.2 41.1 |
64 55 50 |
2960 |
21.7 23.6 27.4 |
30 |
55 73 71 |
3.3 |
140 |
|
|
201 |
67 111 138 |
18.6 30.9 38.3 |
59 51 47 |
2960 |
20.2 21.8 25.4 |
30 |
53 71 69 |
3.2 |
138 |
|
SN150-M7
SN150-N7
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
重量 Weight (kg) |
||
|
轴功率 "Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN150-M7 |
332 |
221 369 443 |
61.5 102.5 123.0 |
146 125 108 |
2960 |
118.2 156.0 169.1 |
200 |
74.5 80.5 77 |
11.0 |
234 |
|
318 |
213 356 427 |
59.2 98.9 118.6 |
135 115 98 |
2960 |
105.8 139.4 149.9 |
160 |
74 80 76 |
10.9 |
233 |
|
|
305 |
205 342 410 |
57.0 95.0 114.0 |
120 102 85 |
2960 |
91.2 120.3 125.8 |
132 |
73.5 79 75.5 |
10.8 |
232 |
|
|
283 |
190 316 379 |
52.7 87.8 105.3 |
104 90 74 |
2960 |
74.1 99.3 102.6 |
110 |
72.5 78.0 75 |
10.7 |
231 |
|
|
260 |
166 277 332 |
46.2 76.9 92.3 |
88 74 64 |
2960 |
55.7 72.5 78.8 |
90 |
71.5 77.0 74 |
10.6 |
230 |
|
|
SN150-N7 |
332 |
171 285 342 |
47.5 79.2 95.0 |
137 120 105 |
2960 |
89.9 118.6 130.4 |
132 |
71 78.5 75 |
10.5 |
233 |
|
305 |
159 265 318 |
44.2 73.6 88.3 |
118 103 89 |
2960 |
73.0 95.9 104.2 |
110 |
70 77.5 74 |
10.3 |
232 |
|
|
283 |
150 250 300 |
41.7 69.4 83.3 |
99 84 74 |
2960 |
58.6 74.8 82.8 |
90 |
69 76.5 73 |
10.1 |
231 |
|
|
260 |
140 234 281 |
39.0 65.0 78.0 |
81 69 59 |
2960 |
45.5 58.2 62.7 |
75 |
68 75.5 72 |
10.0 |
230 |
|
SN150-M9
SN150-N9
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power (kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
(m³/h) |
(L/S) |
轴功率 Shaft power |
电机功率 Motor power |
|||||||
|
SN150-M9 |
206 |
96 160 220 |
26.7 44.4 61.1 |
53 51 41 |
2960 |
20.3 27.4 31.5 |
37 |
68 81 78 |
4.0 |
147 |
|
196 |
91 152 209 |
25.3 42.2 58.1 |
48 45 36 |
2960 |
18.0 23.8 27.2 |
30 |
66 79 76 |
3.9 |
146 |
|
|
175 |
82 136 187 |
22.7 37.8 51.9 |
38 36 29 |
2960 |
13.7 18.0 20.6 |
22 |
62 75 72 |
3.6 |
145 |
|
|
167 |
78 130 178 |
21.6 36.0 49.5 |
35 33 26 |
2960 |
12.2 16.0 18.3 |
22 |
60 73 70 |
3.5 |
144 |
|
|
SN150-N9 |
206 |
81 136 187 |
22.6 37.7 51.9 |
51 49 40 |
2960 |
18.5 22.5 26.5 |
30 |
61 81 77 |
3.6 |
142 |
|
187 |
74 124 170 |
21.5 35.8 49.3 |
42 41 33 |
2960 |
14.4 17.4 20.5 |
22 |
59 79 75 |
3.5 |
140 |
|
|
175 |
69 115 159 |
19.9 33.2 45.6 |
37 36 29 |
2960 |
12.2 14.6 17.1 |
18.5 |
57 77 73 |
3.3 |
139 |
|
|
167 |
66 110 151 |
18.3 30.5 42.0 |
34 32 26 |
2960 |
10.9 12.9 15.2 |
18.5 |
55 75 71 |
3.1 |
138 |
|
SN150-M13
SN150-N13
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
(m³/h) |
(L/S) |
轴功率 Shaft power |
电机功率 Motor power |
|||||||
|
SN150-M13 |
169 |
96 160 220 |
26.7 44.4 61.1 |
37 30 20 |
2960 |
13.3 15.7 15.2 |
22 |
73 83 79 |
4.0 |
143 |
|
164 |
93 155 213 |
25.9 43.1 59.3 |
34 27 18 |
2960 |
12.1 14.3 13.6 |
18.5 |
71 81 77 |
4.0 |
142 |
|
|
152 |
86 144 198 |
24.0 40.0 55.0 |
29 24 15 |
2960 |
10.0 11.7 11.1 |
15 |
69 79 75 |
3.8 |
140 |
|
|
144 |
82 136 187 |
22.7 37.8 51.9 |
26 21 14 |
2960 |
8.7 10.1 9.6 |
15 |
67 77 73 |
3.6 |
138 |
|
|
SN150-N13 |
169 |
81 136 187 |
22.6 37.7 51.9 |
36 29 20 |
2960 |
12.1 12.9 12.7 |
15 |
66 83 78 |
3.6 |
141 |
|
157 |
76 126 174 |
21.5 35.8 49.3 |
31 25 17 |
2960 |
10.0 10.7 10.5 |
15 |
64 81 76 |
3.5 |
140 |
|
|
147 |
71 118 162 |
20.1 33.6 46.2 |
27 22 15 |
2960 |
8.5 8.9 8.8 |
11 |
62 79 74 |
3.3 |
139 |
|
|
144 |
69 115 159 |
19.2 32.1 44.1 |
26 21 14 |
2960 |
8.2 8.6 8.5 |
11 |
60 77 72 |
3.2 |
138 |
|
SN200-M4
SN200-N4
|
泵型号 Pump type |
规格 Standards |
流量流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(kW) |
效率 Efficiency % |
(NPSH)r (m) |
重量 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m²/h) |
(L/S) |
|||||||||
|
SN200-M4 |
388 |
168 280 336 |
46.7 77.8 93.3 |
200 193 180 |
2960 |
145.2 207.2 245.7 |
250 |
63 71 67 |
10.5 |
369 |
|
360 |
155 258 310 |
43.1 71.7 86.1 |
176 165 155 |
2960 |
121.7 167.9 195.2 |
*220/200 |
61 69 67 |
10.3 |
365 |
|
|
328 |
142 236 284 |
39.4 65.6 78.9 |
146 138 132 |
2960 |
957 132.3 157.0 |
160 |
59 67 65 |
10.1 |
361 |
|
|
305 |
132 220 250 |
36.7 61.1 69.4 |
131 120 112 |
2960 |
81.2 108.9 119.1 |
132 |
58 66 64 |
9.9 |
359 |
|
|
283 |
124 207 245 |
34.4 57.5 68.1 |
113 103 101 |
2960 |
66.9 89.3 106.9 |
110 |
57 65 63 |
9.7 |
357 |
|
|
SN200-N4 |
388 |
143 238 285 |
39.7 66.1 79.2 |
196 190 176 |
2960 |
123.1 175.9 206.9 |
220 |
62 70 66 |
10.3 |
368 |
|
360 |
124 208 250 |
34.4 57.8 69.4 |
172 160 151 |
2960 |
96.8 133.2 158.1 |
160 |
60 68 65 |
10.0 |
363 |
|
|
328 |
156 196 236 |
43.3 54.4 65.6 |
136 133 127 |
2960 |
99.6 107.5 129.5 |
132 |
58 66 63 |
9.9 |
359 |
|
|
286 |
114 190 224 |
31.7 52.8 62.2 |
109 102 98 |
2960 |
60.4 83.7 98.0 |
110 |
56 63 61 |
9.8 |
356 |
|
SN200-M5
SN200-N5
|
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
重量 Weight (kg) |
|||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN200-M5 |
420 |
264 440 528 |
73.3 122.2 146.7 |
232 225 220 |
2960 |
252.7 337.0 421.8 |
450 |
66 80 75 |
8.9 |
395 |
|
398 |
250 416 499 |
69.4 115.6 138.6 |
208 201 196 |
2960 |
217.9 288.4 360.8 |
400 |
65 79 74 |
8.7 |
390 |
|
|
378 |
234 390 468 |
65.0 108.3 130.0 |
182 177 173 |
2960 |
181.5 240.7 301.8 |
315 |
64 78 73 |
8.5 |
385 |
|
|
355 |
221 368 442 |
61.4 102.2 122.8 |
163 157 154 |
2960 |
130.5 207.5 254.2 |
280 |
75 76 73 |
8.3 |
380 |
|
|
336 |
207 345 414 |
57.5 95.8 115.0 |
143 138 135 |
2960 |
127.6 168.8 211.8 |
250 |
63 77 72 |
8.1 |
375 |
|
|
SN200-N5 |
418 |
225 375 450 |
62.5 104.2 125.0 |
216 210 206 |
2960 |
206.8 274.9 345.8 |
355 |
64 78 73 |
8.7 |
390 |
|
396 |
214 356 427 |
59.4 98.9 118.6 |
195 189 185 |
2960 |
180.8 238.3 299.6 |
315 |
63 77 72 |
8.5 |
385 |
|
|
375 |
203 338 406 |
56.4 93.9 112.8 |
176 171 168 |
2960 |
156.8 206.6 261.1 |
280 |
62 76 71 |
8.3 |
380 |
|
|
352 |
193 321 385 |
53.6 89.2 106.9 |
159 154 151 |
2960 |
136.9 179.4 225.9 |
250 |
61 75 70 |
8.1 |
375 |
|
|
334 |
183 305 366 |
50.8 84.7 101.7 |
143 139 136 |
2960 |
118.7 155.9 196.8 |
220 |
60 74 69 |
7.9 |
370 |
|
SN200-M6
SN200-N6
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power(kw) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
(m³/h) |
(LS) |
轴功率 Shaft Power |
电机功率 Motor Power |
|||||||
|
SN200-M6 |
280 |
168 280 326 |
46.7 77.8 93.3 |
105 95 85 |
2960 |
80.1 91.7 101.5 |
*132/110 |
60 79 74 |
5.9 |
240 |
|
274 |
163 272 326 |
45.3 75.4 90.5 |
98 90 80 |
2960 |
75.0 86.4 98.1 |
110 |
58 77 72 |
5.7 |
239 |
|
|
258 |
154 256 307 |
42.7 71.2 85.4 |
87 80 71 |
2960 |
65.2 74.5 84.7 |
90 |
56 75 70 |
5.5 |
237 |
|
|
237 |
141 235 282 |
39.2 65.3 78.4 |
74 67 60 |
2960 |
52.3 59.2 67.5 |
75 |
54 73 68 |
52 |
235 |
|
|
SN200-N6 |
280 |
143 238 285 |
39.6 66.0 79.2 |
102 92 83 |
2960 |
73.1 75.3 87.8 |
90 |
54 79 73 |
5.8 |
238 |
|
258 |
131 219 262 |
37.6 62.7 75.2 |
86 78 70 |
2960 |
59.1 60.2 70.3 |
75 |
52 77 71 |
5.6 |
236 |
|
|
244 |
124 207 248 |
33.7 56.1 67.3 |
77 70 63 |
2960 |
52.0 52.2 61.2 |
75 |
50 75 69 |
5.4 |
234 |
|
|
237 |
120 200 235 |
33.3 55.4 66.5 |
72 64 57 |
2960 |
48.7 47.6 54.4 |
55 |
48 73 67 |
5.2 |
233 |
|
SN200M-8
SN200-N8
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
重量 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN200-M8 |
305 |
318 530 636 |
88.3 147.2 176.7 |
111(2)1(5) 95 |
2960 |
144.3 190.7 201.9 |
220 |
75 84 81.5 |
9.6 |
278 |
|
292 |
305 508 609 |
84.7 141.1 169.2 |
115 100 87 |
2960 |
129.1 166.7 178.1 |
185 |
74 83 81 |
9.6 |
277 |
|
|
278 |
291 485 582 |
80.8 134.7 161.7 |
105 88 78 |
2960 |
112.4 141.7 153.6 |
160 |
74 82 80.5 |
9.4 |
276 |
|
|
256 |
263 439 527 |
73.2 121.9 146.3 |
89 72 63 |
2960 |
87.5 106.9 115.9 |
132 |
73 80.5 78 |
9.2 |
275 |
|
|
235 |
235 392 470 |
65.3 108.9 130.7 |
73 57 50 |
2960 |
64.9 77.0 83.2 |
110 |
72 79 77 |
9.0 |
273 |
|
|
SN200-N8 |
305 |
288 480 576 |
80.0 133.3 160.0 |
121 100 85 |
2960 |
126.5 157.5 166.7 |
185 |
75 83 80 |
9.7 |
276 |
|
278 |
263 439 527 |
73.2 121.9 146.3 |
100 84 70 |
2960 |
96.9 121.7 127.1 |
160 |
74 82 79 |
9.4 |
275 |
|
|
256 |
241 401 481 |
66.8 111.4 133.7 |
83 70 57 |
2960 |
74.5 95.6 98.3 |
110 |
73 80 76 |
9.2 |
273 |
|
|
235 |
214 356 427 |
59.3 98.9 118.7 |
66 55 44 |
2960 |
53.3 68.4 69.2 |
90 |
72 78 74 |
9.0 |
272 |
|
SN200-M9
SN200-N9
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power(kw) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
(m³/h) |
(L/S) |
轴功率 Shaft Power |
电机功率 Motor Power |
|||||||
|
SN200-M9 |
235 |
168 280 351 |
46.7 77.8 97.5 |
73 64 51 |
2960 |
45.8 58.8 63.3 |
75 |
73 83 77 |
5.9 |
187 |
|
223 |
160 266 333 |
44.3 73.9 92.6 |
65 57 45 |
2960 |
40.0 51.2 55.8 |
75 |
71 81 74 |
5.7 |
186 |
|
|
212 |
151 252 316 |
42.0 70.0 87.8 |
59 51 41 |
2960 |
35.0 44.6 48.7 |
55 |
69 79 72 |
5.5 |
185 |
|
|
200 |
143 238 298 |
39.7 66.1 82.9 |
52 46 36 |
2960 |
30.4 38.6 42.2 |
45 |
67 77 70 |
5.3 |
184 |
|
|
SN200-N9 |
235 |
143 238 298 |
39.6 66.0 82.7 |
71 62 50 |
2960 |
41.7 48.3 53.2 |
75 |
66 83 76 |
5.3 |
184 |
|
228 |
138 230 289 |
36.8 61.4 76.9 |
66 58 47 |
2960 |
39.3 45.2 49.8 |
55 |
64 81 74 |
5.0 |
183 |
|
|
212 |
128 214 268 |
35.2 58.7 73.6 |
57 50 40 |
2960 |
32.4 37.0 40.9 |
45 |
62 79 72 |
4.9 |
181 |
|
|
198 |
121 202 240 |
33.7 56.1 70.3 |
51 44 32 |
2960 |
28.2 31.4 30.2 |
37 |
60 77 70 |
4.7 |
179 |
|
SN200-M12
SN200-N12
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power (kw) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
(m³/h) |
(L/S) |
轴功率 Shaft Power |
电机功率 Motor Power |
|||||||
|
SN200-M12 |
246 |
320 534 641 |
89.0 148.3 178.0 |
75.0 61.0 50.0 |
2960 |
86.1 103.8 106.4 |
132 |
76 85.5 82 |
8.8 |
250 |
|
228 |
298 497 596 |
82.8 138.1 165.7 |
65.0 53.0 43.0 |
2960 |
70.4 85.4 86.2 |
110 |
75 84 81 |
8.7 |
249 |
|
|
211 |
272 454 545 |
75.7 126.1 151.3 |
56.0 44.0 34.0 |
2960 |
56.9 65.9 64.7 |
75 |
73 82.5 78 |
8.6 |
248 |
|
|
195 |
255 425 510 |
70.8 118.1 141.7 |
46.0 35.0 29.0 |
2960 |
45.0 53.0 55.2 |
75 |
71 76.5 73 |
8.5 |
246 |
|
|
SN200-N12 |
246 |
284 473 568 |
78.8 131.4 157.7 |
76.5 61.0 51.0 |
2960 |
77.8 93.0 96.1 |
110 |
76 84.5 82 |
8.6 |
250 |
|
228 |
266 443 532 |
73.8 123.1 147.7 |
67.0 54.0 43.0 |
2960 |
65.5 77.6 76.9 |
90 |
74 84 81 |
8.5 |
249 |
|
|
211 |
246 410 492 |
68.3 113.9 136.7 |
57.0 45.0 37.5 |
2960 |
52.3 61.3 63.6 |
75 |
73 82 79 |
8.4 |
248 |
|
|
195 |
229 381 457 |
63.5 105.8 127.0 |
47.5 37.0 30.0 |
2960 |
41.6 49.9 50.5 |
55 |
71 77 74 |
8.3 |
246 |
|
SN200-M13
SN200-N13
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power (KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN200-M13 |
204 |
168 280 342 |
46.7 77.8 95.0 |
53 43 36 |
2960 |
34.6 38.6 41.4 |
45 |
70 85 81 |
5.9 |
220 |
|
188 |
155 258 315 |
42.9 71.6 87.4 |
44 36 30 |
2960 |
27.4 30.3 32.3 |
37 |
68 83 79 |
5.5 |
218 |
|
|
174 |
144 239 292 |
39.9 66.5 81.2 |
38 31 26 |
2960 |
22.7 24.9 26.6 |
30 |
66 81 77 |
5.3 |
216 |
|
|
165 |
136 227 277 |
37.8 63.0 77.0 |
34 28 23 |
2960 |
19.9 21.7 23.3 |
30 |
64 79 75 |
5.1 |
215 |
|
|
SN200-N13 |
204 |
143 238 290 |
39.6 66.0 80.6 |
51 42 35 |
2960 |
31.6 31.7 34.8 |
37 |
63 85 80 |
5.3 |
218 |
|
188 |
131 219 267 |
37.2 62.0 75.8 |
43 35 30 |
2960 |
25.4 25.3 27.8 |
30 |
61 83 78 |
5.0 |
217 |
|
|
180 |
125 209 255 |
33.9 56.4 68.9 |
40 32 27 |
2960 |
23.0 22.7 24.9 |
30 |
59 81 76 |
4.7 |
216 |
|
|
164 |
115 192 235 |
32.1 53.5 65.3 |
33 26 22 |
2960 |
18.2 17.2 19.0 |
22 |
57 79 74 |
4.6 |
215 |
|
SN200-M19
SN200-N19
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN200-M19 |
162 |
168 280 342 |
46.7 77.8 95.0 |
31 26 19 |
2960 |
17.5 23.3 23.3 |
30 |
80 85 77 |
5.9 |
220 |
|
155 |
161 269 328 |
44.8 74.7 91.2 |
28 23 18 |
2960 |
15.9 20.5 21.1 |
30 |
78 83 75 |
5.7 |
219 |
|
|
146 |
151 252 308 |
42.0 70.0 85.5 |
25 20 16 |
2960 |
13.4 17.3 17.9 |
22 |
76 81 73 |
5.5 |
218 |
|
|
138 |
143 238 291 |
39.7 66.1 80.8 |
22 18 14 |
2960 |
11.6 14.9 15.5 |
18.5 |
74 79 71 |
5.3 |
217 |
|
|
SN200-N19 |
162 |
143 238 290 |
39.6 66.0 80.6 |
30 25 19 |
2960 |
15.9 19.2 19.5 |
30 |
72 85 76 |
5.3 |
219 |
|
155 |
136 227 277 |
38.0 63.4 77.4 |
27 23 17 |
2960 |
14.3 17.1 17.5 |
22 |
70 83 74 |
5.1 |
218 |
|
|
146 |
128 214 261 |
36.8 61.4 75.0 |
24 20 15 |
2960 |
12.3 14.7 15.0 |
18.5 |
68 81 72 |
5.0 |
217 |
|
|
135 |
121 202 247 |
33.7 56.1 68.5 |
21 17 13 |
2960 |
10.7 11.8 12.4 |
15 |
66 79 70 |
4.7 |
216 |
|
SN250-M4
SN250-N4
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(kW) |
效率 Efficiency % |
(NPSH)r (m) |
重量 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN250-M4 |
595 |
301 491 589 |
83.6 136.4 163.6 |
122 115 103 |
1480 |
156.2 207.7 232.6 |
280 |
64 74 71 |
5.1 |
599 |
|
565 |
291 485 582 |
80.8 134.7 161.7 |
106 100 91 |
1480 |
131.2 173.7 199.4 |
220 |
64 76 72 |
5.0 |
597 |
|
|
540 |
279 466 559 |
77.6 129.3 155.3 |
97 91 84 |
1480 |
118.9 151.8 179.0 |
185 |
62 76 71 |
4.9 |
594 |
|
|
503 |
259 432 518 |
71.9 119.9 143.9 |
83 79 72 |
1480 |
97.9 125.8 146.7 |
160 |
60 74 69 |
4.8 |
591 |
|
|
473 |
244 407 488 |
67.9 113.2 135.6 |
74 70 64 |
1480 |
852 106.3 124.9 |
132 |
58 73 68 |
4.7 |
589 |
|
|
SN250-N4 |
595 |
258 432 518 |
71.7 120.0 143.9 |
118 110 100 |
1480 |
148.0 177.2 201.4 |
220 |
56 73 70 |
5.0 |
598 |
|
565 |
247 412 494 |
68.6 114.3 137.2 |
103 97 89 |
1480 |
119.7 142.7 167.6 |
185 |
58 76 71 |
4.9 |
596 |
|
|
531 |
232 387 464 |
64.5 107.5 128.9 |
91 86 78 |
1480 |
103.0 120.1 141.6 |
160 |
56 75 70 |
4.8 |
593 |
|
|
497 |
217 362 434 |
60.4 100.6 120.6 |
79 75 69 |
1480 |
87.7 99.9 117.8 |
132 |
54 74 69 |
4.7 |
590 |
|
|
475 |
207 346 415 |
57.6 96.0 115.3 |
72 68 63 |
1480 |
79.2 88.0 104.1 |
110 |
52 73 68 |
4.6 |
588 |
|

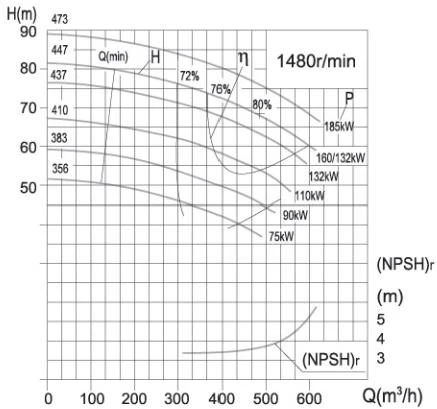

SN250-M6
SN250-N6
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power (kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN250-M6 |
473 |
302 493 631 |
83.9 136.9 175.3 |
84 75 67 |
1480 |
97.3 129.0 153.4 |
185 |
71 78 75 |
3.5 |
518 |
|
447 |
291 485 612 |
80.8 134.7 170.0 |
77 66 59 |
1480 |
84.7 108.9 129.3 |
*160/132 |
72 80 76 |
3.4 |
516 |
|
|
437 |
282 470 594 |
78.4 130.7 164.9 |
72 64 55 |
1480 |
77.4 103.3 118.3 |
132 |
71 79 75 |
3.3 |
514 |
|
|
410 |
265 441 550 |
73.6 122.6 152.8 |
63 56 48 |
1480 |
65.8 87.5 99.1 |
110 |
69 77 73 |
3.2 |
512 |
|
|
383 |
247 412 520 |
68.7 114.5 144.5 |
55 49 42 |
1480 |
55.2 73.2 84.1 |
90 |
67 75 71 |
3.0 |
510 |
|
|
356 |
230 383 483 |
63.9 106.4 134.3 |
47 42 36 |
1480 |
45.0 59.6 68.5 |
75 |
66 74 70 |
2.9 |
508 |
|
|
SN250-N6 |
||||||||||
|
473 |
258 432 535 |
71.7 120.0 148.6 |
83 75 67 |
1480 |
88.3 114.5 133.7 |
160 |
66 77 73 |
3.1 |
517 |
|
|
447 |
252 420 520 |
70.0 116.7 144.4 |
75 64 57 |
1480 |
76.3 91.5 107.2 |
110 |
67 80 75 |
3.0 |
515 |
|
|
428 |
239 399 504 |
66.4 110.8 140.0 |
67 59 52 |
1480 |
67.1 82.2 97.7 |
110 |
65 78 73 |
3.0 |
513 |
|
|
410 |
229 382 482 |
63.7 106.2 134.0 |
62 54 48 |
1480 |
61.4 73.3 87.3 |
90 |
63 77 72 |
2.9 |
511 |
|
|
383 |
214 357 451 |
59.5 99.2 125.1 |
54 47 42 |
1480 |
51.6 60.6 71.9 |
75 |
61 76 71 |
2.8 |
509 |
|
|
356 |
199 332 419 |
55.3 92.2 116.3 |
47 41 36 |
1480 |
42.9 49.9 59.4 |
75 |
59 74 69 |
2.6 |
507 |
|
SN250-M9
SN250-N9
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power (KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³h) |
(L/S) |
|||||||||
|
SN250-M9 |
367 |
291 485 612 |
80.8 134.7 170.0 |
46 41 34 |
1480 |
50.1 64.7 71.7 |
75 |
72 83 79 |
3.4 |
402 |
|
349 |
276 461 581 |
76.8 128.0 161.5 |
41 37 30 |
1480 |
44.2 56.8 61.9 |
75 |
70 81 77 |
3.2 |
399 |
|
|
327 |
259 432 545 |
71.9 119.9 151.3 |
36 32 26 |
1480 |
37.4 47.9 51.5 |
55 |
68 79 76 |
3.1 |
396 |
|
|
300 |
242 403 490 |
67.1 111.8 141.1 |
31 27 23 |
1480 |
31.3 38.4 40.9 |
45 |
66 77 75 |
3.0 |
395 |
|
|
SN250-N9 |
367 |
247 412 519 |
68.6 114.3 144.2 |
44 39 33 |
1480 |
45.7 53.1 60.3 |
75 |
65 83 78 |
3.0 |
401 |
|
341 |
230 383 483 |
65.8 109.7 138.5 |
38 34 29 |
1480 |
38.0 43.8 49.7 |
55 |
63 81 76 |
2.9 |
398 |
|
|
316 |
212 354 447 |
61.0 101.7 128.4 |
33 29 25 |
1480 |
31.0 35.5 40.4 |
45 |
61 79 74 |
2.8 |
395 |
|
|
300 |
205 342 415 |
56.9 94.9 115.3 |
30 25 21 |
1480 |
28.8 30.2 32.9 |
37 |
59 77 72 |
2.7 |
394 |
|
SN250-M13
SN250-N13
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(LS) |
|||||||||
|
SN250-M13 |
283 |
291 485 582 |
80.8 134.7 161.7 |
29 24 20 |
1480 |
30.6 36.9 38.7 |
45 |
75 86 82 |
3.4 |
382 |
|
268 |
274 456 547 |
76.0 126.6 152.0 |
26 22 17 |
1480 |
26.8 32.7 31.7 |
37 |
73 84 80 |
3.2 |
380 |
|
|
251 |
256 427 512 |
71.1 118.6 142.3 |
23 19 15 |
1480 |
22.3 27.1 26.4 |
30 |
72 83 79 |
3.1 |
378 |
|
|
234 |
239 398 477 |
66.3 110.5 132.6 |
20 17 13 |
1480 |
18.5 22.5 21.9 |
30 |
70 81 77 |
2.9 |
376 |
|
|
SN250-N13 |
283 |
247 412 494 |
68.6 114.3 137.2 |
28 23 20 |
1480 |
28.0 30.3 32.5 |
37 |
68 86 81 |
3.0 |
381 |
|
260 |
227 379 454 |
65.8 109.7 131.7 |
24 20 17 |
1480 |
22.4 24.1 25.9 |
30 |
66 84 79 |
2.9 |
379 |
|
|
249 |
217 362 435 |
63.1 105.2 126.2 |
22 18 15 |
1480 |
20.3 21.6 23.3 |
30 |
64 82 77 |
2.8 |
377 |
|
|
234 |
202 337 405 |
56.2 93.7 112.5 |
19 16 13 |
1480 |
16.9 17.9 19.3 |
22 |
62 80 75 |
2.6 |
375 |
|
SN250-M19
SN250-N19
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 "Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³h) |
(LS) |
|||||||||
|
SN250-M19 |
245 |
291 485 582 |
80.8 134.7 161.7 |
18 15 12 |
1480 |
18.7 22.4 23.5 |
30 |
75 86 81 |
3.4 |
312 |
|
235 |
276 461 553 |
76.8 128.0 153.6 |
17 14 11 |
1480 |
17.5 20.9 21.0 |
30 |
73 84 79 |
3.2 |
310 |
|
|
216 |
256 427 512 |
71.1 118.6 142.3 |
14 11 9 |
1480 |
13.5 16.0 15.6 |
18.5 |
71 82 77 |
3.1 |
308 |
|
|
208 |
247 412 495 |
68.7 114.5 137.4 |
13 11 8 |
1480 |
12.5 14.8 14.5 |
18.5 |
69 80 75 |
3.0 |
307 |
|
|
SN250-N19 |
245 |
247 412 494 |
68.6 114.3 137.2 |
17 14 12 |
1480 |
17.1 18.4 19.7 |
22 |
68 86 80 |
3.0 |
311 |
|
228 |
230 383 459 |
65.2 108.6 130.3 |
15 12 10 |
1480 |
14.2 15.1 16.3 |
18.5 |
66 84 78 |
2.9 |
309 |
|
|
216 |
217 362 435 |
61.7 102.9 123.5 |
13 11 9 |
1480 |
12.4 13.1 14.1 |
18.5 |
64 82 76 |
2.8 |
307 |
|
|
208 |
210 350 420 |
58.3 97.2 116.6 |
12 10 8 |
1480 |
11.5 12.1 13.1 |
15 |
62 80 74 |
2.7 |
306 |
|
SN300-M3
SN300-N3
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 "Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³h) |
(LS) |
|||||||||
|
SN300-M3 |
816 |
474 790 909 |
131.7 219.4 252.4 |
225 220 215 |
1480 |
476.1 676.2 799.9 |
800 |
61 70 66.5 |
5.3 |
1388 |
|
780 |
459 765 880 |
127.5 212.5 244.4 |
205 200 195 |
1480 |
427.1 603.9 707.9 |
710 |
60 69 66 |
5.2 |
1385 |
|
|
738 |
442 736 846 |
122.7 204.4 235.1 |
186 180 174 |
1480 |
375.9 538.5 617.0 |
630 |
59.5 67 65 |
5.1 |
1381 |
|
|
685 |
424 707 813 |
117.8 196.4 225.8 |
166 160 153 |
1480 |
330.6 473.9 537.7 |
560 |
58 65 63 |
5.0 |
1376 |
|
|
SN300-N3 |
816 |
402 670 777 |
111.7 186.1 215.9 |
214 210 205 |
1480 |
390.5 563.5 667.5 |
710 |
60 68 65 |
5.3 |
1387 |
|
780 |
388 647 751 |
107.8 179.7 208.5 |
194 190 185 |
1480 |
353.6 499.7 590.8 |
630 |
58 67 64 |
5.2 |
1385 |
|
|
738 |
375 625 731 |
104.2 173.6 203.1 |
175 170 165 |
1480 |
308.1 435.1 517.5 |
560 |
58 66.5 63.5 |
5.1 |
1382 |
|
|
685 |
361 602 710 |
100.3 167.2 197.3 |
156 150 144 |
1480 |
269.2 378.3 449.3 |
500 |
57 65 62 |
5.0 |
1378 |
|
SN300-M4
SN300-N4
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率Power(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN300-M4 |
690 |
489 815 970 |
135.8 226.4 269.4 |
153 150 142 |
1480 |
286.9 421.3 487.0 |
500 |
71 79 77 |
4.6 |
1003 |
|
665 |
474 790 928 |
131.7 219.4 263.3 |
145 140 133 |
1480 |
267.0 386.5 442.3 |
450 |
70 78 76 |
4.6 |
1000 |
|
|
652 |
465 774 929 |
129.0 215.1 258.1 |
139 135 131 |
1480 |
255.0 368.5 440.5 |
450 |
69 77 75 |
4.6 |
998 |
|
|
618 |
441 735 882 |
122.5 204.1 244.9 |
125 121 118 |
1480 |
224.4 323.3 386.7 |
400 |
67 75 73 |
4.4 |
995 |
|
|
592 |
422 703 844 |
117.2 195.3 234.4 |
115 111 108 |
1480 |
202.7 291.1 348.5 |
355 |
65 73 71 |
4.3 |
993 |
|
|
559 |
398 664 796 |
110.6 184.3 221.2 |
102 99 96 |
1480 |
175.9 251.7 301.5 |
315 |
63 71 69 |
4.1 |
990 |
|
|
SN300-N4 |
690 |
411 685 815 |
114.1 190.2 226.3 |
146 143 138 |
1480 |
233.2 337.3 402.8 |
450 |
70 79 76 |
4.2 |
1001 |
|
665 |
402 670 804 |
111.7 186.2 223.4 |
140 136 130 |
1480 |
225.8 317.4 379.5 |
400 |
68 78 75 |
4.2 |
999 |
|
|
638 |
386 644 772 |
110.0 183.4 220.1 |
129 125 120 |
1480 |
199.7 280.8 335.7 |
355 |
68 78 75 |
4.1 |
997 |
|
|
612 |
370 617 740 |
106.1 176.9 212.3 |
119 115 110 |
1480 |
178.4 250.4 299.5 |
315 |
67 77 74 |
4.0 |
994 |
|
|
585 |
354 590 708 |
100.6 167.6 201.1 |
109 105 101 |
1480 |
158.5 222.0 265.7 |
280 |
66 76 73 |
3.9 |
992 |
|
|
559 |
338 563 676 |
97.2 162.0 194.4 |
99 96 92 |
1480 |
140.0 195.7 234.3 |
250 |
65 75 72 |
3.8 |
989 |
SN300-M6
SN300-N6
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 "Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN300-M6 |
530 |
474 790 948 |
131.7 219.4 263.3 |
98 94 86 |
1480 |
178.2 249.0 284.6 |
315 |
71 81 78 |
4.6 |
848 |
|
509 |
455 758 910 |
126.4 210.7 252.8 |
91 86 79 |
1480 |
166.2 228.8 260.2 |
280 |
68 78 75 |
4.5 |
846 |
|
|
482 |
431 719 863 |
119.8 199.7 239.6 |
82 78 71 |
1480 |
148.1 202.7 230.8 |
250 |
65 75 72 |
4.4 |
844 |
|
|
456 |
408 679 815 |
113.2 188.7 226.5 |
73 69 63 |
1480 |
130.0 177.0 201.8 |
220 |
63 73 70 |
4.2 |
842 |
|
|
443 |
398 664 790 |
110.6 184.3 221.2 |
70 65 58 |
1480 |
126.2 167.8 183.5 |
185 |
60 70 68 |
4.1 |
840 |
|
|
SN300-N6 |
530 |
402 670 804 |
111.7 186.2 223.4 |
95 91 83 |
1480 |
162.6 204.5 235.5 |
250 |
64 81 77 |
4.2 |
847 |
|
509 |
386 644 772 |
107.3 178.8 214.5 |
87 84 76 |
1480 |
148.5 185.5 213.9 |
250 |
62 79 75 |
4.1 |
845 |
|
|
488 |
370 617 740 |
102.8 171.3 205.6 |
80 77 70 |
1480 |
137.4 169.7 196.0 |
220 |
59 76 72 |
3.9 |
843 |
|
|
445 |
338 563 676 |
93.8 156.4 187.7 |
67 64 59 |
1480 |
110.2 134.5 155.7 |
160 |
56 73 69 |
3.7 |
839 |
|
SN300-M9
SN300-N9
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN300-M9 |
445 |
474 790 972 |
131.7 219.4 270.0 |
68 60 53 |
1480 |
124.9 153.7 175.4 |
185 |
70 84 80 |
4.6 |
606 |
|
423 |
450 751 923 |
125.1 208.5 256.5 |
61 55 47 |
1480 |
110.2 135.9 151.6 |
160 |
68 82 78 |
4.5 |
604 |
|
|
387 |
412 687 846 |
114.6 190.9 234.9 |
51 46 39 |
1480 |
87.2 107.0 119.5 |
132 |
66 80 76 |
4.2 |
602 |
|
|
356 |
379 632 778 |
105.3 175.6 216.0 |
43 39 33 |
1480 |
69.9 85.3 95.4 |
110 |
64 78 74 |
4.0 |
600 |
|
|
SN300-N9 |
445 |
402 670 825 |
111.7 186.2 229.1 |
66 59 52 |
1480 |
114.0 128.3 147.3 |
160 |
63 84 79 |
4.2 |
605 |
|
418 |
378 630 775 |
108.4 180.6 222.2 |
58 52 46 |
1480 |
97.7 109.2 125.5 |
132 |
61 82 77 |
4.1 |
603 |
|
|
392 |
354 590 726 |
99.4 165.7 203.9 |
51 46 40 |
1480 |
82.9 91.8 105.7 |
110 |
59 80 75 |
3.9 |
601 |
|
|
356 |
322 536 660 |
89.4 149.0 183.3 |
42 38 33 |
1480 |
64.5 70.7 81.6 |
90 |
57 78 73 |
3.6 |
599 |
|
SN300-M13
SN300-N13
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 "Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(LS) |
|||||||||
|
SN300-M13 |
348 |
474 790 948 |
131.7 219.4 263.3 |
40 34 28 |
1480 |
72.0 84.1 85.9 |
90 |
71 87 83 |
4.6 |
716 |
|
331 |
450 751 901 |
125.1 208.5 250.2 |
36 30 25 |
1480 |
62.6 71.5 74.5 |
90 |
70 86 82 |
4.5 |
714 |
|
|
313 |
427 711 853 |
118.5 197.5 237.0 |
32 27 22 |
1480 |
54.0 61.5 64.1 |
75 |
69 85 81 |
4.3 |
712 |
|
|
289 |
393 656 787 |
109.3 182.1 218.6 |
27 23 19 |
1480 |
43.0 48.8 50.9 |
55 |
68 84 80 |
4.1 |
710 |
|
|
SN300-N13 |
348 |
402 670 804 |
111.7 186.2 223.4 |
38 33 27 |
1480 |
65.7 69.0 72.1 |
75 |
64 87 82 |
4.2 |
715 |
|
334 |
386 644 772 |
105.0 175.0 210.0 |
35 30 25 |
1480 |
59.0 61.8 64.6 |
75 |
63 86 81 |
4.0 |
713 |
|
|
303 |
350 583 700 |
98.3 163.9 196.6 |
29 25 20 |
1480 |
44.6 46.5 48.7 |
55 |
62 85 80 |
3.8 |
711 |
|
|
289 |
334 556 668 |
92.7 154.5 185.5 |
26 23 19 |
1480 |
39.4 40.9 42.8 |
55 |
61 84 79 |
3.7 |
709 |
|
SN300-M19
SN300-N19
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 "Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(LS) |
|||||||||
|
SN300-M19 |
285 |
474 790 948 |
131.7 219.4 263.3 |
24 20 14 |
1480 |
40.2 48.9 43.7 |
55 |
77 87 80 |
4.6 |
438 |
|
271 |
450 751 901 |
125.1 208.5 250.2 |
22 18 12 |
1480 |
35.8 43.5 38.9 |
55 |
74 84 77 |
4.5 |
436 |
|
|
257 |
427 711 853 |
118.5 197.5 237.0 |
19 16 11 |
1480 |
31.8 38.3 34.4 |
45 |
71 81 74 |
4.3 |
434 |
|
|
242 |
403 672 806 |
111.9 186.5 223.8 |
17 14 10 |
1480 |
27.9 33.5 30.2 |
37 |
68 78 71 |
4.2 |
432 |
|
|
SN300-N19 |
285 |
402 670 804 |
111.7 186.2 223.4 |
23 19 13 |
1480 |
36.7 40.2 36.7 |
45 |
69 87 79 |
4.2 |
437 |
|
271 |
382 637 764 |
108.4 180.6 216.7 |
20 16 12 |
1480 |
31.4 33.0 32.8 |
37 |
66 84 76 |
4.1 |
435 |
|
|
254 |
358 597 716 |
101.7 169.4 203.3 |
18 15 11 |
1480 |
28.3 30.4 28.0 |
37 |
63 81 73 |
3.9 |
433 |
|
|
242 |
342 570 684 |
95.0 158.3 189.9 |
17 14 10 |
1480 |
25.9 27.5 25.4 |
37 |
60 78 70 |
3.7 |
431 |
|
SN300-M27
SN300-N27
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m3/h) |
(LS) |
|||||||||
|
SN300-M27 |
251 |
474 790 948 |
131.7 219.4 263.3 |
18 13 10 |
1480 |
32.7 32.0 32.3 |
37 |
70 84 80 |
4.6 |
436 |
|
233 |
441 735 882 |
122.5 204.1 244.9 |
15 11 8 |
1480 |
27.0 26.4 25.0 |
30 |
68 82 78 |
4.4 |
434 |
|
|
223 |
422 703 844 |
117.2 195.3 234.4 |
14 10 7 |
1480 |
24.4 23.7 22.5 |
30 |
66 80 76 |
4.3 |
433 |
|
|
213 |
403 672 806 |
111.9 186.5 223.8 |
13 9 7 |
1480 |
21.9 21.2 20.1 |
30 |
64 78 74 |
4.2 |
432 |
|
|
SN300-N27 |
251 |
402 670 804 |
111.7 186.2 223.4 |
17 12 10 |
1480 |
29.8 26.3 27.1 |
37 |
63 84 79 |
4.2 |
435 |
|
238 |
382 637 764 |
106.1 176.9 212.3 |
15 11 9 |
1480 |
26.4 23.1 23.8 |
30 |
61 82 77 |
4.0 |
434 |
|
|
213 |
342 570 684 |
100.6 167.6 201.1 |
12 9 7 |
1480 |
19.5 17.0 17.5 |
22 |
59 80 75 |
3.9 |
431 |
|
SN350-M4
SN350-N4
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 "Shat Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(LS) |
|||||||||
|
SN350-M4 |
765 |
756 1260 1660 |
210.0 350.0 461.1 |
220 210 192 |
1480 |
686.3 889.6 1157.3 |
1250 |
66 81 75 |
5.9 |
1998 |
|
718 |
733 1222 1610 |
203.7 339.5 447.3 |
195 185 163 |
1480 |
599.1 769.7 965.9 |
1000 |
65 80 74 |
5.7 |
1993 |
|
|
693 |
703 1172 1544 |
195.3 325.5 428.8 |
172 163 145 |
1480 |
514.6 658.4 835.1 |
900 |
64 79 73 |
5.5 |
1988 |
|
|
666 |
673 1121 1477 |
186.9 311.5 410.4 |
157 147 130 |
1480 |
456.6 575.5 726.5 |
800 |
63 78 72 |
5.2 |
1983 |
|
|
SN350-N4 |
765 |
641 1069 1380 |
178.2 297.0 391.3 |
218 207 183 |
1480 |
577.0 753.4 929.4 |
1000 |
66 80 74 |
5.6 |
1995 |
|
718 |
616 1026 1325 |
106.1 176.9 212.3 |
194 182 155 |
1480 |
500.5 643.9 766.0 |
800 |
65 79 73 |
5.4 |
1990 |
|
|
693 |
590 984 1270 |
100.6 167.6 201.1 |
170 158 131 |
1480 |
426.9 542.6 629.1 |
630 |
64 78 72 |
5.2 |
1985 |
|
|
666 |
520 866 1141 |
144.3 240.6 316.9 |
143 135 110 |
1480 |
321.3 413.5 481.4 |
500 |
63 77 71 |
4.9 |
1980 |
|
SN350-M6
SN350-N6
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m3/h) |
(L/S) |
|||||||||
|
SN350-M6 |
654 |
756 1260 1660 |
210.0 350.0 461.1 |
148 126 106 |
1480 |
461.5 527.3 630.5 |
710 |
66 82 76 |
6.3 |
1586 |
|
634 |
733 1222 1610 |
203.7 339.5 447.5 |
139 120 98 |
1480 |
427.7 493.1 573.1 |
630 |
65 81 75 |
6.2 |
1584 |
|
|
608 |
703 1172 1544 |
195.3 325.5 428.8 |
128 110 90 |
1480 |
382.8 438.8 511.9 |
560 |
64 80 74 |
6.0 |
1582 |
|
|
583 |
673 1121 1477 |
186.9 311.5 410.4 |
117 103 83 |
1480 |
340.8 398.8 454.8 |
500 |
63 79 73 |
5.9 |
1580 |
|
|
543 |
627 1046 1378 |
174.3 290.5 382.7 |
102 88 72 |
1480 |
285.5 325.5 379.3 |
400 |
61 77 71 |
5.6 |
1578 |
|
|
531 |
612 1021 1345 |
170.1 283.5 373.5 |
97 85 68 |
1480 |
269.8 312.5 357.6 |
400 |
60 76 70 |
5.5 |
1576 |
|
|
SN350-N6 |
653 |
641 1069 1380 |
178.2 297.0 391.3 |
143 121 95 |
1480 |
421.1 429.6 474.5 |
500 |
59 5 |
5.7 |
1585 |
|
627 |
616 1026 1325 |
171.1 285.0 368.1 |
132 112 88 |
1480 |
385.5 389.6 431.3 |
500 |
57 80 73 |
5.5 |
1583 |
|
|
601 |
590 984 1270 |
163.9 273.3 352.8 |
121 102 80 |
1480 |
345.3 347.3 384.8 |
450 |
56 79 72 |
5.3 |
1581 |
|
|
575 |
565 941 1214 |
152.4 253.9 334.5 |
111 94 74 |
1480 |
313.3 311.8 346.4 |
400 |
54 77 70 |
5.1 |
1579 |
|
|
530 |
520 865 1141 |
144.3 240.6 316.9 |
94 79 65 |
1480 |
253.7 248.4 295.7 |
315 |
52 75 68 |
4.9 |
1575 |
|
SN350-M9
SN350-N9
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(kW) |
效率 Eficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 "Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN350-M9 |
503 |
756 1260 1512 |
210.0 350.0 420.0 |
86 77 68 |
1480 |
252.9 310.8 345.7 |
355 |
70 85 81 |
6.3 |
1208 |
|
473 |
711 1184 1421 |
197.4 329.0 394.8 |
77 69 61 |
1480 |
216.0 265.1 295.1 |
315 |
69 84 80 |
6.1 |
1206 |
|
|
453 |
680 1134 1361 |
189.0 315.0 378.0 |
71 63 55 |
1480 |
193.5 235.5 258.0 |
280 |
68 83 79 |
5.9 |
1204 |
|
|
433 |
650 1084 1300 |
180.6 301.0 361.2 |
62 58 52 |
1480 |
164.9 208.0 236.1 |
250 |
67 82 78 |
5.7 |
1202 |
|
|
415 |
624 1040 1247 |
173.3 288.8 346.5 |
57 53 46 |
1480 |
147.8 185.9 202.9 |
220 |
66 81 77 |
5.6 |
1200 |
|
|
SN350-N9 |
502 |
641 1069 1283 |
178.2 297.0 356.4 |
83 74 67 |
1480 |
230.2 253.5 291.9 |
315 |
63 85 80 |
5.7 |
1207 |
|
477 |
609 1016 1219 |
106.1 176.9 212.3 |
75 66 59 |
1480 |
203.8 219.9 249.6 |
250 |
61 83 78 |
5.5 |
1205 |
|
|
452 |
577 962 1155 |
100.6 167.6 201.1 |
67 59 53 |
1480 |
176.2 188.5 215.9 |
220 |
60 82 77 |
5.3 |
1203 |
|
|
437 |
558 940 1116 |
152.4 253.9 334.5 |
63 56 50 |
1480 |
162.3 177.0 199.5 |
200 |
59 81 76 |
5.2 |
1201 |
|
|
415 |
529 882 1058 |
147.0 245.0 294.0 |
56 50 46 |
1480 |
140.4 151.2 174.8 |
185 |
58 80 75 |
5.0 |
1199 |
|
SN350-M13
SN350-N13
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 "Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN350-M13 |
406 |
756 1260 1512 |
210.0 350.0 420.0 |
54 46 38 |
1480 |
148.7 180.8 197.9 |
200 |
75 87 80 |
6.3 |
1110 |
|
390 |
726 1210 1452 |
201.6 336.0 403.2 |
50 42 34 |
1480 |
133.3 161.8 168.1 |
185 |
74 86 79 |
6.2 |
1108 |
|
|
357 |
665 1109 1331 |
184.8 308.0 369.6 |
42 35 28 |
1480 |
105.6 127.6 132.9 |
160 |
72 84 77 |
5.8 |
1106 |
|
|
333 |
620 1033 1240 |
172.2 287.0 344.4 |
36 31 25 |
1480 |
87.9 105.8 110.4 |
132 |
70 82 75 |
5.6 |
1105 |
|
|
SN350-N13 |
406 |
641 1069 1283 |
178.2 297.0 356.4 |
52 44 38 |
1480 |
135.7 148.5 166.2 |
185 |
68 87 79 |
5.7 |
1109 |
|
386 |
609 1016 1219 |
174.6 291.0 349.3 |
47 40 34 |
1480 |
118.1 128.8 144.3 |
160 |
67 86 78 |
5.6 |
1107 |
|
|
361 |
571 952 1142 |
162.2 270.3 324.3 |
42 35 30 |
1480 |
100.1 108.4 121.8 |
132 |
65 84 76 |
5.3 |
1105 |
|
|
341 |
539 898 1078 |
149.7 249.5 299.4 |
37 31 27 |
1480 |
86.9 93.4 105.1 |
110 |
63 82 74 |
5.1 |
1104 |
|
SN350-M19
SN350-N19
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 "Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN350-M19 |
340 |
756 1260 1512 |
210.0 350.0 420.0 |
35 28 22 |
1480 |
98.7 109.2 111.8 |
132 |
73 88 81 |
6.3 |
678 |
|
326 |
726 1210 1452 |
201.6 336.0 403.2 |
32 25 20 |
1480 |
88.2 95.6 98.5 |
110 |
71 86 79 |
6.2 |
676 |
|
|
303 |
673 1121 1346 |
186.9 311.5 373.8 |
27 21 17 |
1480 |
72.3 78.0 80.5 |
90 |
69 84 77 |
5.9 |
674 |
|
|
289 |
643 1071 1285 |
178.5 297.5 357.0 |
25 20 15 |
1480 |
64.9 69.6 72.0 |
90 |
67 82 75 |
5.7 |
672 |
|
|
SN350-N19 |
340 |
641 1069 1283 |
178.2 297.0 356.4 |
34 27 22 |
1480 |
90.1 89.7 93.9 |
110 |
66 88 80 |
5.7 |
677 |
|
320 |
603 1005 1206 |
169.3 282.1 338.6 |
30 24 19 |
1480 |
77.2 76.2 80.0 |
90 |
64 86 78 |
5.5 |
675 |
|
|
296 |
558 930 1116 |
160.4 267.3 320.7 |
26 21 16 |
1480 |
63.2 61.9 65.1 |
75 |
62 84 76 |
5.3 |
673 |
|
|
289 |
545 909 1091 |
151.5 252.4 302.9 |
24 20 16 |
1480 |
60.9 59.1 62.4 |
75 |
60 82 74 |
5.1 |
671 |
|
SN350-M27
SN350-N27
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN350-M27 |
290 |
756 1260 1512 |
210.0 350.0 420.0 |
23 17 14 |
1480 |
60.5 65.7 74.8 |
75 |
78 87 77 |
6.3 |
637 |
|
273 |
711 1184 1421 |
197.4 329.0 394.8 |
20 15 11 |
1480 |
51.6 55.9 58.0 |
75 |
76 85 75 |
6.1 |
635 |
|
|
255 |
665 1109 1331 |
184.8 308.0 369.6 |
18 13 10 |
1480 |
44.1 47.5 49.5 |
55 |
73 82 72 |
5.8 |
634 |
|
|
247 |
643 1071 1285 |
178.5 297.5 357.0 |
17 12 9 |
1480 |
40.2 43.4 45.3 |
55 |
72 81 71 |
5.7 |
633 |
|
|
SN350-N27 |
290 |
641 1069 1283 |
178.2 297.0 356.4 |
22 16 14 |
1480 |
55.2 54.0 62.9 |
75 |
70 87 76 |
5.7 |
636 |
|
267 |
590 984 1180 |
169.3 282.1 338.6 |
19 14 12 |
1480 |
44.2 43.0 50.3 |
55 |
68 85 74 |
5.5 |
634 |
|
|
247 |
545 909 1091 |
156.8 261.3 313.6 |
16 12 10 |
1480 |
36.5 35.2 41.3 |
45 |
65 82 71 |
5.2 |
632 |
|
SN400-M6
SN400-N6
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN400-M6 |
725 |
1211 2018 2523 |
336.3 560.6 700.7 |
180 160 151 |
1480 |
760.9 1034.5 1234.9 |
1250 |
78 85 84 |
5.0 |
1954 |
|
675 |
1151 1918 2398 |
319.7 523.8 666.0 |
157 137 120 |
1480 |
630.8 841.9 944.0 |
1000 |
78 85 83 |
4.9 |
1950 |
|
|
620 |
1019 1818 2273 |
303.0 505.0 631.3 |
130 111 97 |
1480 |
495.1 654.2 732.1 |
800 |
78 84 82 |
4.8 |
1946 |
|
|
570 |
1025 1708 2135 |
284.7 474.4 593.1 |
108 91 76 |
1480 |
391.4 503.9 566.5 |
630 |
77 84 78 |
4.7 |
1943 |
|
|
SN400-N6 |
724 |
1079 1798 2248 |
299.7 499.4 624.3 |
176 150 134 |
1480 |
662.9 874.4 1012.6 |
1120 |
78 84 81 |
4.8 |
1952 |
|
674 |
983 1638 2048 |
273.0 455.0 568.8 |
146 125 108 |
1480 |
514.2 671.8 743.5 |
800 |
76 83 81 |
4.7 |
1948 |
|
|
619 |
929 1548 1935 |
258.0 430.0 537.5 |
123 105 89 |
1480 |
409.4 533.3 579.0 |
630 |
76 83 81 |
4.6 |
1944 |
|
|
570 |
875 1458 1823 |
243.0 405.0 506.3 |
98 81 68 |
1480 |
315.5 392.2 421.9 |
450 |
74 82 80 |
4.5 |
1941 |
|
SN400-M9
SN400-N9
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m3/h) |
(LS) |
|||||||||
|
SN400-M9 |
573 |
1211 2018 2523 |
336.3 560.6 700.7 |
107 94 81 |
1480 |
446.6 600.7 670.4 |
710 |
79 86 83 |
6.0 |
1730 |
|
526 |
1123 1872 2340 |
312.0 520.0 650.0 |
89 77 66 |
1480 |
349.0 461.8 506.7 |
560 |
78 85 83 |
5.9 |
1728 |
|
|
486 |
1075 1792 2240 |
298.7 497.8 622.2 |
74 63 53 |
1480 |
281.4 361.7 394.3 |
400 |
77 85 82 |
5.8 |
1725 |
|
|
446 |
1045 1742 2125 |
290.3 483.9 590.3 |
62 51 41 |
1480 |
238.5 291.5 308.2 |
315 |
74 83 77 |
5.7 |
1723 |
|
|
SN400-N9 |
585 |
1110 1850 2313 |
308.3 513.9 642.4 |
112 92 74 |
1480 |
434.1 545.3 582.5 |
630 |
78 85 80 |
5.9 |
1730 |
|
573 |
1039 1732 2165 |
288.7 481.1 601.4 |
96 80 67 |
1480 |
348.3 443.9 481.7 |
500 |
78 85 82 |
5.8 |
1728 |
|
|
526 |
943 1572 1965 |
262.0 436.7 545.8 |
82 68 58 |
1480 |
277.1 342.5 378.5 |
400 |
76 85 82 |
5.7 |
1726 |
|
|
486 |
901 1502 1878 |
250.3 417.2 521.5 |
70 59 49 |
1480 |
235.3 290.8 309.3 |
315 |
73 83 81 |
5.6 |
1724 |
|
SN400-M13
SN400-N13
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(kW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN400-M13 |
481 |
1215 2025 2520 |
337.5 562.5 700.0 |
71 59 51 |
1480 |
313.2 374.0 416.7 |
450 |
75 87 84 |
7.3 |
1652 |
|
470 |
1211 2018 2502 |
336.3 560.6 695.1 |
65 52 43 |
1480 |
282.0 324.7 344.7 |
355 |
76 88 85 |
7.2 |
1650 |
|
|
438 |
1148 1914 2393 |
319.0 531.7 664.6 |
57 45 37 |
1480 |
240.9 272.7 290.5 |
315 |
74 86 83 |
7.1 |
1647 |
|
|
406 |
1082 1804 2255 |
300.7 501.1 626.4 |
47 37 27 |
1480 |
189.8 216.4 215.3 |
250 |
73 84 77 |
7.0 |
1642 |
|
|
374 |
1016 1694 2118 |
282.3 470.6 588.2 |
38 28 20 |
1480 |
146.1 161.5 155.9 |
185 |
72 80 74 |
6.9 |
1640 |
|
|
SN400-N13 |
481 |
1047 1745 2181 |
290.8 484.7 605.9 |
68 57 47 |
1480 |
255.1 311.3 340.5 |
355 |
76 87 82 |
7.0 |
1650 |
|
470 |
1039 1732 2165 |
288.7 481.1 601.4 |
63 52 41 |
1480 |
231.6 277.6 284.4 |
315 |
77 88 85 |
7.0 |
1648 |
|
|
438 |
979 1632 2040 |
272.0 453.3 566.7 |
56 45 34 |
1480 |
199.1 229.9 233.2 |
250 |
75 87 81 |
6.9 |
1646 |
|
|
406 |
922 1537 1921 |
256.2 426.9 533.7 |
48 38 29 |
1480 |
165.1 189.4 189.7 |
200 |
73 84 80 |
6.8 |
1641 |
|
|
374 |
859 1432 1790 |
238.7 397.8 497.2 |
39 31 23 |
1480 |
125.0 151.1 147.5 |
185 |
73 80 76 |
6.7 |
1639 |
|
SN400-M19
SN400-N19
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN400-M19 |
402 |
1211 2018 2523 |
336.3 560.6 700.7 |
43 32 24 |
1480 |
194.2 202.1 208.7 |
220 |
73 87 79 |
8.5 |
1195 |
|
377 |
1181 1968 2460 |
328.0 546.7 683.3 |
37 27 19 |
1480 |
163.0 170.2 163.2 |
185 |
73 85 78 |
8.4 |
1193 |
|
|
352 |
1151 1918 2398 |
319.7 532.8 666.0 |
31 22 13 |
1480 |
134.9 138.4 108.8 |
160 |
72 83 78 |
8.3 |
1191 |
|
|
337 |
1121 1868 2335 |
311.3 518.9 648.6 |
25 16 8 |
1480 |
107.5 101.7 69.7 |
110 |
71 80 73 |
8.2 |
1191 |
|
|
SN400-N19 |
402 |
1039 1732 2165 |
288.7 481.1 601.4 |
39 31 24 |
1480 |
149.2 170.0 170.5 |
185 |
74 86 83 |
8.0 |
1194 |
|
377 |
985 1642 2053 |
273.7 456.1 570.1 |
34 27 20 |
1480 |
125.0 143.7 141.5 |
160 |
73 84 79 |
7.9 |
1192 |
|
|
352 |
943 1572 1965 |
262.0 436.7 545.8 |
29 23 16 |
1480 |
103.5 120.1 109.8 |
132 |
72 82 78 |
7.8 |
1190 |
|
|
337 |
901 1502 1878 |
250.3 417.2 521.5 |
25 18 12 |
1480 |
86.4 94.4 82.9 |
110 |
71 78 74 |
7.7 |
1189 |
|
SN450-M9
SN450-N9
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m3/h) |
(L/S) |
|||||||||
|
SN450-M9 |
673 |
1907 3178 3813 |
529.6 882.7 1059.2 |
164 144 127 |
1480 |
1077.4 1432.5 1590.9 |
1600 |
79 87 83 |
6.5 |
2518 |
|
615 |
1796 2994 3593 |
499.0 831.6 998.0 |
135 116 101 |
1480 |
845.5 1103.8 1206.4 |
1250 |
78 86 82 |
6.4 |
2516 |
|
|
568 |
1718 2863 3435 |
477.1 795.2 954.3 |
113 95 83 |
1480 |
693.1 871.2 955.5 |
1000 |
76 85 81 |
6.3 |
2513 |
|
|
518 |
1655 2759 3311 |
459.9 766.4 919.7 |
95 77 66 |
1480 |
571.0 689.3 751.9 |
800 |
75 84 79 |
6.2 |
2510 |
|
|
SN450-N9 |
673 |
1693 2821 3385 |
470.2 783.6 940.3 |
147 123 107 |
1480 |
869.1 1107.7 1220.5 |
1250 |
78 85 81 |
6.3 |
2518 |
|
615 |
1583 2639 3167 |
439.8 733.1 879.7 |
123 103 87 |
1480 |
689.8 878.2 941.4 |
1000 |
77 84 80 |
6.2 |
2516 |
|
|
568 |
1487 2479 2975 |
413.1 688.6 826.3 |
107 87 75 |
1480 |
587.0 710.2 769.8 |
800 |
74 83 79 |
6.1 |
2513 |
|
|
518 |
1401 2335 2802 |
389.2 648.6 778.4 |
89 73 63 |
1480 |
464.4 564.3 614.5 |
630 |
73 82 78 |
6.0 |
2510 |
|
SN450-M13 SN450-N13
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH) r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN450-M13 |
538 |
1908 3180 3975 |
530.0 883.3 1104.2 |
89 76 64 |
1480 |
600.6 739.5 824.8 |
900 |
77 89 84 |
10.5 |
1840 |
|
502 |
1776 2960 3700 |
493.3 822.2 1027.8 |
80 66 54 |
1480 |
502.5 611.5 655.6 |
710 |
77 87 83 |
10.3 |
1838 |
|
|
465 |
1716 2860 3575 |
476.7 794.4 993.1 |
69 55 41 |
1480 |
424.3 498.1 518.4 |
560 |
76 86 77 |
10.2 |
1836 |
|
|
428 |
1614 2690 3363 |
448.3 747.2 934.0 |
56 44 33 |
1480 |
328.2 413.2 397.6 |
450 |
75 78 76 |
10.0 |
1834 |
|
|
SN450-N13 |
538 |
1614 2690 3363 |
448.3 747.2 934.0 |
89 73 62 |
1480 |
501.5 607.7 660.2 |
710 |
78 88 86 |
10.0 |
1839 |
|
502 |
1494 2490 3113 |
415.0 691.7 864.6 |
80 66 51 |
1480 |
428.3 514.4 527.2 |
560 |
76 87 82 |
9.8 |
1837 |
|
|
465 |
1392 2320 2900 |
386.7 644.4 805.6 |
69 56 46 |
1480 |
348.8 416.3 443.0 |
450 |
75 85 82 |
9.6 |
1835 |
|
|
428 |
1368 2280 2850 |
380.0 633.3 791.7 |
57 46 35 |
1480 |
283.1 344.1 357.4 |
400 |
75 83 76 |
9.5 |
1833 |
|
SN500-M18
SN500-N18
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN500-M18 |
460 |
1902 3170 3963 |
528.3 880.6 1100.7 |
59 48 36 |
1480 |
413.0 470.9 468.0 |
500 |
74 88 83 |
9.8 |
1380 |
|
431 |
1836 3060 3825 |
510.0 850.0 1062.5 |
49 39 31 |
1480 |
335.6 377.9 398.7 |
450 |
73 86 81 |
9.6 |
1378 |
|
|
402 |
1794 2990 3738 |
498.3 830.6 1038.2 |
42 32 22 |
1480 |
285.0 310.2 279.9 |
355 |
72 84 80 |
9.5 |
1376 |
|
|
385 |
1734 2890 3613 |
481.7 802.8 1003.5 |
36 25 17 |
1480 |
242.9 242.9 226.0 |
280 |
70 81 74 |
9.3 |
1374 |
|
|
SN500-N18 |
460 |
1614 2690 3363 |
448.3 747.2 934.0 |
57 46 36 |
1480 |
334.1 387.3 392.4 |
450 |
75 87 84 |
9.2 |
1378 |
|
431 |
1536 2560 3200 |
426.7 711.1 888.9 |
50 40 30 |
1480 |
286.5 328.1 318.8 |
355 |
73 85 82 |
9.0 |
1376 |
|
|
402 |
1494 2490 3113 |
415.0 691.7 864.6 |
43 32 24 |
1480 |
249.9 264.6 264.2 |
280 |
70 82 77 |
8.9 |
1374 |
|
|
385 |
1386 2310 2888 |
385.0 641.7 802.1 |
37 28 20 |
1480 |
2054 223.0 209.7 |
250 |
68 79 75 |
8.8 |
1372 |
|
SN500-M6
SN500-N6
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN500-M6 |
860 |
1212 2020 2424 |
336.7 561.1 673.3 |
108 100 92 |
990 |
488.3 662.8 778.6 |
800 |
73 83 78 |
5.0 |
2408 |
|
834 |
1176 1959 2351 |
326.6 544.3 653.1 |
101 93 85 |
990 |
455.4 613.7 706.9 |
710 |
71 81 77 |
4.9 |
2406 |
|
|
791 |
1115 1858 2230 |
309.7 516.2 619.5 |
92 84 77 |
990 |
404.9 536.9 615.3 |
630 |
69 79 76 |
4.7 |
2404 |
|
|
757 |
1067 1778 2133 |
296.3 493.8 592.5 |
85 77 70 |
990 |
368.5 482.1 542.2 |
560 |
67 77 75 |
4.6 |
2402 |
|
|
705 |
994 1656 1988 |
276.1 460.1 552.1 |
75 67 60 |
990 |
312.3 400.4 438.9 |
450 |
65 75 74 |
4.4 |
2400 |
|
|
SN500-N6 |
860 |
1028 1714 2057 |
285.7 476.1 571.3 |
103 95 88 |
990 |
439.1 534.3 628.4 |
630 |
66 83 78 |
4.5 |
2406 |
|
817 |
977 1628 1954 |
277.1 461.8 554.2 |
94 86 80 |
990 |
392.6 469.4 552.9 |
560 |
64 81 77 |
4.4 |
2404 |
|
|
783 |
936 1560 1872 |
268.5 447.6 537.1 |
87 79 72 |
990 |
359.4 423.0 482.9 |
500 |
62 79 76 |
4.3 |
2402 |
|
|
748 |
895 1491 1789 |
255.7 426.1 511.4 |
80 72 65 |
990 |
326.5 379.2 422.3 |
450 |
60 77 75 |
4.1 |
2400 |
|
|
705 |
843 1406 1687 |
245.7 409.5 491.4 |
72 64 57 |
990 |
286.6 326.0 353.8 |
400 |
58 75 74 |
4.0 |
2398 |
|
SN500-M6
SN500-N6
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(L/S) |
|||||||||
|
SN500-M6 |
860 |
1212 2020 2424 |
336.7 561.1 673.3 |
108 100 92 |
990 |
488.3 662.8 778.6 |
800 |
73 83 78 |
5.0 |
2408 |
|
834 |
1176 1959 2351 |
326.6 544.3 653.1 |
101 93 85 |
990 |
455.4 613.7 706.9 |
710 |
71 81 77 |
4.9 |
2406 |
|
|
791 |
1115 1858 2230 |
309.7 516.2 619.5 |
92 84 77 |
990 |
404.9 536.9 615.3 |
630 |
69 79 76 |
4.7 |
2404 |
|
|
757 |
1067 1778 2133 |
296.3 493.8 592.5 |
85 77 70 |
990 |
368.5 482.1 542.2 |
560 |
67 77 75 |
4.6 |
2402 |
|
|
705 |
994 1656 1988 |
276.1 460.1 552.1 |
75 67 60 |
990 |
312.3 400.4 438.9 |
450 |
65 75 74 |
4.4 |
2400 |
|
|
SN500-N6 |
860 |
1028 1714 2057 |
285.7 476.1 571.3 |
103 95 88 |
990 |
439.1 534.3 628.4 |
630 |
66 83 78 |
4.5 |
2406 |
|
817 |
977 1628 1954 |
277.1 461.8 554.2 |
94 86 80 |
990 |
392.6 469.4 552.9 |
560 |
64 81 77 |
4.4 |
2404 |
|
|
783 |
936 1560 1872 |
268.5 447.6 537.1 |
87 79 72 |
990 |
359.4 423.0 482.9 |
500 |
62 79 76 |
4.3 |
2402 |
|
|
748 |
895 1491 1789 |
255.7 426.1 511.4 |
80 72 65 |
990 |
326.5 379.2 422.3 |
450 |
60 77 75 |
4.1 |
2400 |
|
|
705 |
843 1406 1687 |
245.7 409.5 491.4 |
72 64 57 |
990 |
286.6 326.0 353.8 |
400 |
58 75 74 |
4.0 |
2398 |
|
SN500-M9
SN500-N9
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(LS) |
|||||||||
|
SN500-M9 |
675 |
1212 2020 2424 |
336.7 561.1 673.3 |
68 60 55 |
990 |
287.7 381.3 437.4 |
450 |
78 86 83 |
5.0 |
2248 |
|
648 |
1164 1939 2327 |
323.2 538.7 646.4 |
63 55 49 |
990 |
266.2 349.5 388.2 |
400 |
75 83 80 |
4.8 |
2246 |
|
|
621 |
1115 1858 2230 |
309.7 516.2 619.5 |
58 50 44 |
990 |
244.6 319.2 347.0 |
355 |
72 80 77 |
4.7 |
2244 |
|
|
587 |
1054 1757 2109 |
292.9 488.2 585.8 |
53 45 39 |
990 |
217.4 276.8 298.6 |
315 |
70 78 75 |
4.5 |
2242 |
|
|
554 |
994 1656 1988 |
276.1 460.1 552.1 |
49 40 34 |
990 |
195.0 237.9 252.1 |
280 |
68 76 73 |
4.4 |
2240 |
|
|
SN500-N9 |
675 |
1028 1714 2057 |
285.7 476.1 571.3 |
66 58 52 |
990 |
262.6 313.1 354.5 |
355 |
70 86 82 |
4.5 |
2246 |
|
647 |
987 1645 1975 |
274.2 457.1 548.5 |
60 52 46 |
990 |
240.1 280.7 312.4 |
315 |
67 83 79 |
4.3 |
2244 |
|
|
613 |
936 1560 1872 |
265.7 442.8 531.3 |
55 47 41 |
990 |
216.4 249.6 274.4 |
280 |
64 80 76 |
4.3 |
2242 |
|
|
587 |
895 1491 1789 |
257.1 428.5 514.2 |
52 44 38 |
990 |
203.7 227.4 249.7 |
250 |
62 78 74 |
4.2 |
2240 |
|
|
574 |
874 1457 1748 |
242.8 404.7 485.6 |
50 42 36 |
990 |
197.7 217.6 237.5 |
250 |
60 76 72 |
4.0 |
2238 |
|
SN500-M13
SN500-N13
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 "Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(LS) |
|||||||||
|
SN500-M13 |
530 |
1212 2020 2424 |
336.7 561.1 673.3 |
46 36 29 |
990 |
194.7 225.0 227.9 |
280 |
78 88 84 |
5.0 |
2220 |
|
519 |
1188 1980 2376 |
329.9 549.9 659.9 |
44 34 27 |
990 |
183.4 210.4 210.4 |
250 |
77 87 83 |
4.9 |
2218 |
|
|
498 |
1139 1899 2279 |
316.5 527.4 632.9 |
40 31 24 |
990 |
164.0 187.9 181.6 |
220 |
76 86 82 |
4.8 |
2216 |
|
|
477 |
1091 1818 2182 |
303.0 505.0 606.0 |
37 29 23 |
975 |
145.9 166.8 168.7 |
185 |
85 81 |
4.6 |
2214 |
|
|
461 |
1054 1757 2109 |
292.9 488.2 585.8 |
34 27 21 |
975 |
133.5 152.5 150.8 |
185 |
74 84 80 |
4.5 |
2212 |
|
|
440 |
1006 1677 2012 |
279.4 465.7 558.9 |
31 24 19 |
990 |
117.5 134.0 131.8 |
160 |
73 83 79 |
4.4 |
2210 |
|
|
SN500-N13 |
530 |
1028 1714 2057 |
285.7 476.1 571.3 |
45 35 28 |
990 |
177.6 184.8 191.4 |
220 |
70 88 83 |
4.5 |
2218 |
|
504 |
977 1628 1954 |
274.2 457.1 548.5 |
40 31 26 |
990 |
156.8 162.1 168.2 |
185 |
68 86 81 |
4.3 |
2216 |
|
|
477 |
926 1543 1851 |
257.1 428.5 514.2 |
36 28 23 |
990 |
137.3 141.1 146.6 |
160 |
66 84 79 |
4.2 |
2214 |
|
|
440 |
854 1423 1707 |
237.1 395.2 474.2 |
31 24 20 |
990 |
111.1 113.4 118.0 |
132 |
64 82 77 |
3.9 |
2212 |
|
SN500-M19
SN500-N19
|
泵型号 Pump type |
规格 Standards |
流量Capacity |
扬程 Head (m) |
转速 Speed (r/min) |
功率(KW) |
效率 Efficiency % |
(NPSH)r (m) |
泵重 Weight (kg) |
||
|
轴功率 "Shaft Power |
电机功率 Motor power |
|||||||||
|
(m³/h) |
(LS) |
|||||||||
|
SN500-M19 |
452 |
1212 2020 2424 |
336.7 561.1 673.3 |
26 23 19 |
990 |
116.5 143.8 139.5 |
185 |
73 88 88 |
5.0 |
1728 |
|
434 |
1164 1939 2327 |
323.2 538.7 646.4 |
24 20 17 |
990 |
106.0 125.8 126.2 |
160 |
71 86 86 |
4.8 |
1726 |
|
|
407 |
1091 1818 2182 |
303.0 505.0 606.0 |
21 18 15 |
990 |
89.8 106.1 106.5 |
132 |
69 84 84 |
4.6 |
1724 |
|
|
371 |
994 1656 1988 |
276.1 460.1 552.1 |
17 15 13 |
990 |
70.0 82.2 82.5 |
110 |
67 82 82 |
4.4 |
1722 |
|
|
SN500-N19 |
452 |
1028 1714 2057 |
285.7 476.1 571.3 |
25 22 18 |
990 |
106.3 118.1 117.1 |
160 |
66 88 87 |
4.5 |
1726 |
|
420 |
956 1594 1913 |
265.7 442.8 531.3 |
22 19 16 |
990 |
88.2 97.2 96.4 |
132 |
64 86 85 |
4.3 |
1724 |
|
|
389 |
884 1474 1769 |
245.7 409.5 491.4 |
18 16 13 |
990 |
72.0 78.7 78.1 |
110 |
62 84 83 |
4.0 |
1722 |
|
|
371 |
843 1406 1687 |
234.3 390.4 468.5 |
17 15 12 |
990 |
64.5 69.9 69.4 |
90 |
60 82 81 |
3.9 |
1720 |
|
Send Inquiry
